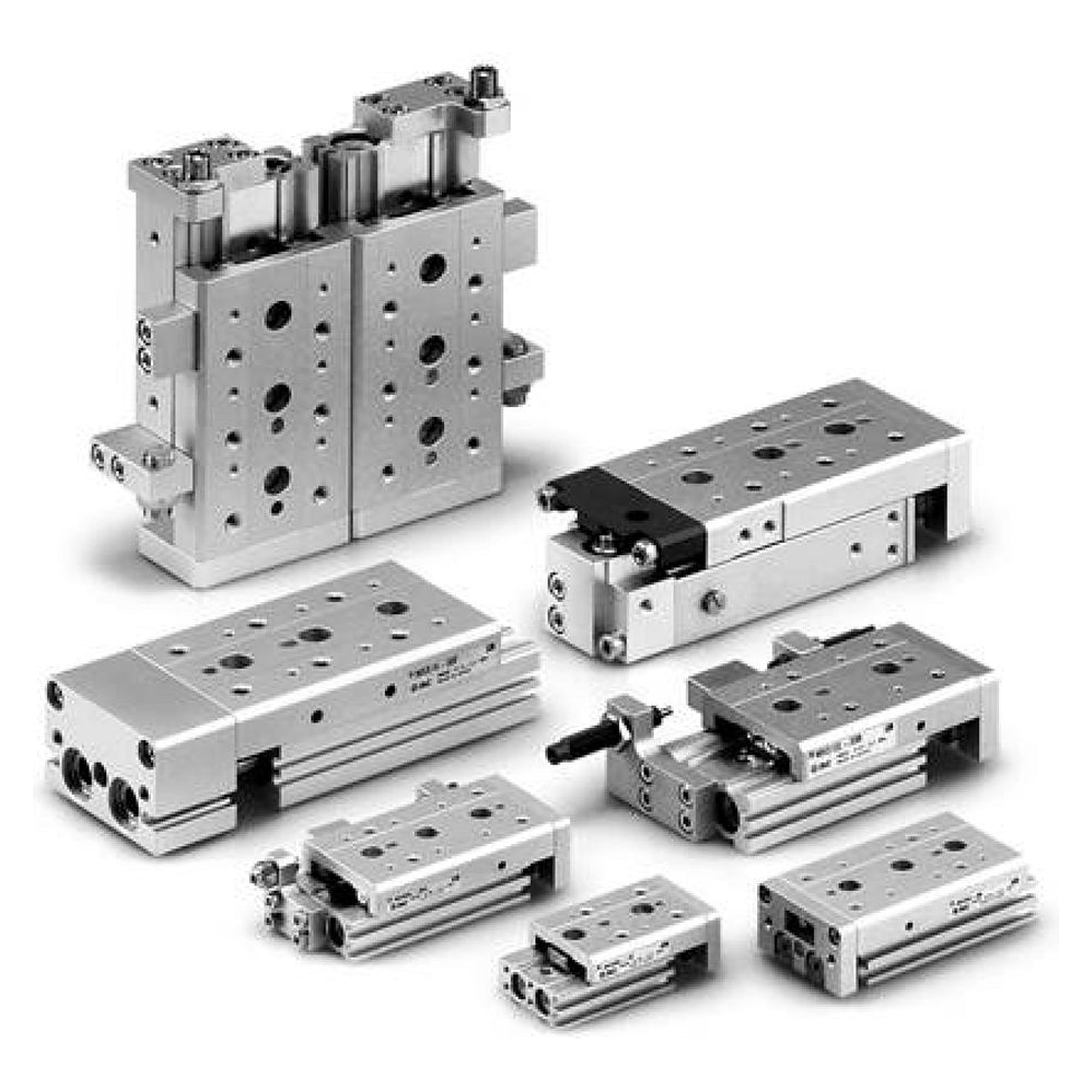

MXS, Air Slide Table, Cross Roller Guide - SMC MXS25TF-20B
Bore Size: 25mm Port Thread: TF (G) Stroke: 20mm Adjuster: B (Both Sides Absorbers) Function: Standard Auto Switch: No Switch Lead Wire or Prewired Connector: 05 M Lead Wire [Or None in the Case of No Auto Switch] Number: 2 pcs. [Or None in the Case of No Switch]
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
Applications that call for precise movement ranging from 10-150mm (1/2-6") typically require a cylinder and a precision guide. The MXS accomplishes this by integrating a cross roller bearing with a guide and two small air cylinders for compact force generation. The MXS is available in six sizes each with set stroke lengths and is standard with auto switch capability. Stroke adjustments are available for extend, retract, or both in ranges of 0-5mm, 0-15mm, and 0-25mm. In addition, there are many other standard options that include, shock absorbers, end lock, axial piping, and buffer.
Technical data
| Weight | 0.100000 |
|---|---|
| Manufacturer | SMC |
| Hersteller-Nr | MXS25TF-20B |
| Zolltarifnummer | 84123100 |
| GPSR Herstellerdaten | SMC Deutschland GmbH Boschring 13-15 DE-63329 Egelsbach www.smc.eu |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
