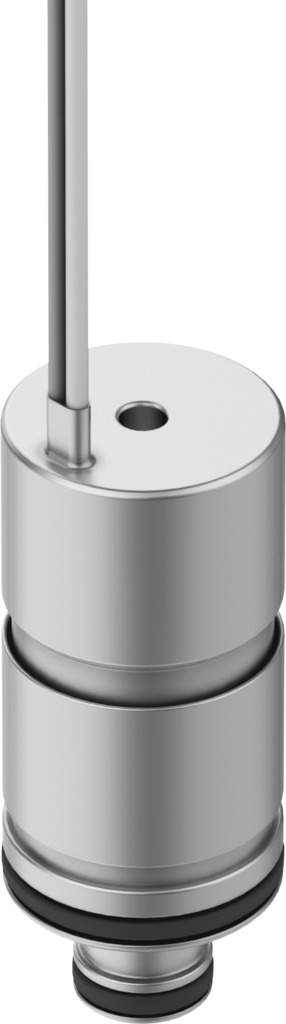

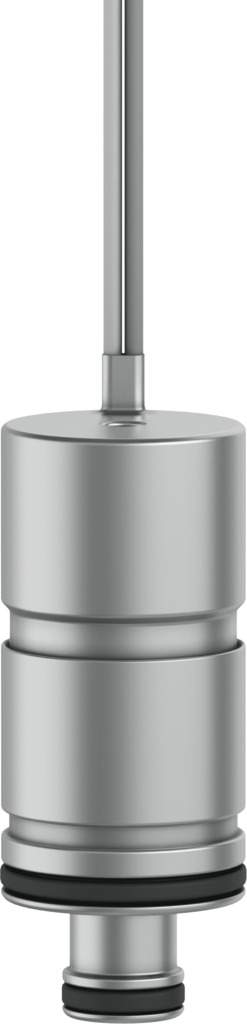

Proportional directional control valve VPWS-6-B-6-PC15-7-V - Festo 8074538
Net
excl. VAT
€295.38
Item
FES-8074538
Manufacturer no.
VPWS-6-B-6-PC15-7-V
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size | 6 mm |
|---|---|
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any |
| Design | Directly actuated poppet valve |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Flow direction | Non-reversible |
| Valve function | 2/2 proportional directional control valve, closed |
| Operating pressure | 0 ... 7 bar |
| Nominal operating pressure | 7 bar |
| Burst pressure | 21 bar |
| Standard flow rate (standardised to DIN 1343) | 270 ... 350 l/min |
| Hysteresis | 22.5 mA |
| Switching time on | 10 ms |
| Current regulating range | 0 ... 225 mA |
| Max. electrical power consumption | 3 W |
| Coil resistance R20 | 60.5 Ohm |
| Duty cycle | 100% (see operating instructions) |
| Frequency PWM control | 3 kHz |
| Voltage PWM control | 24 V |
| Note on PWM control | The permissible current range must not be exceeded when using pulse-width modulation. |
| Oxygen suitability according to standard | ISO 15001 |
| Biocompatibility according to standard | ISO 18562 |
| Maximum impurity level for hydrocarbons | 550 mg/m² |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Note on vibration resistance | Oscillation in the Z direction can lead to fluctuations in the flow rate |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Note on shock resistance | A shock in the Z-direction can lead to fluctuations in the flow rate |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Medium | Inert gases, Air, Oxygen |
| Note on the medium | Lubricated operation not possible, Maximum particle size 10 µm |
| Media temperature | 5 ... 50 °C |
| Degree of protection | IP60 |
| Note on degree of protection | In mounted state |
| Ambient temperature | 5 ... 50 °C |
| Storage temperature | -40 ... 80 °C |
| Product weight | 25 g |
| Electrical connection 1, connection type | Cable |
| Electrical connection 1, connector system | Open end |
| Electrical connection 1, number of connections/cores | 2 |
| Cable length | 0.07 ... 0.08 m |
| Type of mounting | On sub-base, Plug-in, With accessories |
| Pneumatic connection, port 1 | Cartridge 7.5 mm |
| Pneumatic connection, port 2 | Cartridge 15 mm |
| Note on materials | RoHS compliant |
| Material seals | Fluoro rubber |
| Material housing | High-alloy steel |
| Manufacturer | Festo |
| Hersteller-Nr | VPWS-6-B-6-PC15-7-V |
| EAN | 4052568616458 |
| Zolltarifnummer | 84818059 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
