Proportional directional control valve for continuous flow control, G1/8 VPWI-5-L-3-G18-6-V1-D - Festo 8167811
The VPWI-5-L-3-G18-6-V1-D proportional directional control valve converts an electrical setpoint signal into a continuously variable flow rate. Datasheet values: port G1/8, operating pressure 6 to 8 bar, valve function 3-way proportional directional control valve and operating voltage 24 V DC.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The VPWI-5-L-3-G18-6-V1-D proportional directional control valve converts an electrical setpoint signal into a continuously variable flow rate. The key values: port G1/8 and operating pressure 6 to 8 bar.
Benefits
- Operating pressure 6 to 8 bar
- Flow rate of 490 l/min (standard nominal flow rate)
- Port thread G1/8
- Valve function 3-way proportional directional control valve
- Cut-off frequency 125 Hz for fast control response
- Operation at 24 V DC
Application
The VPWI-5-L-3-G18-6-V1-D is used in control loops where switching valves would be too coarse. Permissible operating medium for VPWI-5-L-3-G18-6-V1-D: compressed air to ISO 8573-1:2010 [7:4:4], inert gases.
Technical data
| Type | VPWI-5-L-3-G18-6-V1-D |
|---|---|
| Festo part number | 8167811 |
| Actuation type | electrical |
| Sealing principle | soft |
| Mounting position | any |
| Design | poppet valve with return spring |
| Reset method | mechanical spring |
| Dimensions W x L x H | 42.2 mm x 95.3 mm x 94.3 mm |
| Safety note | Fail-safe position VPWI, normally closed |
| Pilot type | direct |
| Flow direction | non-reversible |
| Nominal size, supply | 5 mm |
| Nominal size, exhaust | 5 mm |
| Total leakage | 5 l/h |
| Display type | TFT colour |
| Display size | 1.77" |
| Display resolution | 128x160 pixels |

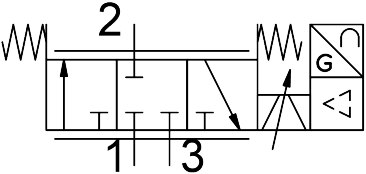

| Valve function | 3-way proportional directional control valve |
| Reverse polarity protection | for all electrical connections |
| Short-circuit proof | for all electrical connections |
| Max. cable length | 30 m |
| Setpoint input | 0 - 10 V |
| Input resistance | 100 kOhm |
| Switching output | push-pull |
| Max. output current | 25 mA |
| Analogue output signal range | 0 - 10 V |
| Min. load resistance, voltage output | 2 kOhm |
| Analogue output accuracy in ± %FS | 1 %FS |
| Operating pressure | 6 to 8 bar |
| Inlet pressure 1 | 0 to 13 bar |
| Burst pressure | 40 bar |
| C value | 2.1 l/sbar |
| Standard nominal flow rate (to DIN 1343) | 490 l/min |
| Standard nominal flow rate 2-3 | 340 l/min |
| Cut-off frequency | 125 Hz |
| Switching time on | 8 ms |
| Switching time off | 8 ms |
| Hysteresis | 0.3 %FS |
| Temperature coefficient | 0.02 %/K |
| Nominal operating voltage DC | 24 V |
| Operating voltage range DC | 21.6 to 27.6 V |
| Nominal current | 0.17 A |
| Max. current consumption | 525 mA |
| Max. electrical power consumption | 14.5 W |
| Approval | RCM, c UL us - Listed (Oil) |
| CE marking (see declaration of conformity) | to EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | to UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Operating medium | compressed air to ISO 8573-1:2010 [7:4:4], inert gases |
| Note on operating and pilot medium | lubricated operation not possible |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| PWIS conformity | VDMA24364-B1/B2-L |
| Medium temperature | 0 to 50 °C |
| Degree of protection | IP65 |
| Pollution degree | 2 |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Climatic category | 3K3 according to EN 60721 |
| Relative humidity | non-condensing |
| Nominal altitude of use | less than 3000 m NHN |
| Sound power level | 62.5 dB(A) |
| Sound power level at 1 m distance | 51.9 dB(A) |
| Application note | The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas. |
| Product weight | 370 g |
| Repeatability FS | 0.3 % |
| Electrical connection 1, function | Actual value output, Setpoint input, Power supply |
| Electrical connection 1, connection type | plug |
| Electrical connection 1, connection technology | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of pins/wires | 5 |
| Electrical connection 1, pin allocation | 00995383 |
| Electrical connection 1, tightening torque | 1.5 Nm |
| Mounting type | with through-hole for M4 screw, with DIN rail |
| Pneumatic port 1 | G1/8 |
| Pneumatic port 2 | G1/8 |
| Pneumatic port 3 | G1/8 |
| Max. tightening torque, fitting | 8.5 Nm |
| Food suitability | see supplementary material information |
| Note on materials | RoHS-compliant |
| Cover material | PA, reinforced |
| Seal material | HNBR, PTFE |
| Housing material | PA, reinforced |
| Weight | 0.49 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPWI-5-L-3-G18-6-V1-D |
| EAN | 4052568636852 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Medium | Compressed air |
| Flow rate [l/min] | 490 |
| Operating voltage | 24 V DC |
| Betriebsdruck max [bar] | 8 |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
