Proportional pressure regulator 0.4 to 40 bar 0 - 10 V VPPL-3Q-3-0L40H-V1-A-S1-1 - Festo 1635973
Electrically adjustable pressure from 0.4 to 40 bar: proportional pressure regulator VPPL-3Q-3-0L40H-V1-A-S1-1 with 0 - 10 V setpoint. Standard nominal flow rate 245 l/min, flange connection, max. pressure hysteresis 0.4 bar and degree of protection IP65. Genuine Festo part 1635973.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description

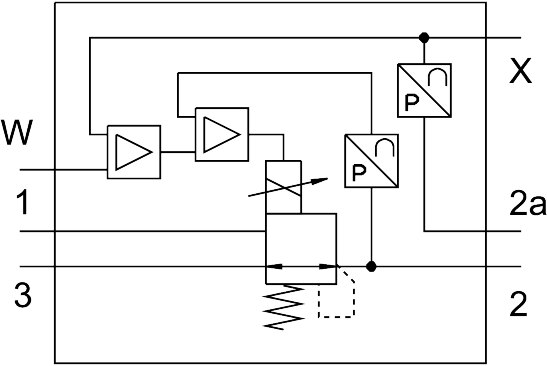

With the VPPL-3Q-3-0L40H-V1-A-S1-1 the pressure is specified by a 0 - 10 V analogue signal, the regulation range extends from 0.4 to 40 bar. With a standard nominal flow rate of 245 l/min, it is connected via flange. Design: directly actuated piston regulator.
Benefits at a glance
- Repeatable results: linearity 1 %FS, repeatability 1 %FS
- Fine pressure control: max. pressure hysteresis 0.4 bar
- Air capacity: standard nominal flow rate 245 l/min
- Actual value feedback to the controller via analogue output 4 - 20 mA
- Defined safety position: if the power supply cable is interrupted, the output pressure drops to 0 bar
- For harsh environments: degree of protection IP65, corrosion resistance class CRC 2
Operating conditions
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting position of the VPPL-3Q-3-0L40H-V1-A-S1-1: any, preferably upright, mounting: with through-hole. Permissible ambient temperature 5 to 50 °C. The VPPL-3Q-3-0L40H-V1-A-S1-1 is connected electrically via plug connector, M12, 5-pin, A-coded.
Technical data
| Type | VPPL-3Q-3-0L40H-V1-A-S1-1 |
|---|---|
| Festo part number | 1635973 |
| Nominal size, supply | 3 mm |
| Nominal size, exhaust | 3 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Mounting position | Any, Preferably upright |
| Design | Directly actuated piston regulator |
| Short circuit current rating | No |
| Max. cable length | 30 M |
| Safety instructions | Safety position VPPL: if the power supply cable is interrupted, the output pressure drops to 0 bar. |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Type of piloting | Direct |
| Valve function | 3-way proportional-pressure regulator, closed |
| Display type | LED indicator |
| Operating pressure | 50 bar |
| Pressure regulation range | 0.4 to 40 bar |
| Inlet pressure 1 | 0 to 50 bar |
| Max. pressure hysteresis | 0.4 bar |
| b value | 0.25 |
| C value | 0.8 l/sbar |
| Standard nominal flow rate (standardised to DIN 1343) | 245 l/min |
| Standard nominal flow rate 2-3 | 282 l/min |
| Switching time off | 654 ms |
| Switching time on | 428 ms |
| Operational voltage range DC | 21.6 to 27.6 V |
| Duty cycle | 100% |
| Max. electrical power consumption | 26.7 W |
| Residual ripple | 10% |
| Signal range analogue output | 4 - 20 mA |
| Signal range analogue input | 0 - 10 V |
| SETPOINT/ACTUAL values | Voltage type 0 - 10 V |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | 5 to 50 °C |
| Degree of protection | IP65 |
| Ambient temperature | 5 to 50 °C |
| Storage temperature | -10 to 60 °C |
| Product weight | 1100 g |
| Linearity error in ± %FS | 1 %FS |
| Total accuracy | 1.5 %FS |
| Temperature coefficient | 0.04 %/K |
| Repetition accuracy in ± %FS | 1 %FS |
| Electrical connection diagnostics interface | Socket, M12, 5-pin, A-coded |
| Electrical connection, IN | Plug connector, M12, 5-pin, A-coded |
| Electrical connection, OUT | Plug connector, M12, 5-pin, A-coded |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | Flange |
| Pneumatic connection, port 2 | Flange |
| Pneumatic connection, port 3 | Flange |
| Note on materials | RoHS compliant |
| Material housing | Anodised wrought aluminium alloy |
| Weight | 1.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPPL-3Q-3-0L40H-V1-A-S1-1 |
| EAN | 4052568263713 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Medium | Compressed air, neutral gases |
| Function | 3-way proportional pressure regulating valve closed |
| Inlet pressure max. [bar] | 50 |
| Actuation type | Electrical |
| Druckregelbereich [bar] | 0,4 bis 40 |
| Medientemperatur [°C] | 5 bis 50 |
| Betriebsdruck max [bar] | 50 |
| Pneumatic connection | Flange |
| Protection rating | IP65 |
| Temperature (max.) | 50 |
