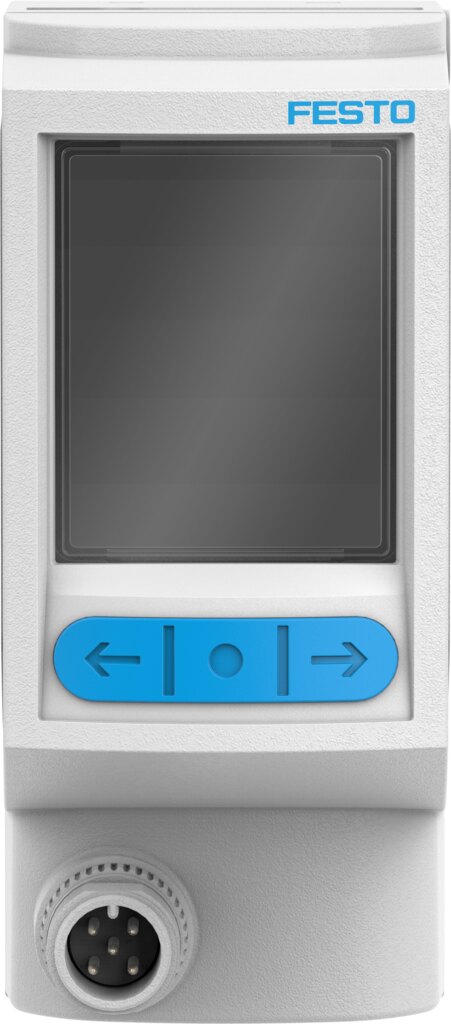

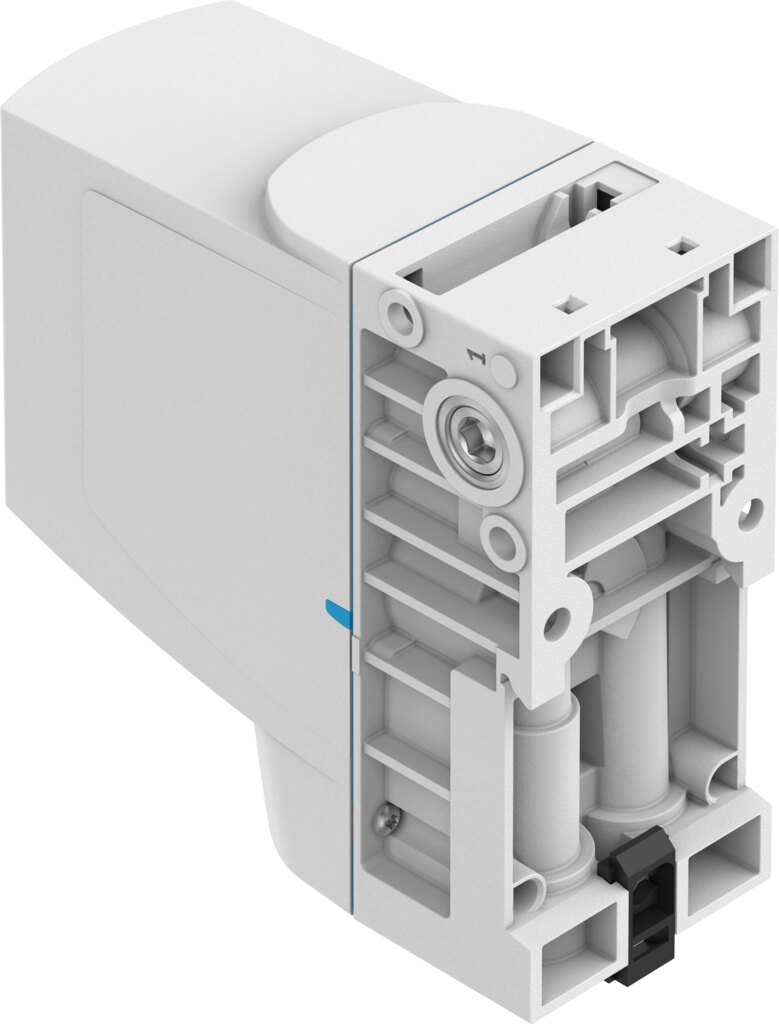

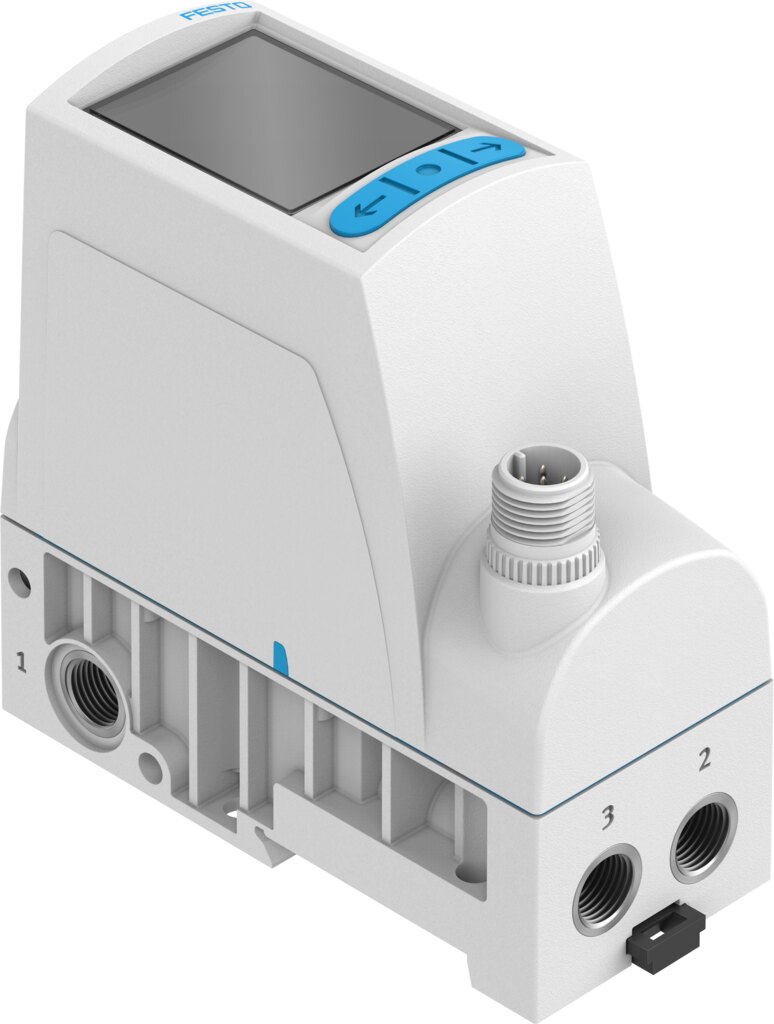

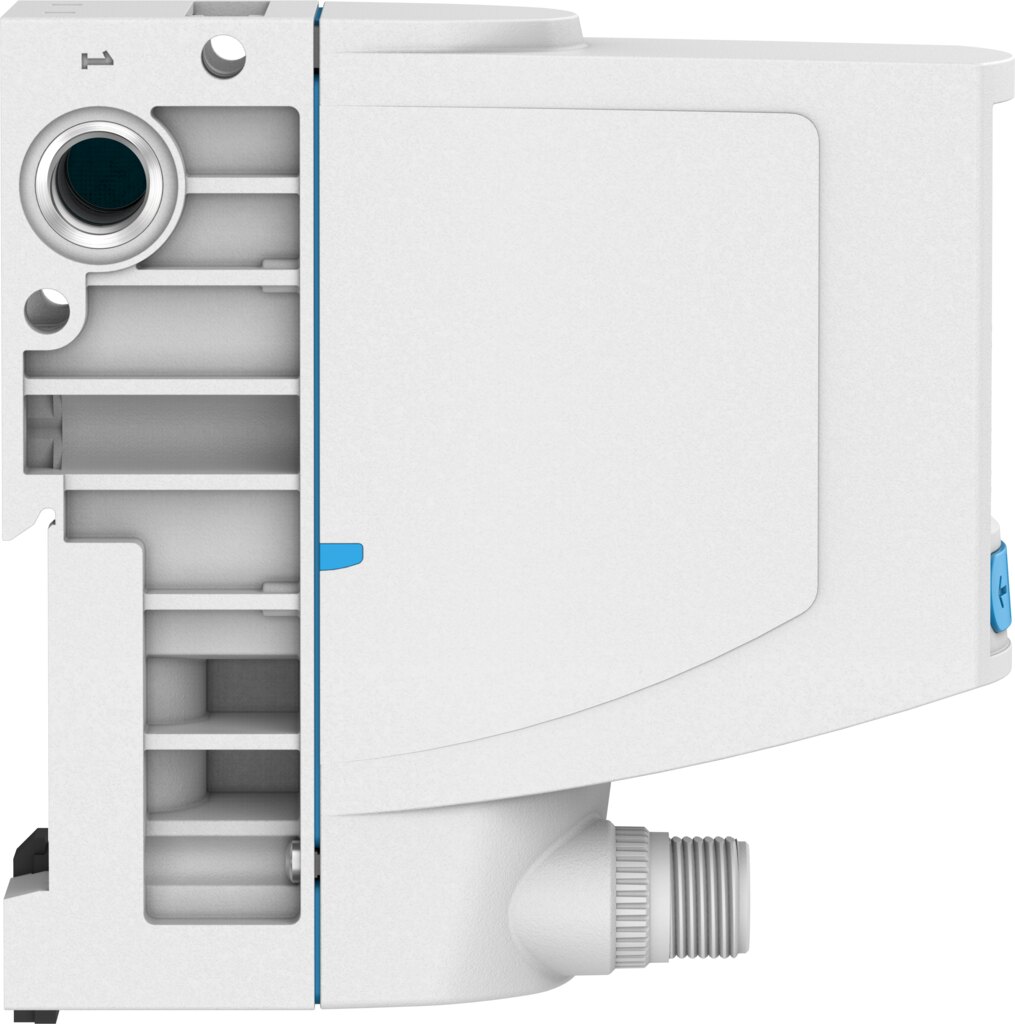

Proportional-pressure regulator VPPI-5L-3-G18-0L10H-A4-S1D - Festo 8104670
Net
excl. VAT
€764.39
Item
FES-8104670
Manufacturer no.
VPPI-5L-3-G18-0L10H-A4-S1D
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Nominal size, supply | 5 mm |
|---|---|
| Nominal size, exhaust | 5 mm |
| Type of actuation | Electrical |
| Sealing principle | Soft |
| Total leakage | 5 l/h |
| Flow direction | Non-reversible |
| Mounting position | Any |
| Design | Poppet valve with spring return |
| Short circuit current rating | For all electrical connections |
| Max. cable length | 30 M |
| Setpoint value input | 4 - 20 mA |
| Input resistance | 0.3 kOhm |
| Safety instructions | Safety position VPPI, normally closed |
| Reverse polarity protection | For all electrical connections |
| Type of reset | Mechanical spring |
| Dimensions (W x L x H) | 42.2 mm x 95.3 mm x 94.3 mm |
| Type of piloting | Direct |
| Valve function | 3-way proportional pressure regulator |
| Display type | TFT colour |
| Display size | 1.77" |
| Display resolution | 128x160 pixels |
| Operating pressure | 10 ... 12 bar |
| Pressure regulation range | 0 ... 10 bar |
| Inlet pressure 1 | 0 ... 13 bar |
| Burst pressure | 40 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 1400 l/min |
| Standard nominal flow rate 2-3 | 750 l/min |
| Operational voltage range DC | 21.6 ... 27.6 V |
| Nominal current | 0.15 A |
| Max. current consumption | 525 mA |
| Max. electrical power consumption | 14.5 W |
| Nominal operating voltage DC | 24 V |
| Signal range analogue output | 4 - 20 mA |
| Max. load resistance current output | 500 Ohm |
| Accuracy analogue output in ± %FS | 1 %FS |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Approval | RCM, c UL us - Listed (Oil) |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Certificate issuing authority | UL E322346 |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 4 according to ISO 14644-1 |
| Suitable for use with food | See supplementary material information |
| Media temperature | 0 ... 50 °C |
| Degree of protection | IP65 |
| Pollution degree | 2 |
| Ambient temperature | 0 ... 50 °C |
| Storage temperature | -20 ... 70 °C |
| Climatic category | 3K3 according to EN 60721 |
| Relative air humidity | Non-condensing |
| Nominal altitude of use | < 3000 m NHN |
| Instructions on use | The product is suitable for industrial purposes only. Measures to eliminate radio interference may be required in residential areas. |
| Sound power level | 62.5 dB(A) |
| Sound power level at a distance of 1 m | 51.9 dB(A) |
| Product weight | 370 g |
| Linearity | 0.9 %FS |
| Hysteresis | 0.4 %FS |
| Reproducibility | 0.4 %FS |
| Total accuracy | 1.1 %FS |
| Temperature cooefficient | 0.02 %/K |
| Electrical connection 1, function | Actual value output, Setpoint input, Power supply |
| Electrical connection 1, connection type | Plug |
| Electrical connection 1, connector system | M12x1, A-coded to EN 61076-2-101 |
| Electrical connection 1, number of connections/cores | 5 |
| Electrical connection 1, connection pattern | 00995383 |
| Electrical connection 1, tightening torque | 1.5 Nm |
| Type of mounting | Via through-hole for M4 screw, via DIN rail |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Max. tightening torque for fitting | 8.5 Nm |
| Note on materials | RoHS compliant |
| Material housing | Reinforced PA |
| Material seals | HNBR, PTFE |
| Weight | 0.5 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VPPI-5L-3-G18-0L10H-A4-S1D |
| EAN | 4052568459673 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
Customers Who Bought This Item Also Bought
Festo
Proportional-pressure regulator VPPM-8L-L-1-G14-0L10H-A4P-S1C1 - Festo 571290
Item FES-571290
€801.85
Festo
Proportional-pressure regulator VPPM-6L-L-1-G18-0.5L3H-A4P-S1 - Festo 575805
Item FES-575805
€547.33
Festo
Proportional-pressure regulator VPPM-6L-L-1-G18-0L2H-V1N - Festo 542233
Item FES-542233
€497.00
Festo

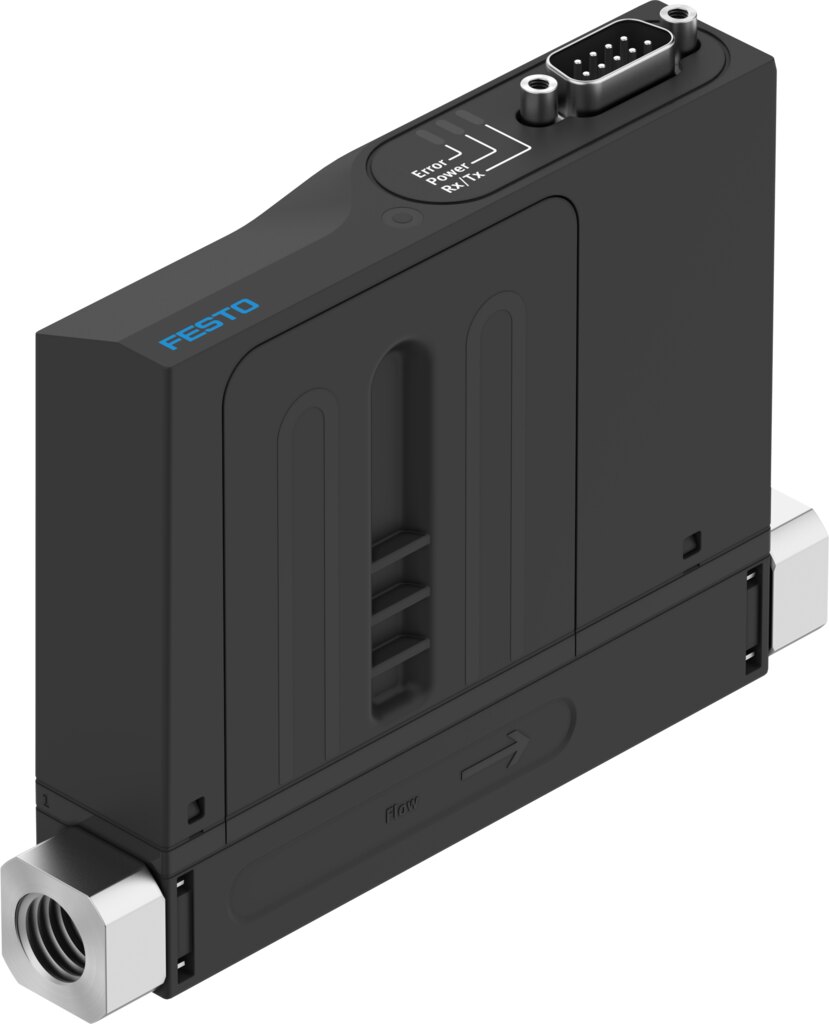

Mass flow controller (MFC) VEFC-L-6-200-D31-G14-G14-MRM1 - Festo 8204587
