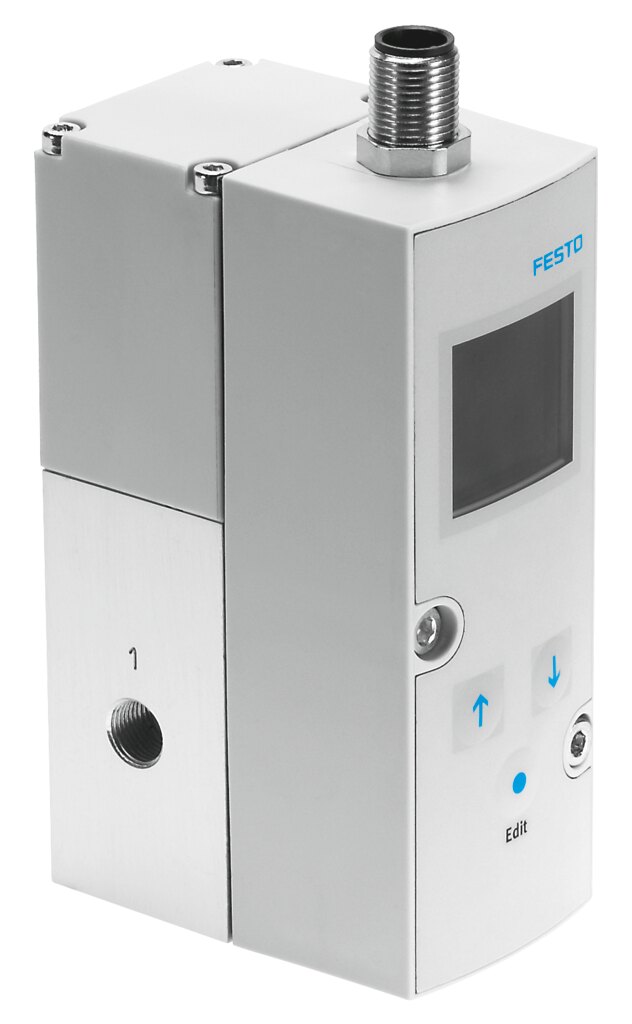

Proportional pressure regulator 0.06 to 6 bar G1/8 VPPE-3-1-1/8-6-010-E1T - Festo 567539

Festo ✓ Original product Brand new

Proportional pressure regulator for electrical pressure setting in the range 0.06 to 6 bar, setpoint 0 - 10 V. Standard nominal flow rate 800 l/min, port G1/8, max. pressure hysteresis 0.03 bar and degree of protection IP65. Genuine Festo part 567539.

Net
€430.04
excl. VAT
Item FES-567539
Manufacturer no. VPPE-3-1-1/8-6-010-E1T
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The Festo VPPE-3-1-1/8-6-010-E1T regulates the output pressure in proportion to the 0 - 10 V setpoint, pressure regulation range 0.06 to 6 bar. With a standard nominal flow rate of 800 l/min, it is connected via G1/8. Design: piloted diaphragm regulator.

Benefits

  • Fine pressure control: max. pressure hysteresis 0.03 bar
  • Repeatable results: linearity 1 %FS, repeatability 0.5 %FS
  • Air capacity: standard nominal flow rate 800 l/min
  • Actual value feedback to the controller via analogue output 0 - 10 V
  • Defined safety position: if the power supply cable is interrupted, output pressure is maintained unregulated
  • PNP switching output for limit value signals

Operating conditions

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. The VPPE-3-1-1/8-6-010-E1T is mounted with through-hole, mounting position: any, preferably upright. Permissible ambient temperature 0 to 60 °C. Electrical connection of the VPPE-3-1-1/8-6-010-E1T: 5-pin, M12, plug.

Technical data

TypeVPPE-3-1-1/8-6-010-E1T
Festo part number567539
Nominal size, supply5 mm
Nominal size, exhaust2.5 mm
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny, Preferably upright
DesignPiloted diaphragm regulator
Short circuit current ratingFor all electrical connections
Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
Reverse polarity protectionFor all electrical connections
Type of resetMechanical spring
Type of pilotingPiloted
Valve function3-way proportional pressure regulator
Display typeLED indicator, 3 digits
Pressure regulation range0.06 to 6 bar
Inlet pressure 16 to 8 bar
Max. pressure hysteresis0.03 bar
Standard nominal flow rate (standardised to DIN 1343)800 l/min
Operational voltage range DC21.6 to 26.4 V
Max. current consumption160 mA
Duty cycle100%
Max. electrical power consumption4.2 W
Residual ripple10%
Switching outputPNP
Signal range analogue output0 - 10 V
Signal range analogue input0 - 10 V
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
ApprovalRCM, c UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E322346
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Media temperature10 to 50 °C
Degree of protectionIP65
Ambient temperature0 to 60 °C
Product weight390 g
Linearity1 %FS
Hysteresis0.5 %FS
Reproducibility0.5 %FS
Total accuracy1.25 %FS
Temperature coefficient0.04 %/K
Electrical connection5-pin, M12, Plug
Type of mountingWith through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Note on materialsRoHS compliant
Material housingAnodised wrought aluminium alloy
Weight0.47 kg
ManufacturerFesto
Hersteller-NrVPPE-3-1-1/8-6-010-E1T
EAN4052568215491
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/8
Control range max. [bar]6
MediumCompressed air, neutral gases
Function3-way proportional pressure regulating valve
Flow rate [l/min]800
Actuation typeElectrical
Druckregelbereich [bar]0,06 bis 6
Medientemperatur [°C]10 bis 50
Pneumatic connectionG1/8
Protection ratingIP65
Temperaturbereich0-60 °C
Temperature (max.)60
