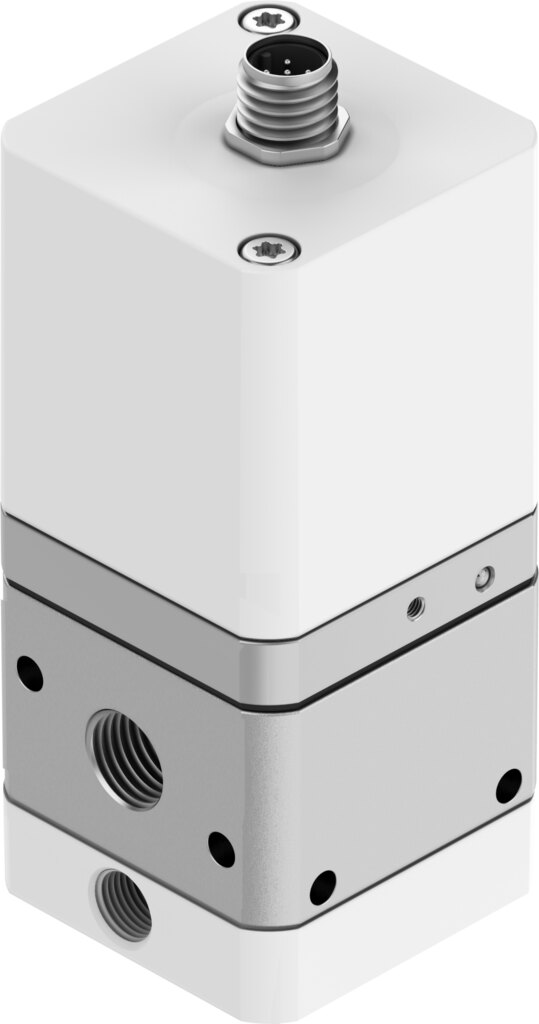

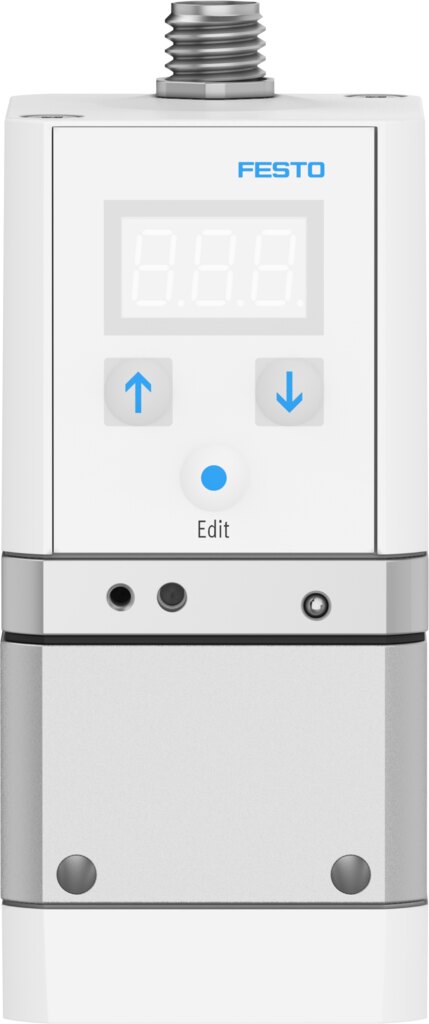

Proportional pressure regulator 0.06 to 6 bar G1/4 VPPE-3-1-1/4-6-005-E1-F1A - Festo 8181681

Festo ✓ Original product Brand new

Electrically adjustable pressure from 0.06 to 6 bar: proportional pressure regulator VPPE-3-1-1/4-6-005-E1-F1A with 0 - 5 V setpoint. Standard nominal flow rate 1700 l/min, port G1/4, max. pressure hysteresis 0.03 bar and degree of protection IP65. Genuine Festo part 8181681.

Net
€489.20
excl. VAT
Item FES-8181681
Manufacturer no. VPPE-3-1-1/4-6-005-E1-F1A
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The proportional pressure regulator VPPE-3-1-1/4-6-005-E1-F1A sets the output pressure electrically in the range 0.06 to 6 bar, specified via a 0 - 5 V setpoint signal. With a standard nominal flow rate of 1700 l/min, it is connected via G1/4. Design: piloted diaphragm regulator.

Key benefits

  • Repeatable results: linearity 1 %FS, repeatability 0.5 %FS
  • Fine pressure control: max. pressure hysteresis 0.03 bar
  • Air capacity: standard nominal flow rate 1700 l/min
  • Actual value feedback to the controller via analogue output 1 - 5 V
  • Defined safety position: if the power supply cable is interrupted, output pressure is maintained unregulated
  • PNP switching output for limit value signals

Application

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. The VPPE-3-1-1/4-6-005-E1-F1A is mounted with through-hole, mounting position: any, preferably upright. Permissible ambient temperature 0 to 60 °C. The VPPE-3-1-1/4-6-005-E1-F1A is suitable for Li-ion battery production (reduced Cu/Zn/Ni content, F1a). The VPPE-3-1-1/4-6-005-E1-F1A is connected electrically via 5-pin, M12, plug.

Technical data

TypeVPPE-3-1-1/4-6-005-E1-F1A
Festo part number8181681
Nominal size, supply5 mm
Nominal size, exhaust2.5 mm
Type of actuationElectrical
Sealing principleSoft
Mounting positionAny, Preferably upright
DesignPiloted diaphragm regulator
Short circuit current ratingFor all electrical connections
Safety instructionsSafety position VPPE: if the power supply cable is interrupted, output pressure is maintained unregulated.
Reverse polarity protectionFor all electrical connections
Type of resetMechanical spring
Type of pilotingPiloted
Valve function3-way proportional pressure regulator
Display typeLED indicator, 3 digits
Pressure regulation range0.06 to 6 bar
Inlet pressure 16 to 8 bar
Max. pressure hysteresis0.03 bar
Standard nominal flow rate (standardised to DIN 1343)1700 l/min
Operational voltage range DC21.6 to 26.4 V
Max. current consumption160 mA
Duty cycle100%
Max. electrical power consumption4.2 W
Residual ripple10%
Switching outputPNP
Signal range analogue output1 - 5 V
Signal range analogue input0 - 5 V
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
ApprovalRCM, c UL us - Listed (Oil)
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Certificate issuing authorityUL E322346
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Media temperature10 to 50 °C
Degree of protectionIP65
Ambient temperature0 to 60 °C
Product weight390 g
Linearity1 %FS
Hysteresis1 %FS
Reproducibility0.5 %FS
Total accuracy1.25 %FS
Temperature coefficient0.04 %/K
Electrical connection5-pin, M12, Plug
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/8
Note on materialsRoHS compliant
Material housingAluminium, powder-coated
ManufacturerFesto
Hersteller-NrVPPE-3-1-1/4-6-005-E1-F1A
EAN4052568779436
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
Control range max. [bar]6
MediumCompressed air, neutral gases
Function3-way proportional pressure regulating valve
Flow rate [l/min]1700
Actuation typeElectrical
Druckregelbereich [bar]0,06 bis 6
Medientemperatur [°C]10 bis 50
Pneumatic connectionG1/4
Protection ratingIP65
Temperaturbereich0-60 °C
Temperature (max.)60
