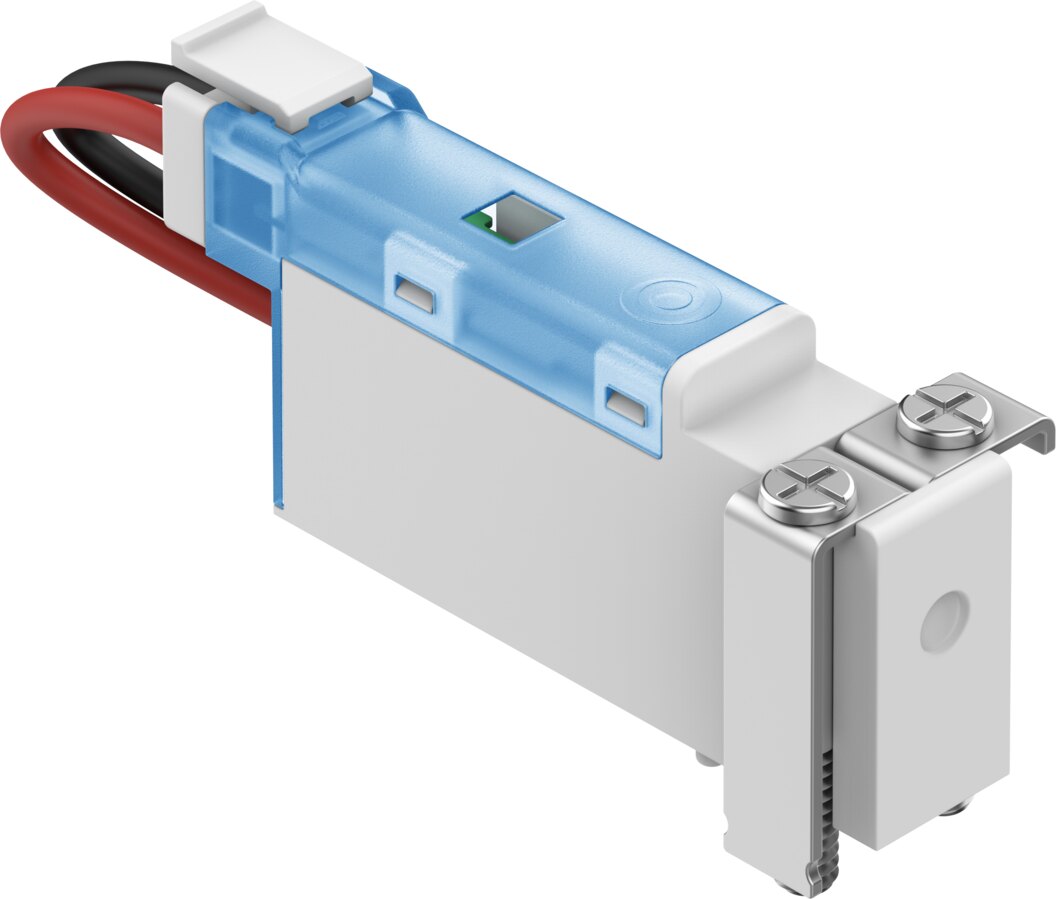

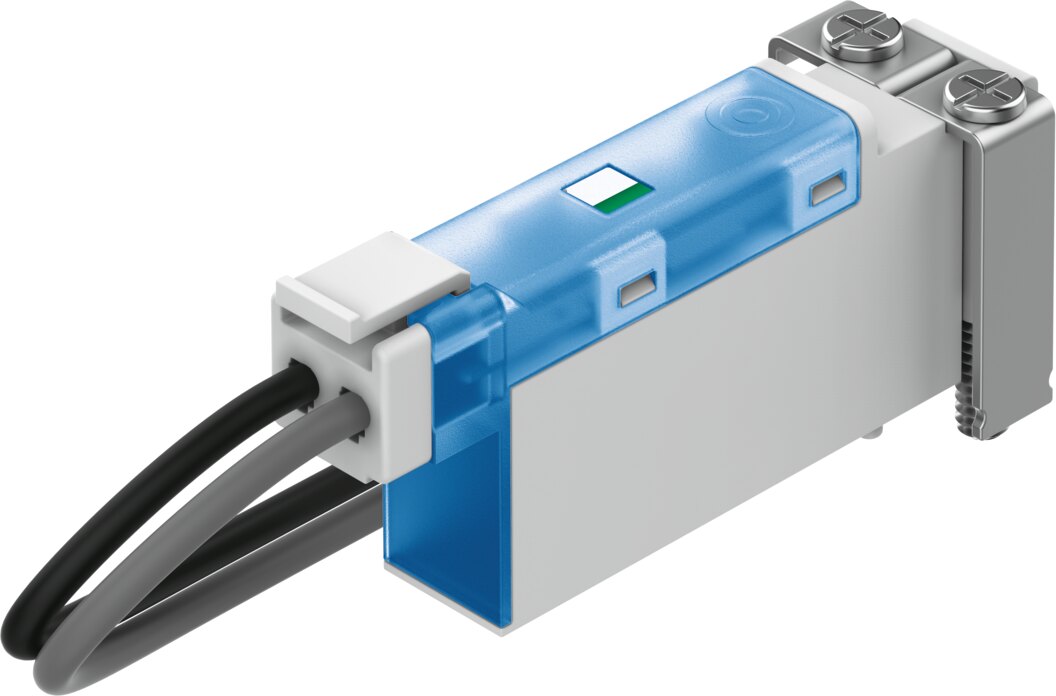

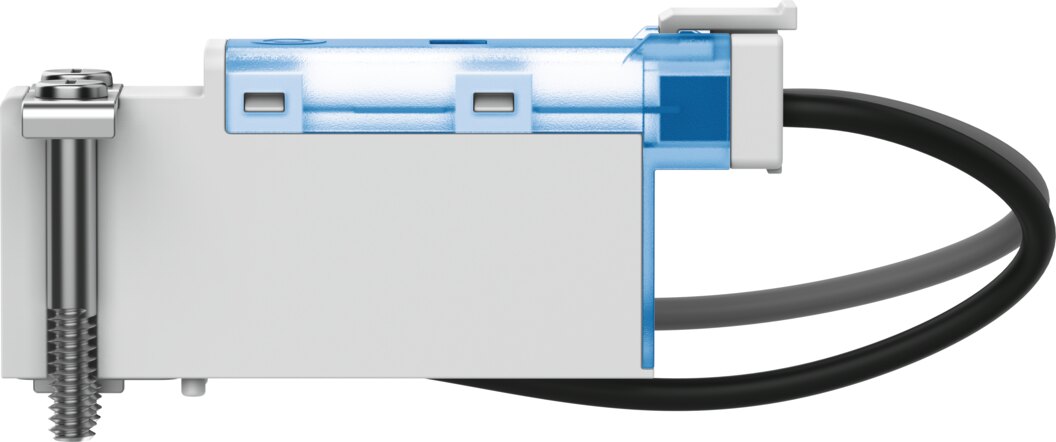

Solenoid valve VOVK-BT6-M32C-MN-5H5ZP-FB - Festo 8122777
Net
excl. VAT
€35.07
Item
FES-8122777
Manufacturer no.
VOVK-BT6-M32C-MN-5H5ZP-FB
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | 3/2-way, single solenoid, closed |
|---|---|
| Type of actuation | Electrical |
| Construction width | 5.9 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 5.5 l/min |
| pneumatic working port | Sub-base |
| Operating pressure | -1 ... 7 bar |
| Note on operating pressure | Operating pressure at port 3: -1 to 0 bar only |
| Design | Poppet valve with spring return |
| Type of reset | Mechanical spring |
| Degree of protection | IP40 |
| Nominal size | 0.36 mm |
| Exhaust-air function | Can be throttled |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | None |
| Type of piloting | Electrical |
| Flow direction | Reversible |
| Cv value | 0.006 Gal/min US |
| Max. switching frequency | 10 Hz |
| Switching time off | 6 ms |
| Note on switching time off | At –1 < p < 6 bar |
| Switching time on | 13 ms |
| Note on switching time on | <= 6 ms at 0 < p < 6 bar, <= 13 ms at -1 < p < 0 bar |
| Duty cycle | 100% within 500 h |
| Electrical power consumption | 0.5 W |
| Nominal operating voltage DC | 12 V |
| Permissible voltage fluctuations | +/-10% |
| Operating medium | Compressed air to ISO 8573-1:2010 [6:4:1] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Media temperature | 5 ... 50 °C |
| Relative air humidity | 70% |
| Note on relative air humidity | At ambient temperature |
| Ambient temperature | 5 ... 50 °C |
| Product weight | 6 g |
| Electrical connection | Cable |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | Sub-base |
| Pneumatic connection, port 3 | Sub-base |
| Note on materials | RoHS compliant |
| Material housing | PBT |
| Material spring | High-alloy stainless steel |
| Weight | 0.009 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VOVK-BT6-M32C-MN-5H5ZP-FB |
| EAN | 4052568550196 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
