T-shape vacuum generator Laval nozzle 1.4 mm vacuum 88 % VN-14-H-T4-PQ2-VQ3-RO2-F1A - Festo 8187685
With a 1.4 mm Laval nozzle, the vacuum generator VN-14-H-T4-PQ2-VQ3-RO2-F1A reaches up to 88 % vacuum at a max. suction flow of 51.6 l/min. Connections are QS-6 for compressed air and QS-8 for vacuum, at 1 to 8 bar operating pressure. Suitable for battery production with reduced Cu/Zn/Ni values (F1a).
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
6 bar nominal operating pressure, 1.4 mm Laval nozzle, design t-shape: the Festo vacuum generator VN-14-H-T4-PQ2-VQ3-RO2-F1A at a glance. Ejector characteristic: high vacuum, Standard.
Benefits
- Vacuum up to 88 %, reached at 5 bar operating pressure
- Suction flow up to 51.6 l/min against atmosphere, at 5.1 bar operating pressure
- Release time 0.5 s at nominal operating pressure 6 bar
- Sound pressure level 69 dB(A) at nominal operating pressure, open silencer
- Clean production: suitable for battery production (F1a), LABS (PWIS) conformity VDMA24364 zone III
- Product weight 36 g, grid dimension 18 mm
Applications
The high vacuum suits dense, smooth workpieces such as sheet metal, glass or plastic panels. Type of mounting: with through-hole, With accessories. Lubricated operation is not possible.
Technical data

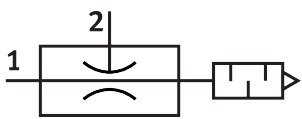

| Nominal size, Laval nozzle | 1.4 mm |
|---|---|
| Grid dimension | 18 mm |
| Silencer design | Open |
| Mounting position | Any |
| Ejector characteristic | High vacuum, Standard |
| Integrated function | Open silencer |
| Design | T-shape |
| Operating pressure for maximum suction flow rate | 5.1 bar |
| Operating pressure | 1 to 8 bar |
| Operating pressure for maximum vacuum | 5 bar |
| Maximum vacuum | 88 % |
| Nominal operating pressure | 6 bar |
| Maximum suction flow rate against atmosphere | 51.6 l/min |
| Release time at nominal operating pressure | 0.5 s |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Media temperature | 0 to 60 °C |
| Sound pressure level at nominal operating pressure | 69 dB(A) |
| Ambient temperature | 0 to 60 °C |
| Maximum tightening torque | 0.5 Nm |
| Product weight | 36 g |
| Type of mounting | With through-hole, With accessories |
| Pneumatic connection, port 1 | QS-6 |
| Pneumatic connection, port 3 | Open silencer |
| Vacuum connection | QS-8 |
| Material connecting thread | POM |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material receiver nozzle | POM |
| Material housing | Reinforced POM |
| Material silencer | Wrought aluminium alloy, POM, Polyurethane foam |
| Material transmitter nozzle | Wrought aluminium alloy |
| Weight | 0.032 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VN-14-H-T4-PQ2-VQ3-RO2-F1A |
| EAN | 4052568634759 |
| Zolltarifnummer | 84141089 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| For hose OD [mm] | 6 |
| Nominal size DN [mm] | 1,4 |
| Seal material | NBR |
| Medium | Compressed air |
| Series | VN |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | QS-6 |
| Temperaturbereich | 0-60 °C |
| Temperature (max.) | 60 |
