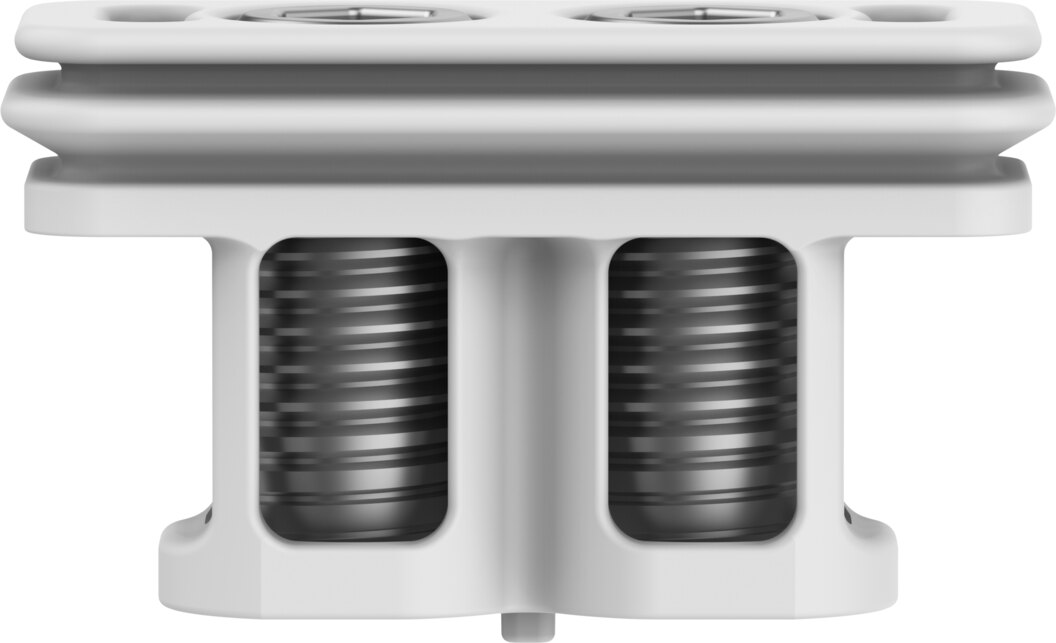

Flow control SET VMPA2-FT-NW0.3-1.7 - Festo 8129130
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Valve function | Flow control function |
|---|---|
| Pneumatic connection, port 1 | Sub-base |
| Type of mounting | Clamped |
| Standard nominal flow rate in flow control direction | 3.5 ... 115 l/min |
| Operating pressure | -0.09 ... 1 bar |
| Ambient temperature | -5 ... 60 °C |
| Size | 20 |
| Nominal size | 0.3 ... 1.7 mm |
| Mounting position | Any |
| Size of pack | 2 |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 ... 40 °C |
| Media temperature | -5 ... 60 °C |
| Product weight | 0.7 g |
| Note on materials | RoHS compliant |
| Material retaining bracket | POM |
| Material hollow bolt | Wrought aluminium alloy |
| Weight | 0.003 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA2-FT-NW0.3-1.7 |
| EAN | 4052568660352 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
