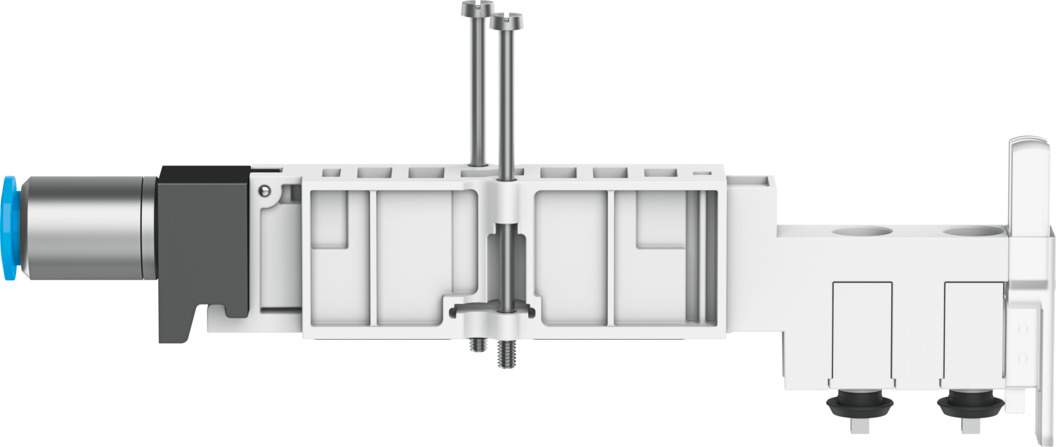

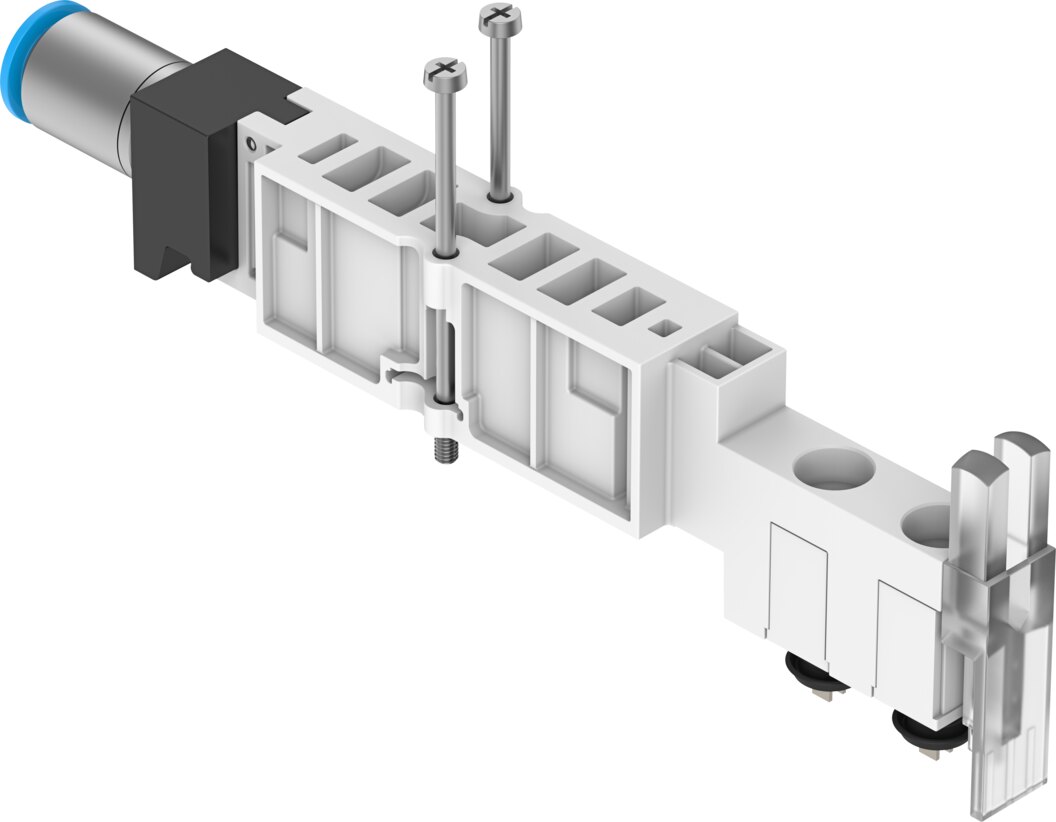

Vertical pressure supply plate VMPA14-VSP-QS8 - Festo 8110622
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Grid dimension | 14 mm |
|---|---|
| Operating pressure | -0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 50 g |
| Pneumatic connection, port 1 | QS-8 |
| Note on materials | RoHS compliant |
| Material supply plate | Reinforced PA |
| Weight | 0.1 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA14-VSP-QS8 |
| EAN | 4052568565626 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
