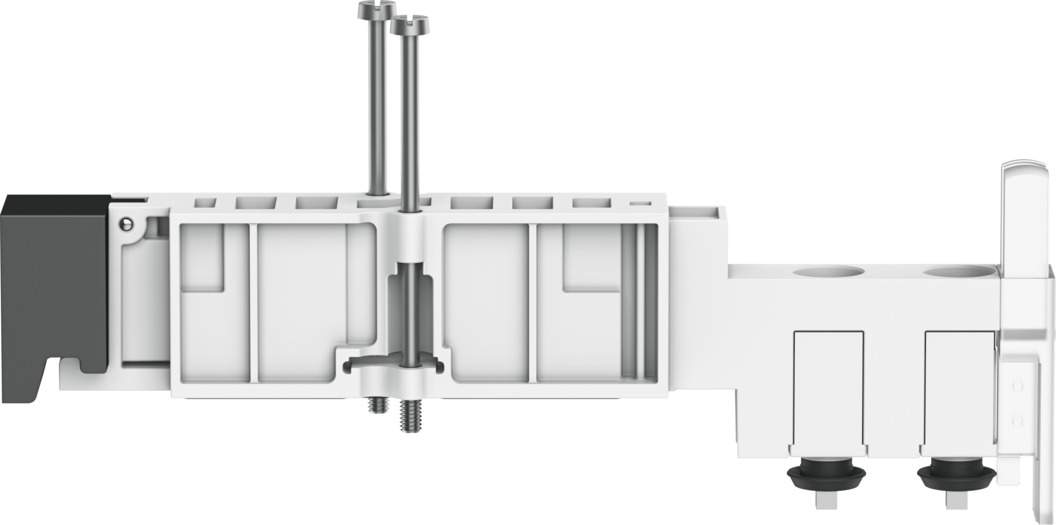

Vertical pressure supply plate VMPA14-VSP-QS5/16 - Festo 8110624
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Grid dimension | 14 mm |
|---|---|
| Operating pressure | -0.9 ... 10 bar |
| Pilot pressure | 3 ... 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 50 g |
| Pneumatic connection, port 1 | QS-5/16 |
| Note on materials | RoHS compliant |
| Material supply plate | Reinforced PA |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA14-VSP-QS5/16 |
| EAN | 4052568565640 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
Downloads
Questions about this item
Any other question?
Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
