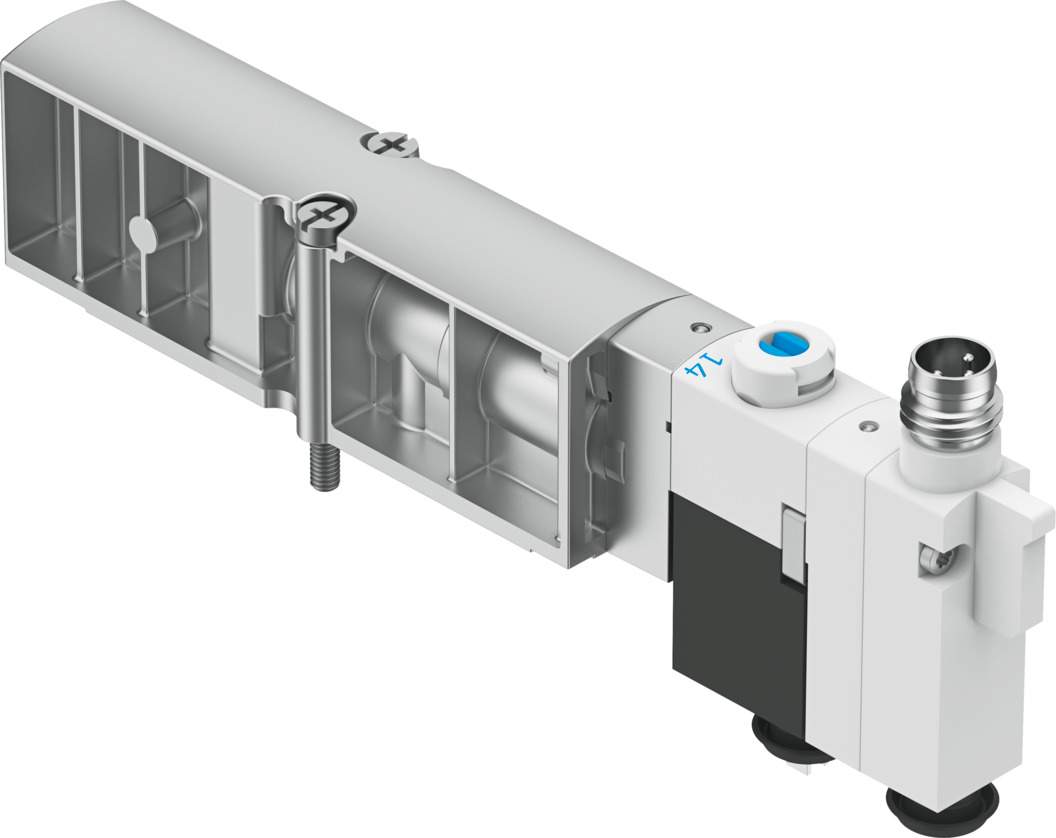

Solenoid valve VMPA14-M1H-EU-PI - Festo 8126788
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data

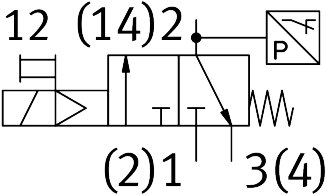

| Valve function | 3/2-way, single solenoid, closed |
|---|---|
| Type of actuation | Electrical |
| Valve size | 14 mm |
| pneumatic working port | G1/8 |
| Operating voltage | 24 V DC |
| Operating pressure | 3 ... 8 bar |
| Design | Poppet valve with spring return |
| Type of reset | Mechanical spring |
| Degree of protection | IP65, In mounted state, To IEC 60529 |
| Sealing principle | Soft |
| Mounting position | Any |
| Manual override | Detenting, Non-detenting |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Non-reversible |
| lap | Underlap |
| Signal status display | Yes |
| Pilot pressure | 3 ... 8 bar |
| Suitability for vacuum | No |
| Permissible voltage fluctuations | +/-25% |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation not possible |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 1 - Low corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 ... 60 °C |
| Media temperature | -5 ... 50 °C |
| Relative air humidity | Max. 90% at 40 °C |
| Ambient temperature | -5 ... 50 °C |
| Max. tightening torque for valve mounting | 0.25 Nm |
| Product weight | 36 g |
| Switch-off point min. | 0.05 bar |
| Switch-on point | 0.2 bar |
| Switch-on point max. | 0.3 bar |
| Type of mounting | With through-hole |
| Pilot air port 12/14 | G1/8 |
| Pilot exhaust port 82/84 | G1/8 |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 2 | Internal |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material seals | HNBR, NBR |
| Material housing | Reinforced PPA |
| Material screws | Coated steel |
| Weight | 0.04 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA14-M1H-EU-PI |
| EAN | 4052568589257 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
