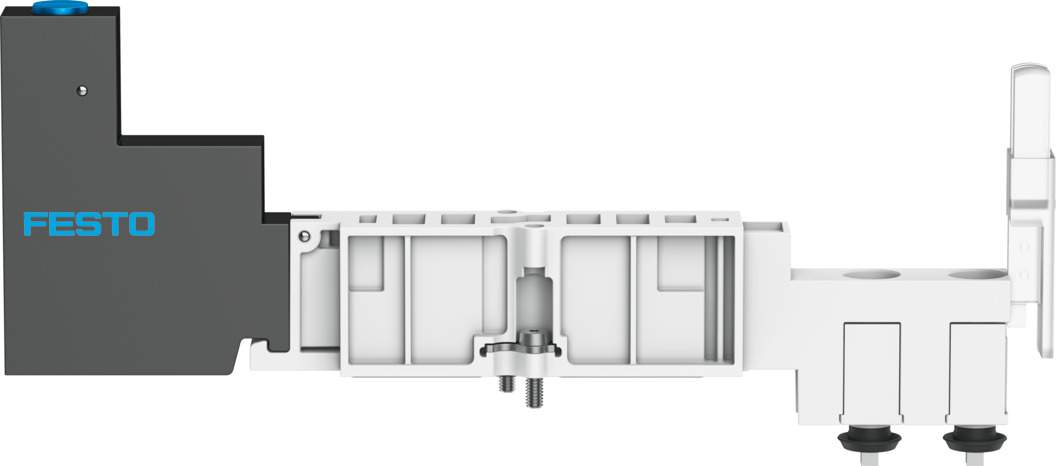

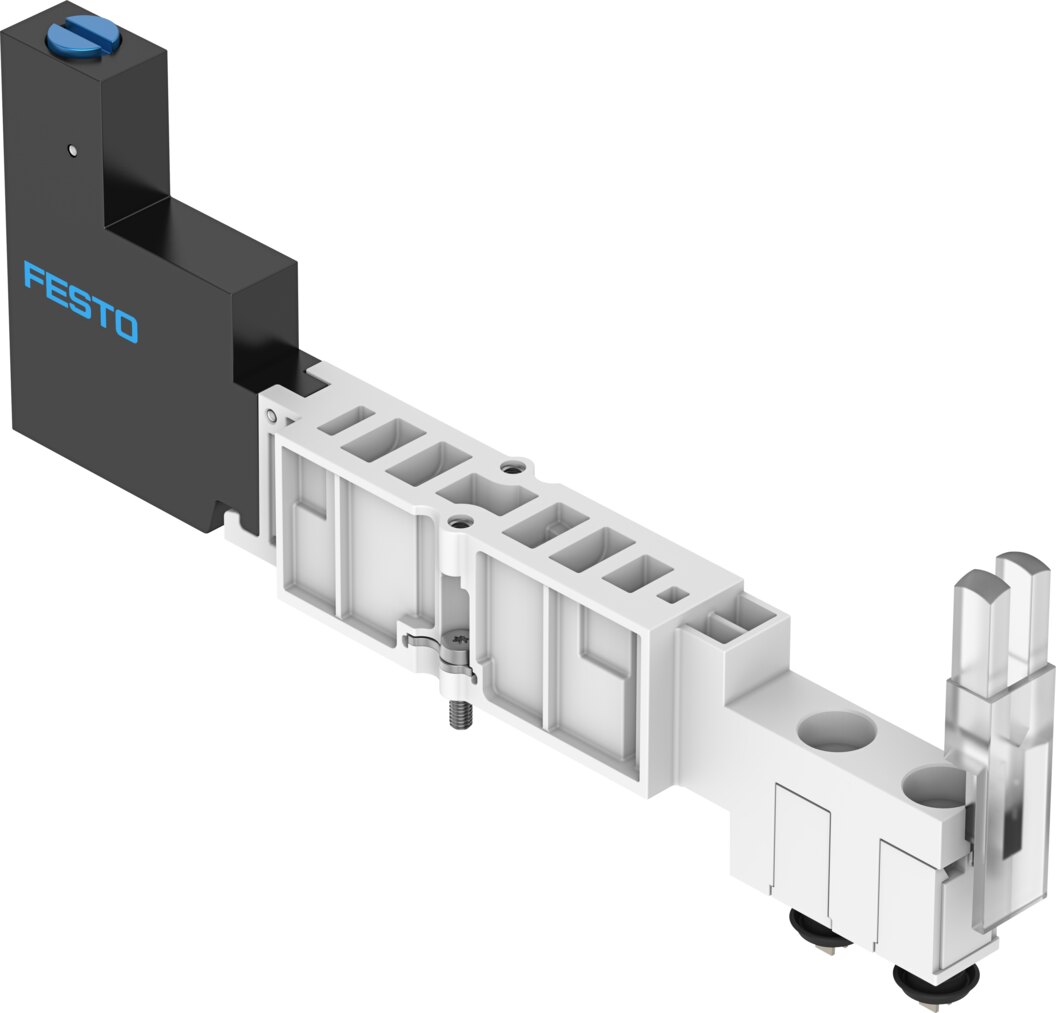

Vertical pressure shut-off plate VMPA14-HS - Festo 8110429
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Construction width | 10 mm |
|---|---|
| Mounting position | Any |

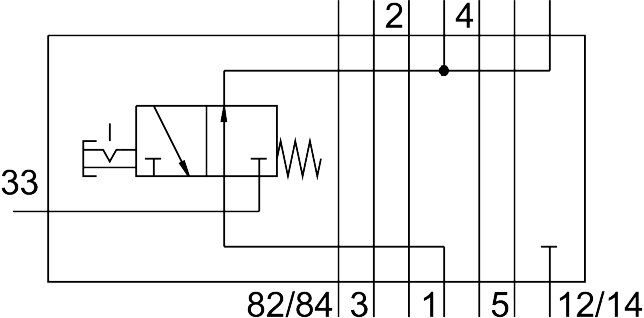

| Vertical pneumatic linkage | Shut-off for 1 |
| Operating pressure | 3 ... 8 bar |
| Standard nominal flow rate ventilation | 103 l/min |
| Standard nominal flow rate for exhaust | 213 l/min |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4] |
| Note on operating and pilot medium | Lubricated operation possible (in which case lubricated operation will always be required) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Degree of protection | IP65 |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 240 g |
| Mounting with vertical stacking | On manifold sub-base, On individual sub-base |
| Note on materials | RoHS compliant |
| Material housing | Wrought aluminium alloy, Reinforced PA |
| Weight | 0.075 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA14-HS |
| EAN | 4052568565602 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
