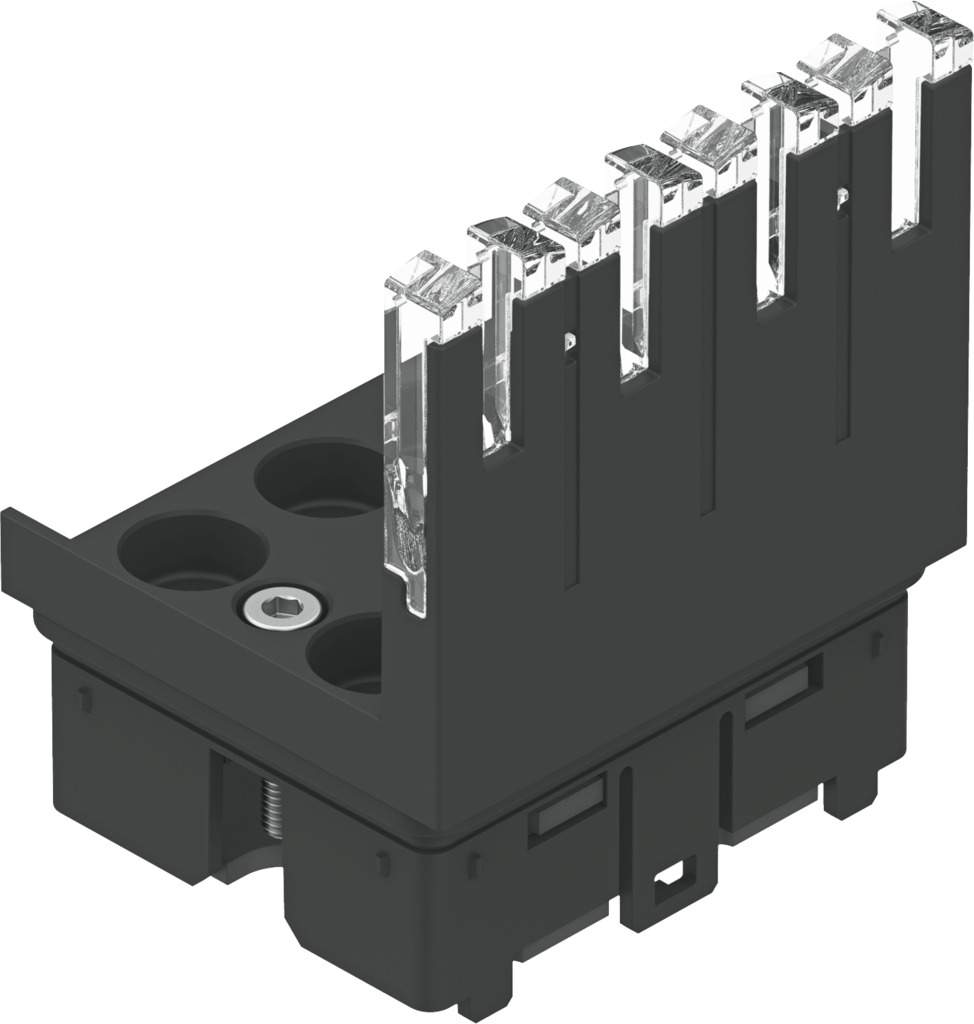

Electronics module VMPA1-FB-EMG-D2-8-S - Festo 8108545
Net
excl. VAT
€173.62
Item
FES-8108545
Manufacturer no.
VMPA1-FB-EMG-D2-8-S
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Diagnosis | Condition monitoring, Wire break per valve coil, Short circuit of valves, Undervoltage of valves, Fault in pilot pressure supply, Time measurement overflow |
|---|---|
| Max. number of valve positions | 4 |
| Max. number of valve coils | 7 |
| Parameterisation | Fail-safe per channel, Forcing per channel, Idle mode per channel, Monitoring |
| Reverse polarity protection | Yes |
| Operating voltage range DC electronics/sensors | 18 ... 30 V |
| Operating voltage DC load voltage | 18 ... 30 V |
| Internal current consumption, load voltage | 6.5 mA |
| Internal current consumption, operating voltage | 17 mA |
| Max. number of outputs | 7 |
| Max. number of inputs | 1 |
| Nominal pick-up current per solenoid coil | 58 mA to 24 ms |
| Nominal current with current reduction | 25 mA after 24 ms |
| Isolation channel - internal bus | Yes |
| Corrosion resistance class CRC | (installed) |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Ambient temperature | -5 ... 50 °C |
| Product weight | 20 g |
| Electrical control | Fieldbus |
| Material housing | POM |
| Note on materials | RoHS compliant |
| Weight | 0.037 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA1-FB-EMG-D2-8-S |
| EAN | 4052568589196 |
| Zolltarifnummer | 85371098 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
