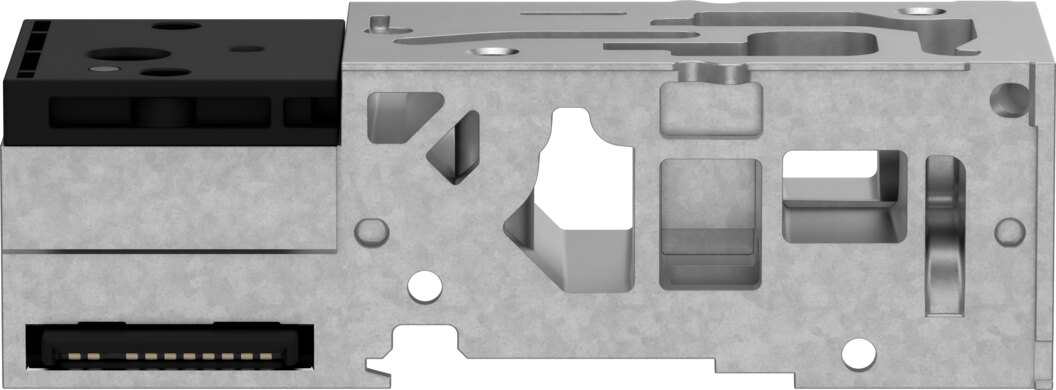

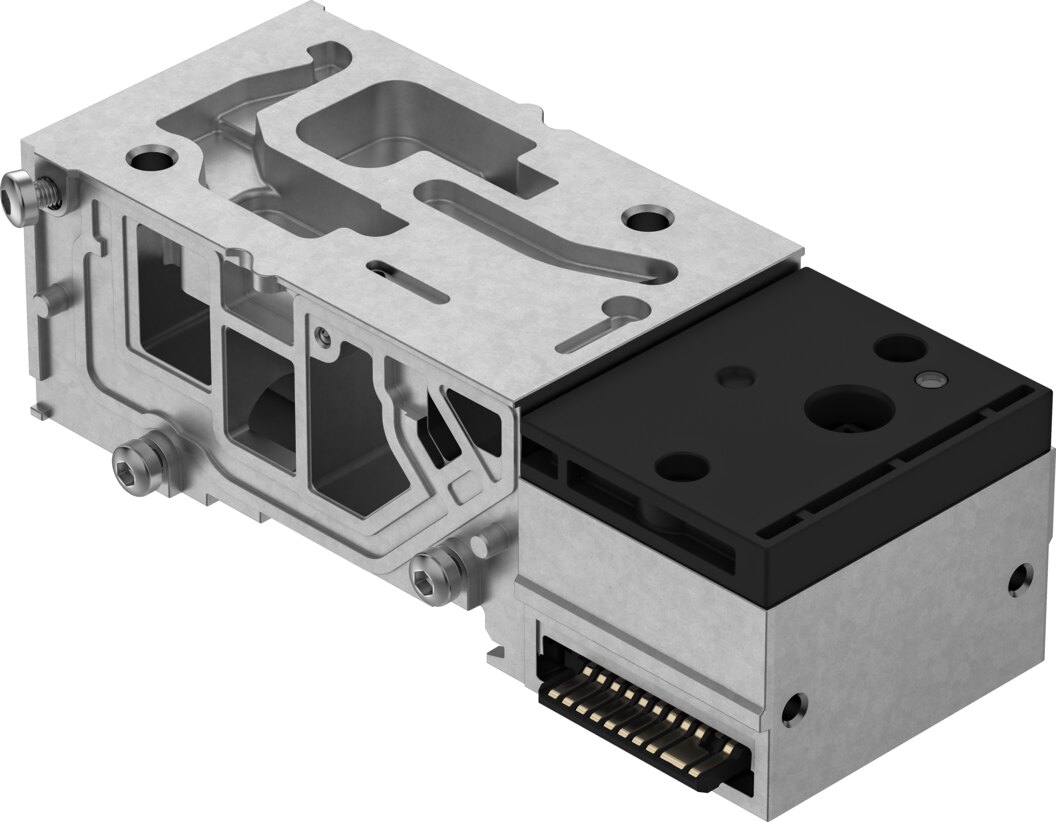

Sub-base for VMPA valve terminal, 4 valve positions, port G1/4 VMPA-FB-AP-1-EMG-P5 - Festo 8161057
The Festo sub-base VMPA-FB-AP-1-EMG-P5 carries the valves and provides the pneumatic connections for VMPA series valve terminals. Key data: 4 valve positions, supply port 1 G1/4 and operating pressure -0.9 to 10 bar. It also offers pilot pressure 3 to 8 bar and ambient temperature -5 to 50 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The sub-base VMPA-FB-AP-1-EMG-P5 carries the valves and provides the pneumatic connections for VMPA series valve terminals. The key selection criteria are 4 valve positions and supply port 1 G1/4.
Advantages
- Up to 4 valve positions on one plate
- Supply port 1 G1/4
- Operating pressure -0.9 to 10 bar, so vacuum operation is also possible
- Pilot pressure 3 to 8 bar
- Suitable for ambient temperatures of -5 to 50 °C
- Grid dimension 41 mm
Application
It is typically used to build or extend VMPA series valve terminals in machine building.
Technical data
| Type | VMPA-FB-AP-1-EMG-P5 |
|---|---|
| Festo part number | 8161057 |
| Series | VMPA |
| Width | 42 mm |
| Length | 107.3 mm |
| Grid dimension | 41 mm |
| Max. number of valve positions | 4 |
| Operating pressure | -0.9 to 10 bar |
| Pilot pressure | 3 to 8 bar |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 60 °C |
| Ambient temperature | -5 to 50 °C |
| Product weight | 175 g |
| Pneumatic connection, port 1 | G1/4 |
| Note on materials | RoHS compliant |
| Material sub-base | Die-cast aluminium |
| Weight | 0.2 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMPA-FB-AP-1-EMG-P5 |
| EAN | 4052568589110 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Betriebsdruck max [bar] | 10 |
| Temperature (max.) | 50 |
