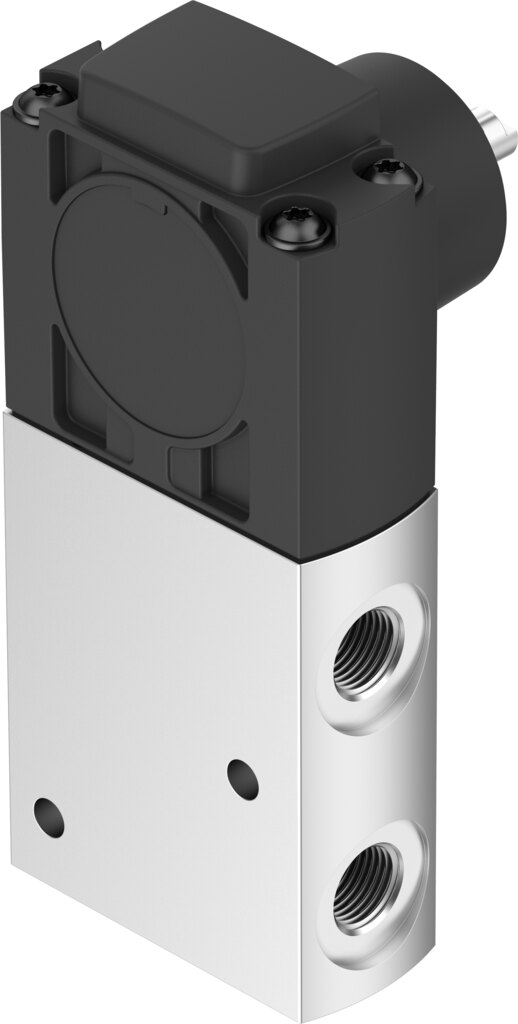

Swivel lever valve 3/2-way monostable, 1/8 NPT, 750 l/min VMEF-VBT-M32-M-N18 - Festo 8048979

Festo ✓ Original product Brand new

The Festo swivel lever valve VMEF-VBT-M32-M-N18 works with a monostable 3/2-way function and suits position sensing on cams, slides and cam tracks. Rated for 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.2 Nm.

Net
€65.75
excl. VAT
Item FES-8048979
Manufacturer no. VMEF-VBT-M32-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the swivel lever valve VMEF-VBT-M32-M-N18 switches the compressed air directly, without pilot control. The swivel lever valve is built as a monostable 3/2-way valve.

Why this valve

  • 750 l/min standard nominal flow through a 5.6 mm nominal size.
  • Switches vacuum from -0.95 bar as well as positive pressure up to 10 bar.
  • 1/8 NPT thread for direct fitting connection.
  • Actuating torque 1.2 Nm.
  • Corrosion resistance class CRC 1.
  • Maximum switching frequency 2.5 Hz.

Application

In operation the VMEF-VBT-M32-M-N18 mainly handles position sensing on cams, slides and cam tracks. For mounting, the VMEF-VBT-M32-M-N18 is fastened via through-holes. If the VMEF-VBT-M32-M-N18 is run on lubricated air, lubrication must be maintained from then on.

Technical data

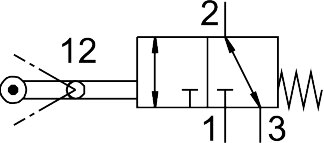

Valve function3/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignSwivel actuation, poppet seat
Type of resetMechanical spring
Nominal size5.6 mm
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapZero overlap
Maximum actuating speed with lateral actuation1 m/s
Maximum switching frequency2.5 Hz
Cam angle45°
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Note on ambient temperatureInfluence of heat on wear
Actuating torque1.2 Nm
Product weight178 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.23 kg
ManufacturerFesto
Hersteller-NrVMEF-VBT-M32-M-N18
EAN4052568646899
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 monostable
Flow rate [l/min]750
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
