Swivel lever valve 5/2-way monostable, G1/8, 750 l/min, up to 10 bar VMEF-VB-M52-M-G18 - Festo 8048969

Festo ✓ Original product Brand new

The Festo swivel lever valve VMEF-VB-M52-M-G18 is designed for limit switch tasks without electrical signals and switches as a monostable 5/2-way valve. It offers 750 l/min standard nominal flow, G1/8 ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 1.2 Nm.

Net
€81.68
excl. VAT
Item FES-8048969
Manufacturer no. VMEF-VB-M52-M-G18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The swivel lever valve VMEF-VB-M52-M-G18 switches up to 10 bar and passes 750 l/min standard nominal flow. It works as a monostable 5/2-way valve.

Benefits

  • 750 l/min standard nominal flow through a 5.2 mm nominal size.
  • Operating pressure -0.95 to 10 bar, so vacuum circuits on the G1/8 port are covered too.
  • G1/8 connection on all 5 valve ports.
  • Actuating torque 1.2 Nm.
  • Corrosion resistance class CRC 1.
  • Maximum switching frequency 2.5 Hz.

Application

The VMEF-VB-M52-M-G18 is the right choice for limit switch tasks without electrical signals. The VMEF-VB-M52-M-G18 is fastened via through-holes. If the VMEF-VB-M52-M-G18 is run on lubricated air, lubrication must be maintained from then on.

Technical data

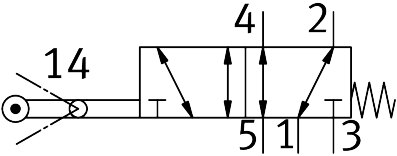

Valve function5/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working portG1/8
Operating pressure-0.95 to 10 bar
DesignPiston spool, swivel actuation
Type of resetMechanical spring
Nominal size5.2 mm
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum actuating speed with lateral actuation1 m/s
Maximum switching frequency2.5 Hz
Cam angle45°
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Note on ambient temperatureInfluence of heat on wear
Actuating torque1.2 Nm
Product weight207 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/8
Pneumatic connection, port 2G1/8
Pneumatic connection, port 3G1/8
Pneumatic connection, port 4G1/8
Pneumatic connection, port 5G1/8
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.25 kg
ManufacturerFesto
Hersteller-NrVMEF-VB-M52-M-G18
EAN4052568646790
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]750
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
