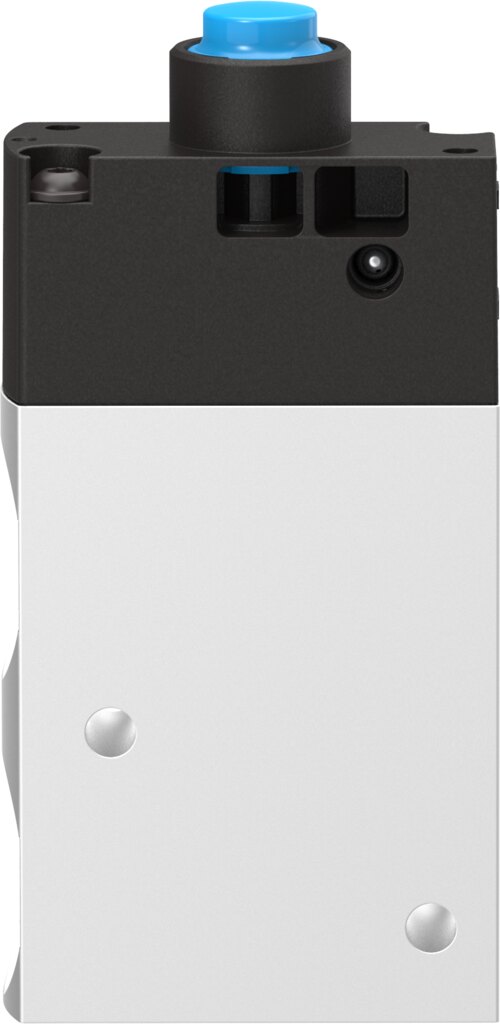

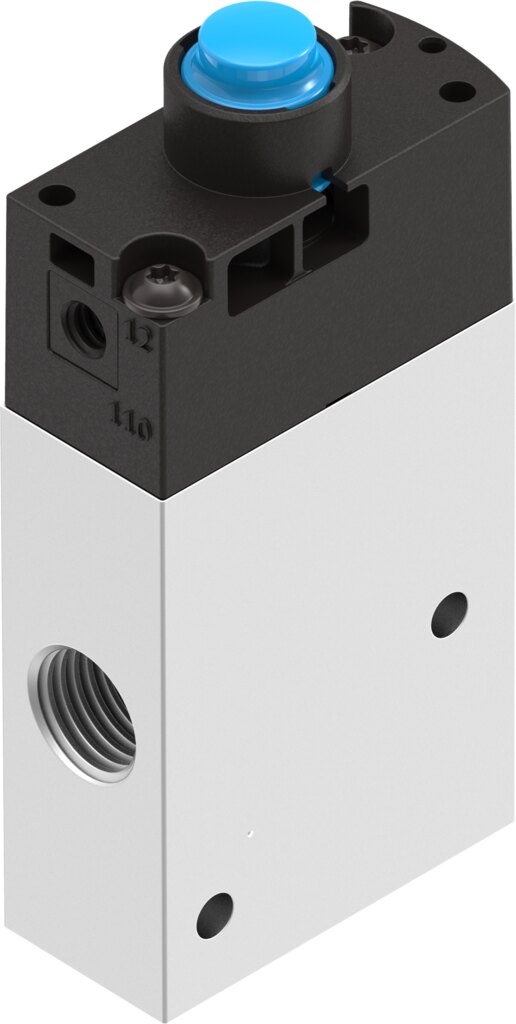

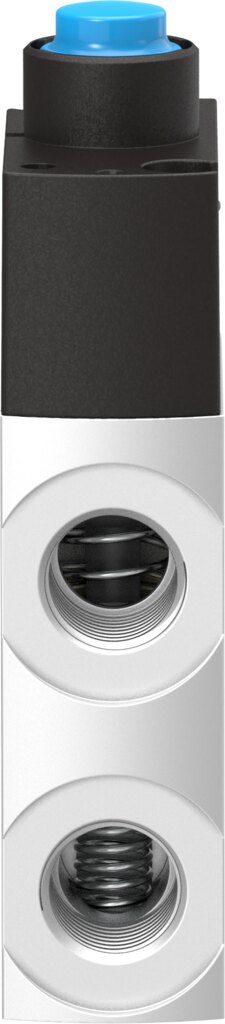

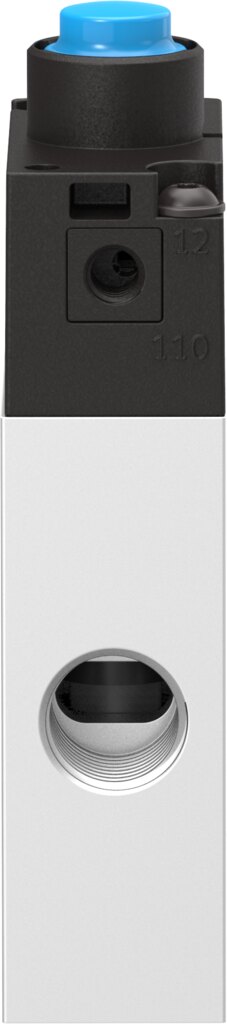

Stem actuated valve 3/2-way normally closed, 1/4 NPT, 870 l/min VMEF-STCZ-M32-M-N14 - Festo 8031338

Festo ✓ Original product Brand new

The Festo stem actuated valve VMEF-STCZ-M32-M-N14 is designed for limit switch tasks without electrical signals and switches as a 3/2-way valve (normally closed, monostable). Key data: 870 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width.

Net
€74.91
excl. VAT
Item FES-8031338
Manufacturer no. VMEF-STCZ-M32-M-N14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 870 l/min standard nominal flow and up to 10 bar operating pressure, the stem actuated valve VMEF-STCZ-M32-M-N14 switches the compressed air. The stem actuated valve is built as a 3/2-way valve (normally closed, monostable).

Why this valve

  • 870 l/min standard nominal flow through a 6 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/4 NPT connection on all 3 valve ports.
  • Actuating force 14 N.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VMEF-STCZ-M32-M-N14.
  • Corrosion resistance class CRC 2.

Application

Typical tasks for the VMEF-STCZ-M32-M-N14: limit switch tasks without electrical signals. The VMEF-STCZ-M32-M-N14 is fastened via through-holes. If the VMEF-STCZ-M32-M-N14 is run on lubricated air, lubrication must be maintained from then on. Do not use the actuator as a mechanical stop.

Technical data

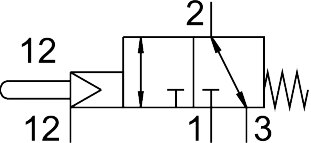

Valve function3/2-way, normally closed, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)870 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.95 to 10 bar
DesignPoppet seat
Type of resetMechanical spring
Nominal size6 mm
Note on useDo not use as a mechanical stop
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
OverlapZero overlap
Pilot pressure3 to 10 bar
Maximum switching frequency3 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force14 N
Product weight124 g
Type of mountingWith through-hole
Pilot air port 12/14M5
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.135 kg
ManufacturerFesto
Hersteller-NrVMEF-STCZ-M32-M-N14
EAN4052568428600
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/4
Nominal size DN [mm]6
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function3/2 closed monostable
Flow rate [l/min]870
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
