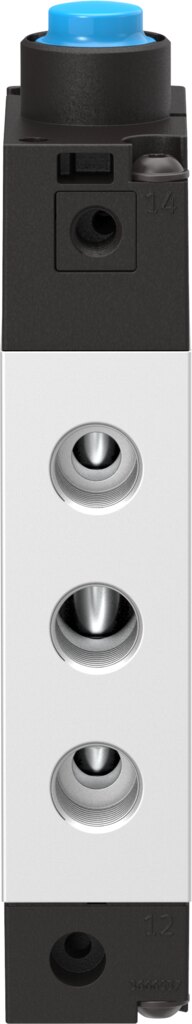

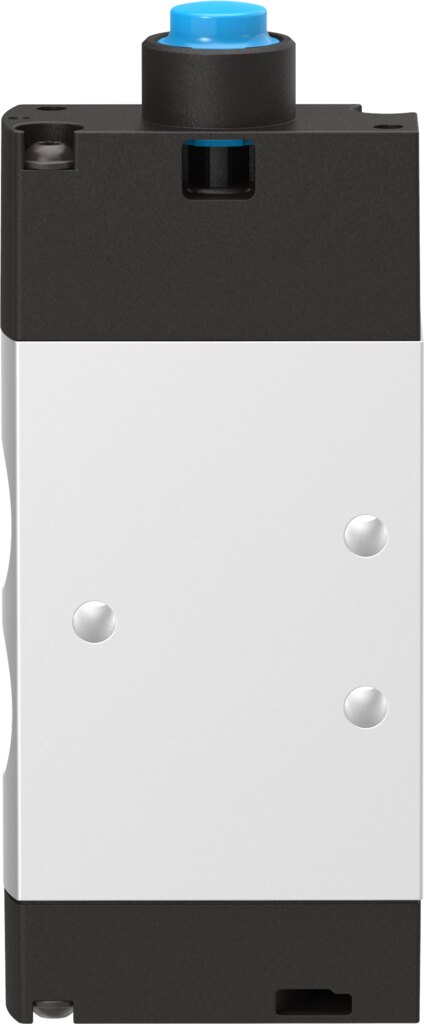

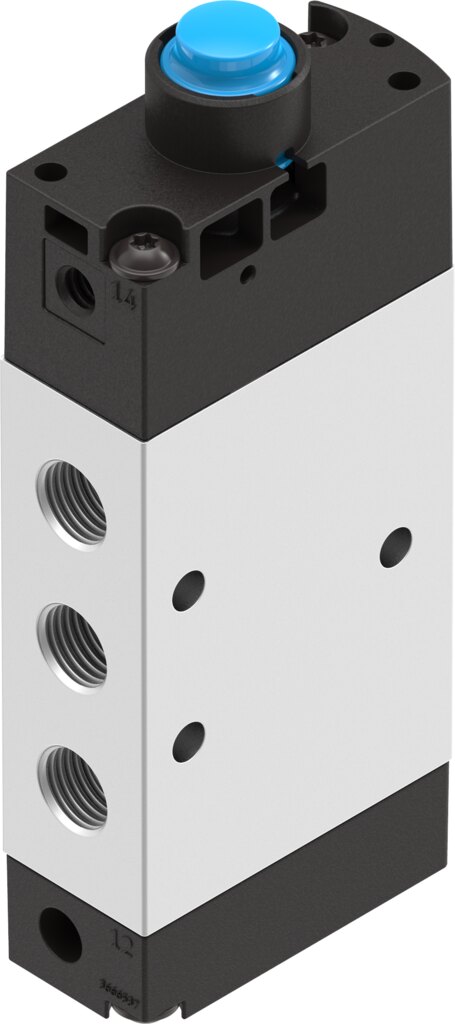

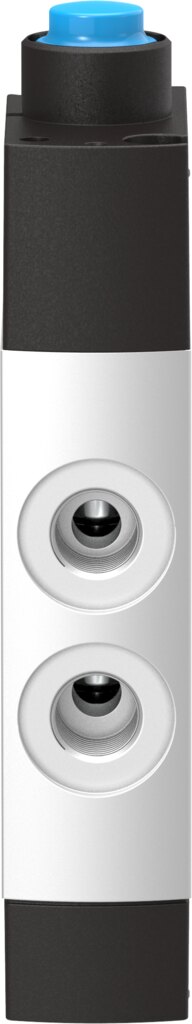

Stem actuated valve 5/2-way monostable, 1/8 NPT, 750 l/min VMEF-SCZ-M52-E-N18 - Festo 8031326

Festo ✓ Original product Brand new

The Festo stem actuated valve VMEF-SCZ-M52-E-N18 is designed for limit switch tasks without electrical signals and switches as a monostable 5/2-way valve. Key data: 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Switches with 14 N actuating force.

Net
€112.53
excl. VAT
Item FES-8031326
Manufacturer no. VMEF-SCZ-M52-E-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the stem actuated valve VMEF-SCZ-M52-E-N18 switches the compressed air. The stem actuated valve is built as a monostable 5/2-way valve.

Why this valve

  • Standard nominal flow rate of 750 l/min at 5.2 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/8 NPT connection on all 5 valve ports.
  • Switches with 14 N actuating force.
  • Explosion protection for ATEX zones 1, 2, 21 and 22, so the VMEF-SCZ-M52-E-N18 can be used in hazardous areas.
  • Corrosion resistance class CRC 2.

Application

Typical tasks for the VMEF-SCZ-M52-E-N18: limit switch tasks without electrical signals. For mounting, the VMEF-SCZ-M52-E-N18 is fastened via through-holes. If the VMEF-SCZ-M52-E-N18 is run on lubricated air, lubrication must be maintained from then on. Do not use the actuator as a mechanical stop.

Technical data

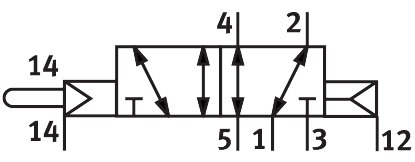

Valve function5/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Nominal size5.2 mm
Note on useDo not use as a mechanical stop
Sealing principleSoft
Mounting positionAny
Type of pilotingPiloted
Pilot air supplyExternal
Flow directionReversible
OverlapPositive overlap
Pilot pressure2.5 to 10 bar
Maximum switching frequency3 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force14 N
Product weight150 g
Type of mountingWith through-hole
Pilot air port 12/14M5
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.165 kg
ManufacturerFesto
Hersteller-NrVMEF-SCZ-M52-E-N18
EAN4052568428488
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]750
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
