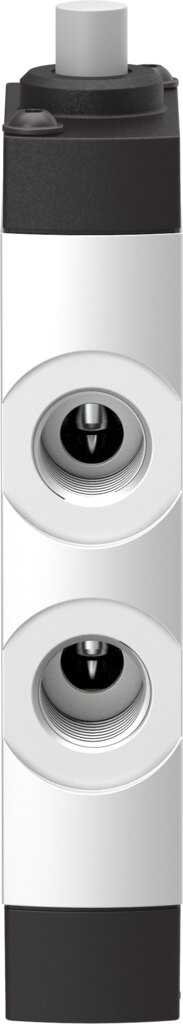

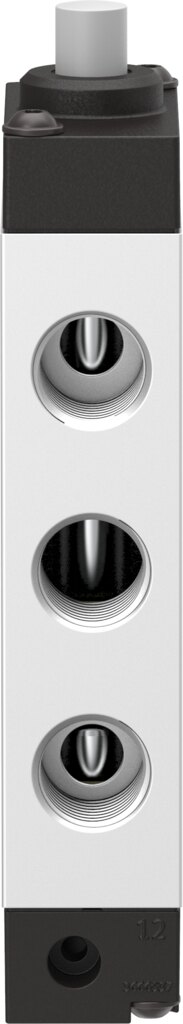

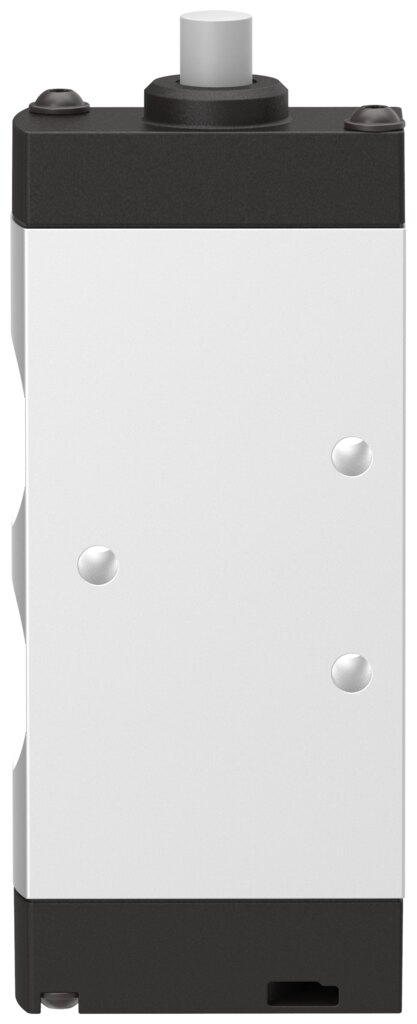

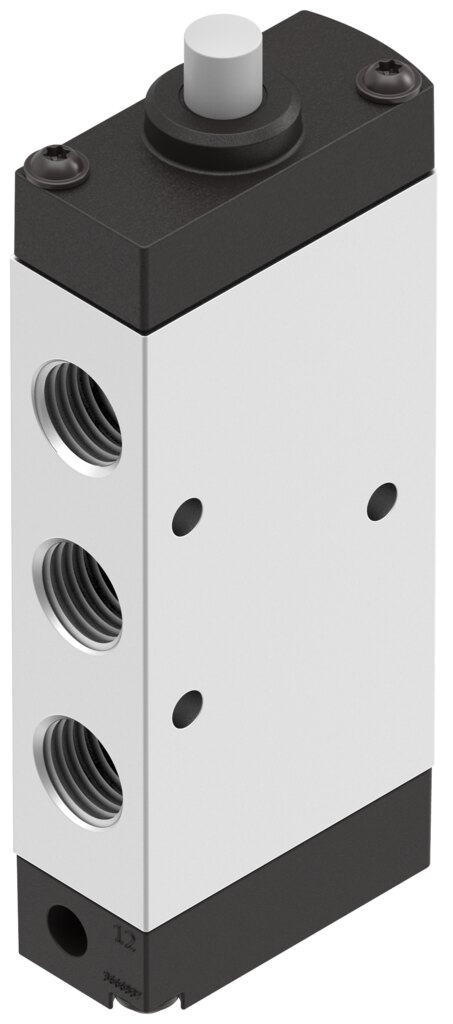

Stem actuated valve 5/2-way monostable, 1/4 NPT, 1200 l/min VMEF-S-M52-M-N14 - Festo 8031312
The Festo stem actuated valve VMEF-S-M52-M-N14 is designed for purely pneumatic signal generation in sequence controls and switches as a monostable 5/2-way valve. Key data: 1200 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating force 43 N.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The stem actuated valve VMEF-S-M52-M-N14 switches up to 10 bar and passes 1200 l/min standard nominal flow. The stem actuated valve is built as a monostable 5/2-way valve.
Your benefits
- Standard nominal flow rate of 1200 l/min at 6 mm nominal size.
- Vacuum and positive pressure: -0.95 to 10 bar.
- 1/4 NPT connection on all 5 valve ports.
- Actuating force 43 N.
- Explosion protection for ATEX zones 1, 2, 21 and 22, so the VMEF-S-M52-M-N14 can be used in hazardous areas.
- Corrosion resistance class CRC 2.
Application
Typical tasks for the VMEF-S-M52-M-N14: purely pneumatic signal generation in sequence controls. The stem actuated valve is fastened via through-holes. If the VMEF-S-M52-M-N14 is run on lubricated air, lubrication must be maintained from then on. Do not use the actuator as a mechanical stop.
Technical data

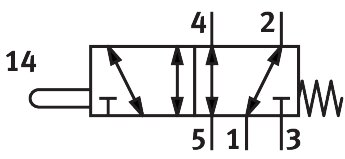

| Valve function | 5/2-way, monostable |
|---|---|
| Type of actuation | Mechanical |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 1200 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating pressure | -0.95 to 10 bar |
| Design | Piston spool |
| Type of reset | Mechanical spring |
| Nominal size | 6 mm |
| Note on use | Do not use as a mechanical stop |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Maximum switching frequency | 3 Hz |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Actuating force | 43 N |
| Product weight | 178 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Weight | 0.19 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VMEF-S-M52-M-N14 |
| EAN | 4052568428396 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 6 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 5/2 monostable |
| Flow rate [l/min] | 1200 |
| Actuation type | Mechanical |
| Series | VMEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
