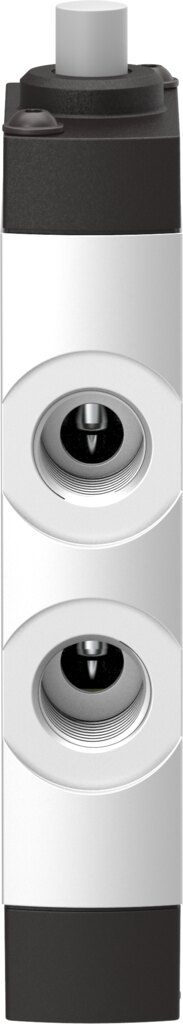

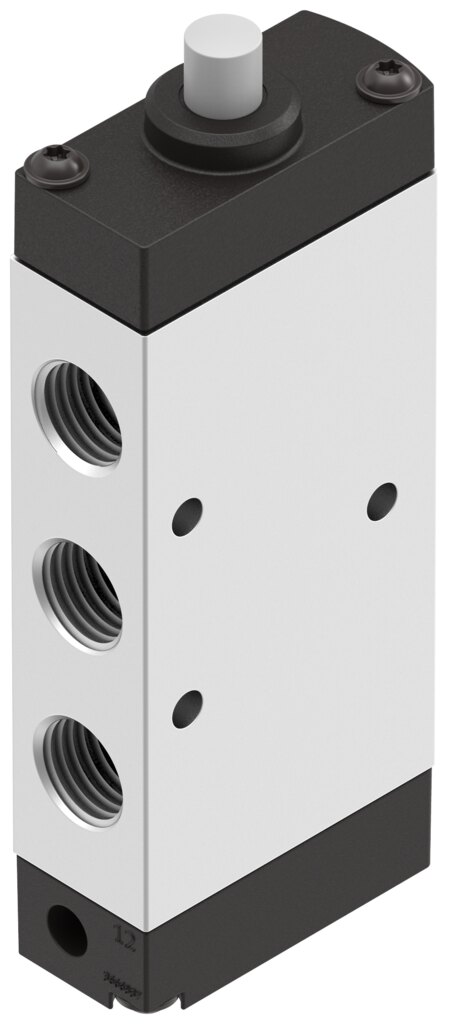

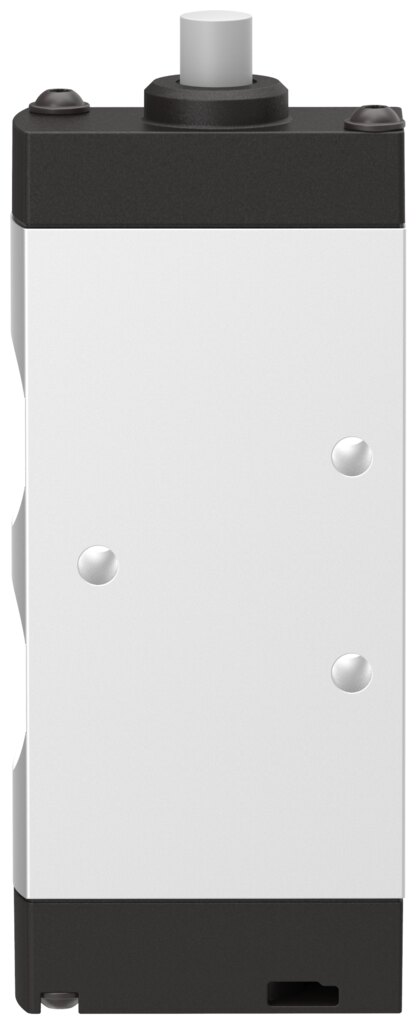

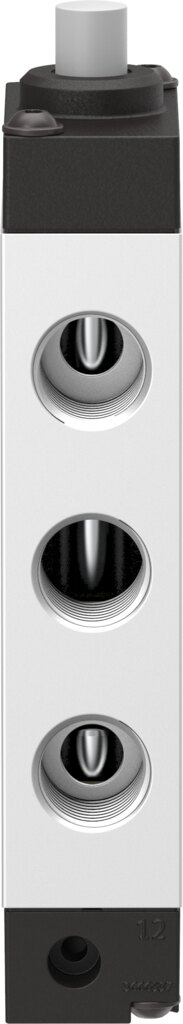

Stem actuated valve 5/2-way monostable, 1/4 NPT, 1200 l/min VMEF-S-M52-E-N14 - Festo 8031314

Festo ✓ Original product Brand new

For detecting end positions on moving machine parts, Festo supplies the stem actuated valve VMEF-S-M52-E-N14 with a monostable 5/2-way function. It offers 1200 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating force 48 N.

Net
€90.16
excl. VAT
Item FES-8031314
Manufacturer no. VMEF-S-M52-E-N14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

1200 l/min standard nominal flow at up to 10 bar operating pressure: that is the capacity of the stem actuated valve VMEF-S-M52-E-N14. The stem actuated valve switches as a monostable 5/2-way valve.

Why this valve

  • Standard nominal flow rate of 1200 l/min at 7 mm nominal size.
  • Works from -0.95 bar vacuum up to 10 bar positive pressure.
  • 1/4 NPT connection on all 5 valve ports.
  • Actuating force 48 N.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VMEF-S-M52-E-N14.
  • Corrosion resistance class CRC 2.

Application

Typical tasks for the VMEF-S-M52-E-N14: detecting end positions on moving machine parts. For mounting, the VMEF-S-M52-E-N14 is fastened via through-holes. If the VMEF-S-M52-E-N14 is run on lubricated air, lubrication must be maintained from then on. Do not use the actuator as a mechanical stop.

Technical data

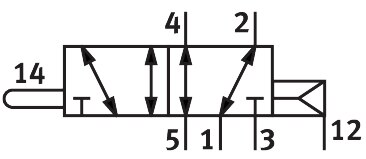

Valve function5/2-way, monostable
Type of actuationMechanical
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)1200 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetPneumatic spring
Nominal size7 mm
Note on useDo not use as a mechanical stop
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency3 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC2 - moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force48 N
Product weight177 g
Type of mountingWith through-hole
Pilot air port 12/14M5
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 41/4 NPT
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Weight0.185 kg
ManufacturerFesto
Hersteller-NrVMEF-S-M52-E-N14
EAN4052568428402
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/4
Nominal size DN [mm]7
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]1200
Actuation typeMechanical
SeriesVMEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
