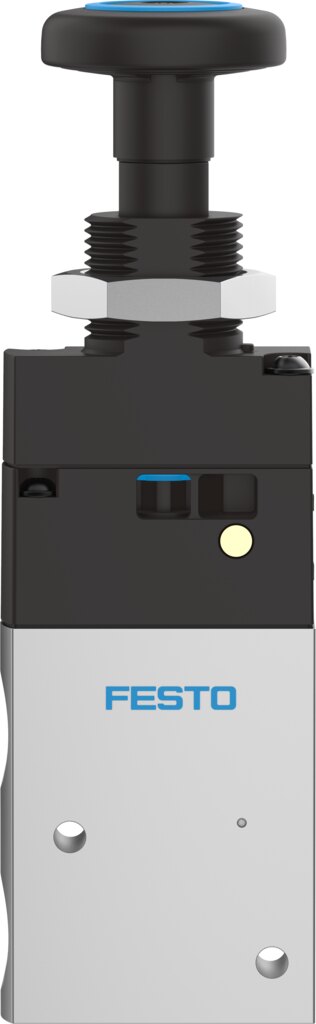

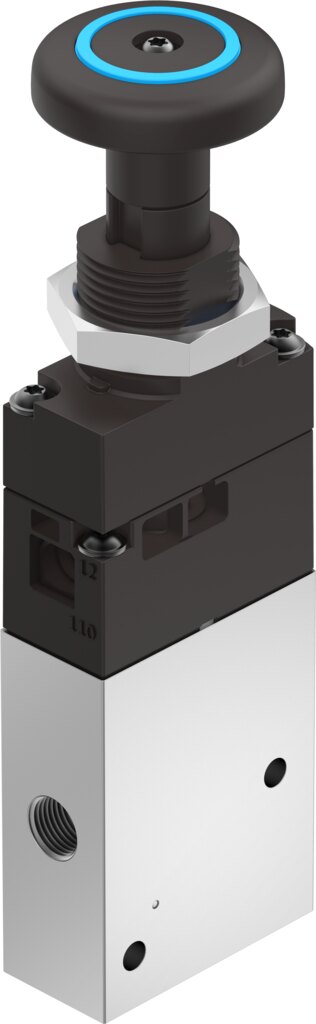

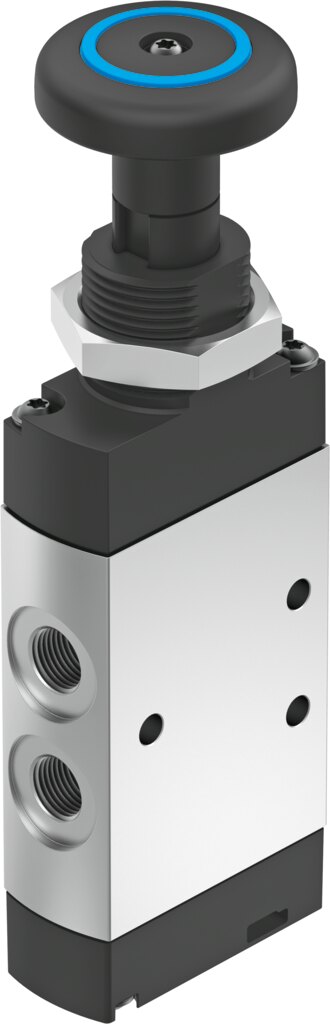

Pushbutton valve 3/2-way open/closed, 1/4 NPT, 870 l/min, up to 10 bar VHEF-PTCZ-M32-M-N14 - Festo 5299724
For manual control commands on machines and fixtures, Festo supplies the pushbutton valve VHEF-PTCZ-M32-M-N14 with a 3/2-way function (open/closed, monostable). It offers 870 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The pushbutton valve VHEF-PTCZ-M32-M-N14 switches up to 10 bar and passes 870 l/min standard nominal flow. The pushbutton valve is built as a 3/2-way valve (open/closed, monostable).
Your benefits
- Standard nominal flow rate of 870 l/min at 6 mm nominal size.
- Vacuum and positive pressure: -0.95 to 10 bar.
- 1/4 NPT thread for direct fitting connection.
- Switches with 24.5 N actuating force.
- Explosion protection for ATEX zones 1, 2, 21 and 22, so the VHEF-PTCZ-M32-M-N14 can be used in hazardous areas.
- Corrosion resistance class CRC 1.
Application
In operation the VHEF-PTCZ-M32-M-N14 mainly handles manual control commands on machines and fixtures. For mounting, the VHEF-PTCZ-M32-M-N14 is fastened via through-holes. If the VHEF-PTCZ-M32-M-N14 is run on lubricated air, lubrication must be maintained from then on. The manufacturer specifies actuation by hand only.
Technical data
| Valve function | 3/2-way, open/closed, monostable |
|---|---|
| Type of actuation | Manual |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 870 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating pressure | -0.95 to 10 bar |
| Design | Poppet seat |
| Type of reset | Mechanical spring |
| Nominal size | 6 mm |
| Exhaust air function | Can be throttled |
| Note on use | Actuate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Piloted |
| Pilot air supply | External |
| Flow direction | Reversible |
| Overlap | Zero overlap |
| Pilot pressure | 3 to 10 bar |
| Maximum switching frequency | 0.5 Hz |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Actuating force | 24.5 N |
| Product weight | 161 g |
| Type of mounting | With through-hole |
| Pilot air port 12/14 | M5 |
| Pilot air port 12 | M5 |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VHEF-PTCZ-M32-M-N14 |
| EAN | 4052568422806 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 6 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 3/2 open/closed monostable |
| Flow rate [l/min] | 870 |
| Actuation type | Manually |
| Series | VHEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
