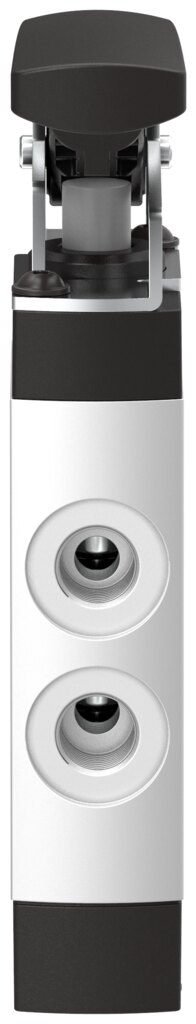

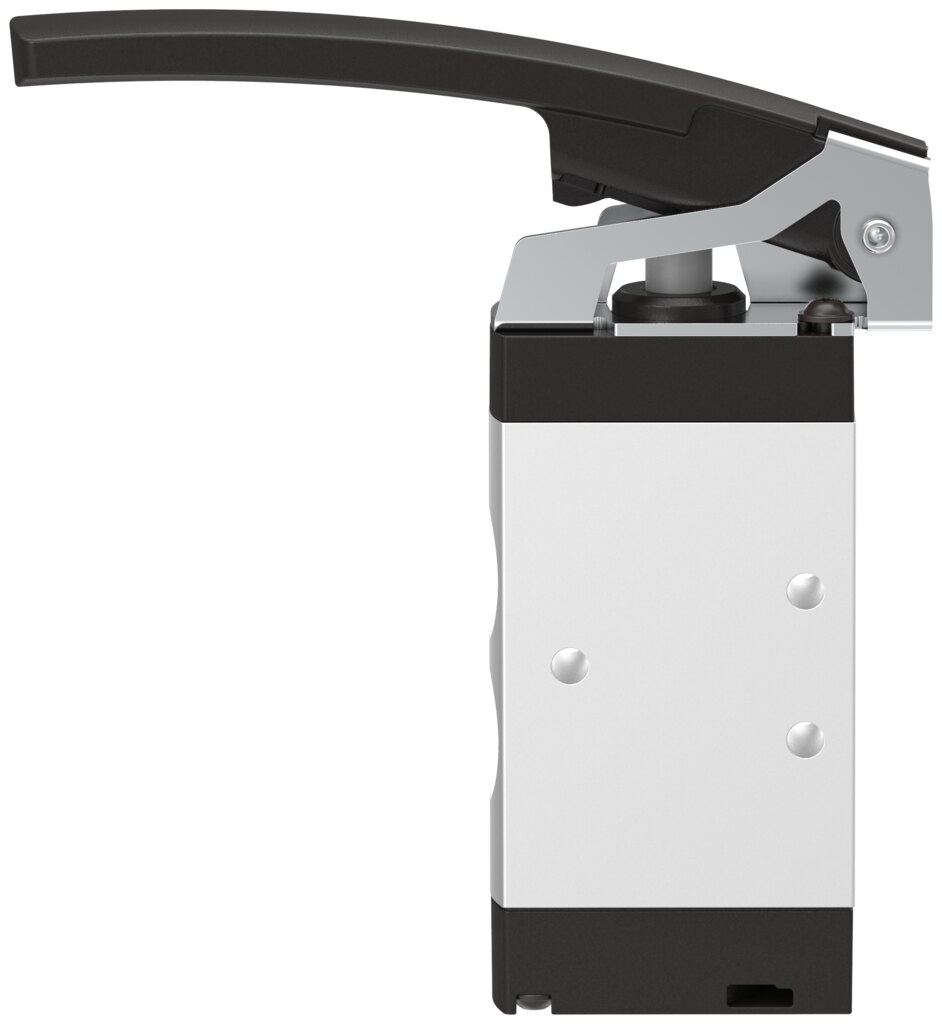

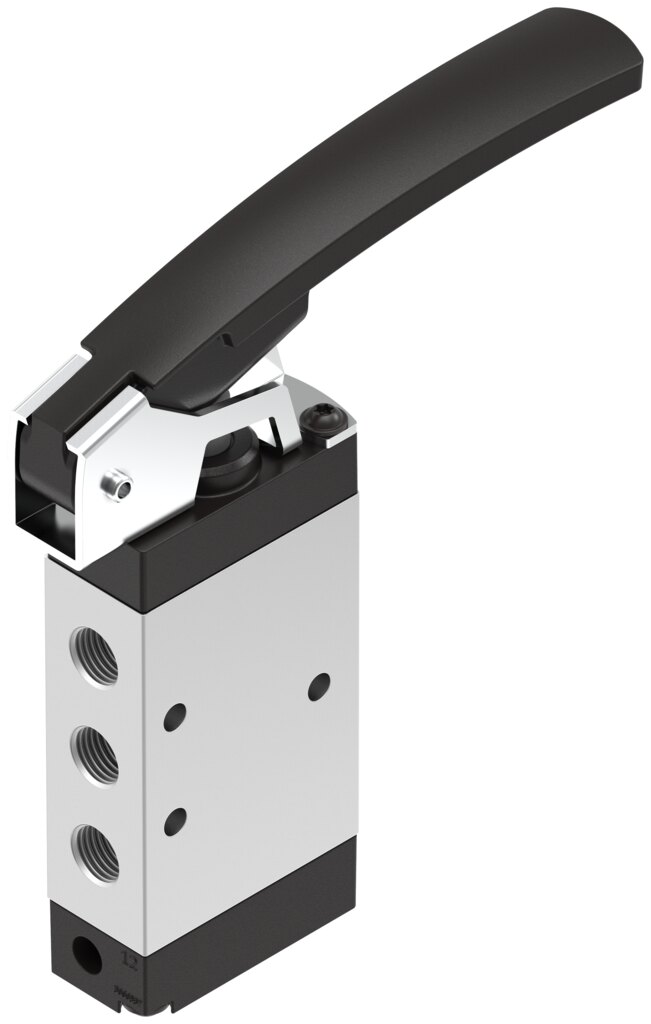

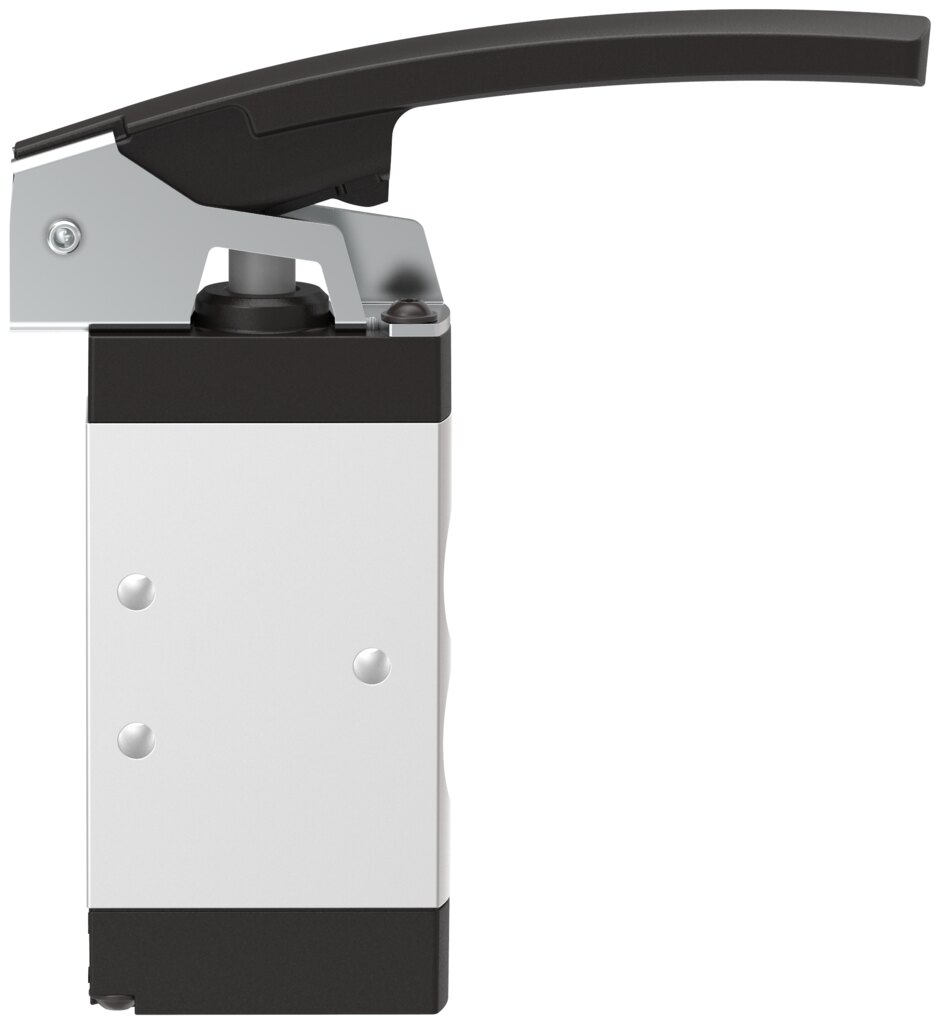

Finger lever valve 5/2-way monostable, 1/8 NPT, 750 l/min VHEF-L-M52-M-N18 - Festo 4500003

Festo ✓ Original product Brand new

The Festo finger lever valve VHEF-L-M52-M-N18 is designed for controlling cylinders and drives by hand and switches as a monostable 5/2-way valve. Key data: 750 l/min standard nominal flow, 1/8 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Switches with 10 N actuating force.

Net
€86.39
excl. VAT
Item FES-4500003
Manufacturer no. VHEF-L-M52-M-N18
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The finger lever valve VHEF-L-M52-M-N18 switches up to 10 bar and passes 750 l/min standard nominal flow. The finger lever valve switches as a monostable 5/2-way valve.

Why this valve

  • 750 l/min standard nominal flow through a 5.2 mm nominal size.
  • Operating pressure -0.95 to 10 bar, so vacuum circuits on the 1/8 NPT port are covered too.
  • 1/8 NPT connection on all 5 valve ports.
  • Switches with 10 N actuating force.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VHEF-L-M52-M-N18.
  • Corrosion resistance class CRC 1.

Application

The VHEF-L-M52-M-N18 is the right choice for controlling cylinders and drives by hand. The finger lever valve is fastened via through-holes. Lubricated operation of the VHEF-L-M52-M-N18 is possible, but must then be maintained permanently. The manufacturer specifies actuation by hand only.

Technical data

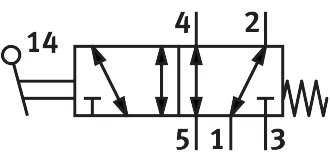

Valve function5/2-way, monostable
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/8 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size5.2 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating force10 N
Product weight185 g
Type of mountingWith through-hole
Pneumatic connection, port 11/8 NPT
Pneumatic connection, port 21/8 NPT
Pneumatic connection, port 31/8 NPT
Pneumatic connection, port 41/8 NPT
Pneumatic connection, port 51/8 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
Weight0.22 kg
ManufacturerFesto
Hersteller-NrVHEF-L-M52-M-N18
EAN4052568418472
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/8
Nominal size DN [mm]5,2
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/2 monostable
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/8
Temperaturbereich-10-60 °C
Temperature (max.)60
