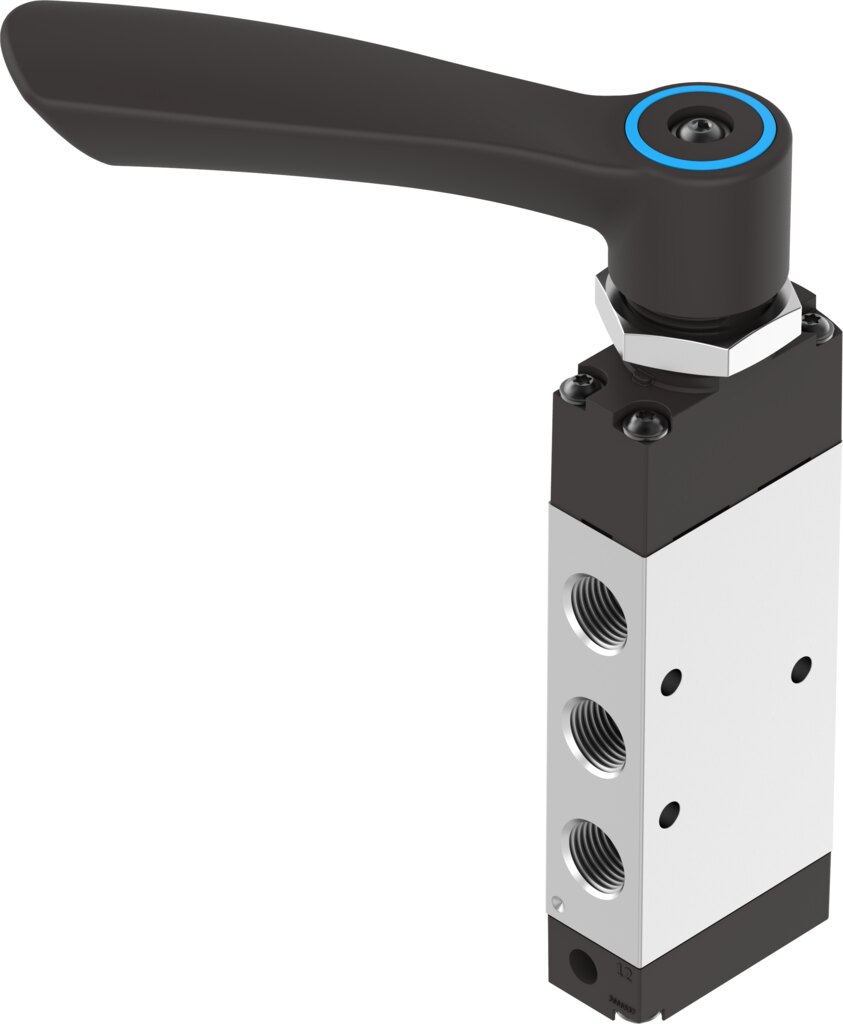

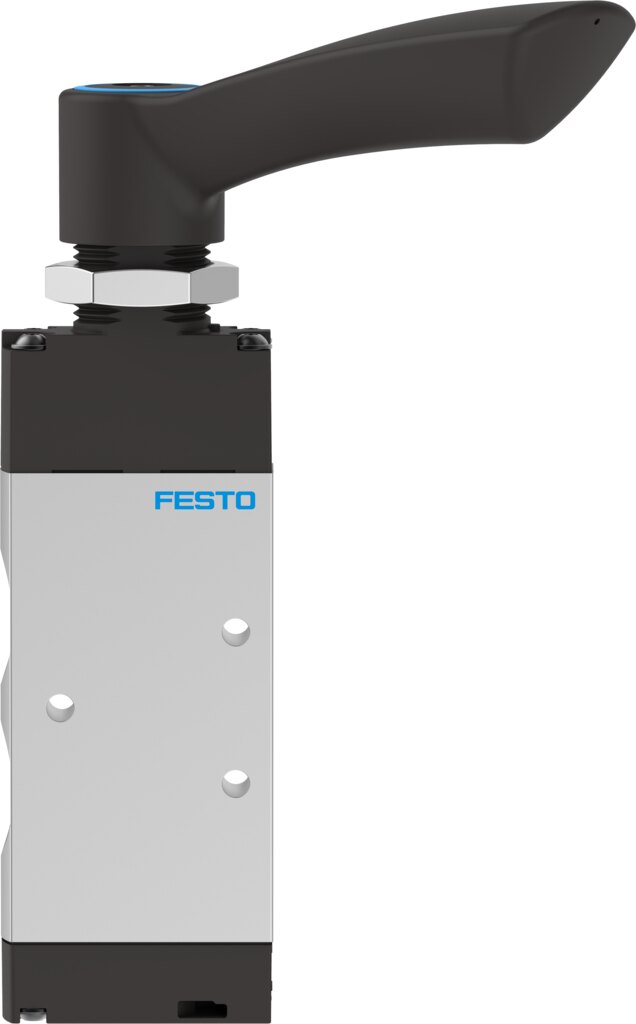

Hand lever valve 5/3-way mid-position exhausted, 1/4 NPT, 750 l/min VHEF-H-P53E-M-N14 - Festo 8080957

Festo ✓ Original product Brand new

The Festo hand lever valve VHEF-H-P53E-M-N14 is designed for controlling cylinders and drives by hand and switches as a 5/3-way valve with exhausted mid-position. Key data: 750 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width. Actuating torque 0.7 Nm.

Net
€207.36
excl. VAT
Item FES-8080957
Manufacturer no. VHEF-H-P53E-M-N14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 750 l/min standard nominal flow and up to 10 bar operating pressure, the hand lever valve VHEF-H-P53E-M-N14 switches the compressed air directly, without pilot control. The hand lever valve is built as a 5/3-way valve with exhausted mid-position.

Benefits

  • 750 l/min standard nominal flow through a 7 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • 1/4 NPT thread for direct fitting connection.
  • Actuating torque 0.7 Nm.
  • Explosion protection for ATEX zones 1, 2, 21 and 22, so the VHEF-H-P53E-M-N14 can be used in hazardous areas.
  • Corrosion resistance class CRC 1.

Application

Typical tasks for the VHEF-H-P53E-M-N14: controlling cylinders and drives by hand. The VHEF-H-P53E-M-N14 is fastened via through-holes. Lubricated operation of the VHEF-H-P53E-M-N14 is possible, but must then be maintained permanently. The manufacturer specifies actuation by hand only.

Technical data

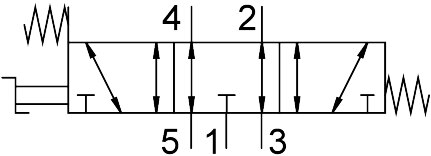

Valve function5/3-way, mid-position exhausted
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working port1/4 NPT
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size7 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.7 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight298 g
Type of mountingWith through-hole
Pneumatic connection, port 11/4 NPT
Pneumatic connection, port 21/4 NPT
Pneumatic connection, port 31/4 NPT
Pneumatic connection, port 41/4 NPT
Pneumatic connection, port 51/4 NPT
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
ManufacturerFesto
Hersteller-NrVHEF-H-P53E-M-N14
EAN4052568454029
Zolltarifnummer90330090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadNPT 1/4
Nominal size DN [mm]7
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionNPT 1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
