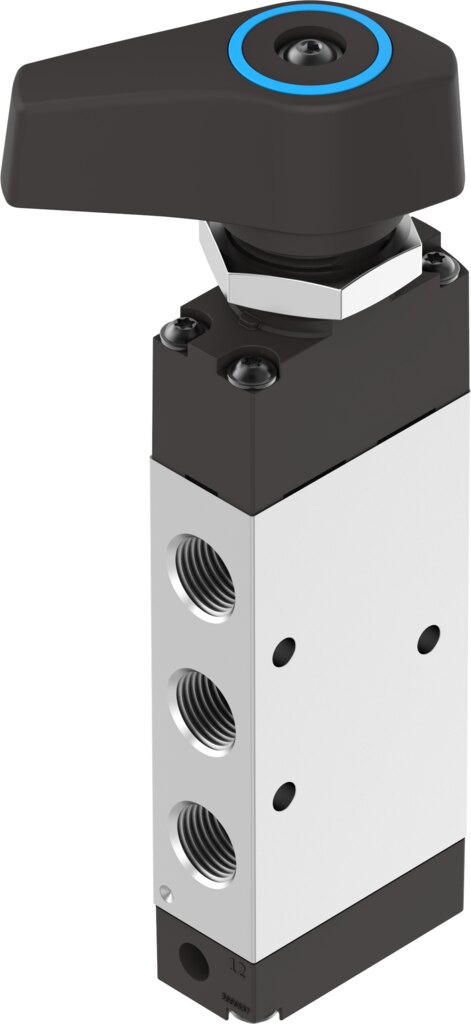

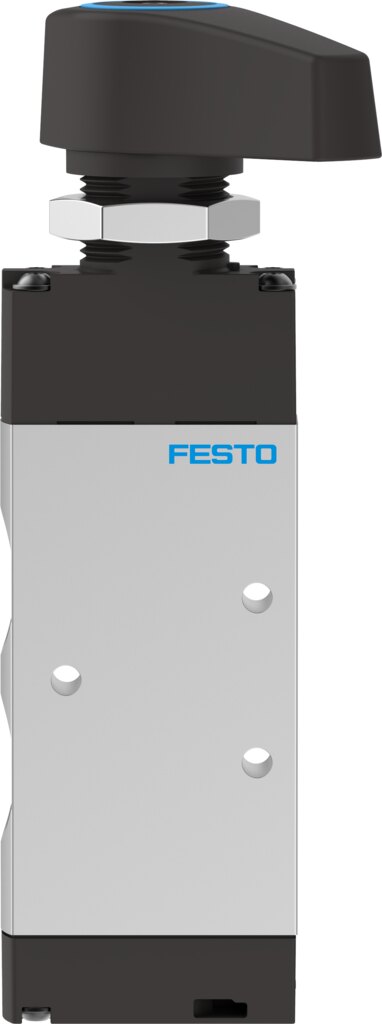

Selector valve 5/3-way mid-position exhausted, 1/4 NPT, 750 l/min VHEF-E-P53E-M-N14 - Festo 8080989
The Festo selector valve VHEF-E-P53E-M-N14 is designed for manual control commands on machines and fixtures and switches as a 5/3-way valve with exhausted mid-position. Key data: 750 l/min standard nominal flow, 1/4 NPT ports and -0.95 to 10 bar operating pressure. 20 mm width.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
750 l/min standard nominal flow at up to 10 bar operating pressure: that is the capacity of the selector valve VHEF-E-P53E-M-N14. It works as a 5/3-way valve with exhausted mid-position.
Benefits
- 750 l/min standard nominal flow through a 7 mm nominal size.
- Switches vacuum from -0.95 bar as well as positive pressure up to 10 bar.
- 1/4 NPT thread for direct fitting connection.
- Actuating torque 0.7 Nm.
- Rated for ATEX zones 1 and 2 (gas) and 21 and 22 (dust), so the VHEF-E-P53E-M-N14 can also switch in hazardous areas.
- Corrosion resistance class CRC 1.
Application
In operation the VHEF-E-P53E-M-N14 mainly handles manual control commands on machines and fixtures. The selector valve is fastened via through-holes. Unlubricated air is sufficient, lubricated air is permitted but then required permanently for the VHEF-E-P53E-M-N14. The manufacturer specifies actuation by hand only.
Technical data

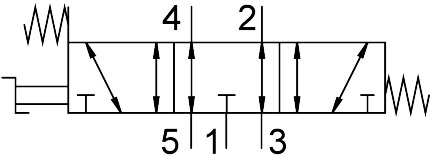

| Valve function | 5/3-way, mid-position exhausted |
|---|---|
| Type of actuation | Manual |
| Width | 20 mm |
| Standard nominal flow rate (standardised to DIN 1343) | 750 l/min |
| Pneumatic working port | 1/4 NPT |
| Operating pressure | -0.95 to 10 bar |
| Design | Piston spool |
| Type of reset | Mechanical spring |
| Nominal size | 7 mm |
| Exhaust air function | Can be throttled |
| Note on use | Actuate by hand only |
| Sealing principle | Soft |
| Mounting position | Any |
| Type of piloting | Direct |
| Flow direction | Reversible |
| Overlap | Positive overlap |
| Maximum switching frequency | 0.5 Hz |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Note on operating and pilot medium | Lubricated operation possible (then required for all further operation) |
| Corrosion resistance class CRC | 1 - low corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Media temperature | -10 to 60 °C |
| Ambient temperature | -10 to 60 °C |
| Actuating torque | 0.7 Nm |
| Maximum force on actuation | 200 N |
| Maximum lateral force on actuation | 200 N |
| Product weight | 268 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 2 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 4 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material cover | Reinforced PA |
| Material seals | NBR |
| Material housing | Anodised wrought aluminium alloy |
| Material lever | Reinforced PA |
| Manufacturer | Festo |
| Hersteller-Nr | VHEF-E-P53E-M-N14 |
| EAN | 4052568454340 |
| Zolltarifnummer | 84812090 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | Aluminium, anodised |
| Thread | NPT 1/4 |
| Nominal size DN [mm] | 7 |
| Seal material | NBR |
| Housing material | Aluminium, anodised |
| Medium | Compressed air |
| Function | 5/3 exhausted |
| Flow rate [l/min] | 750 |
| Actuation type | Manually |
| Series | VHEF |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | NPT 1/4 |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
