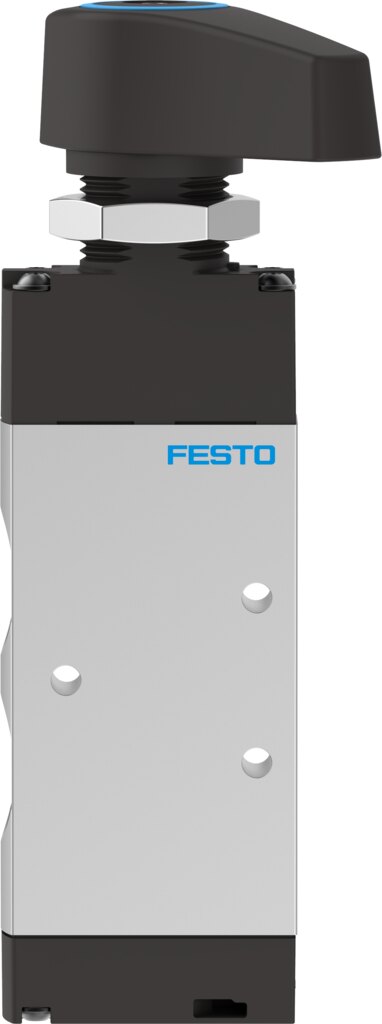

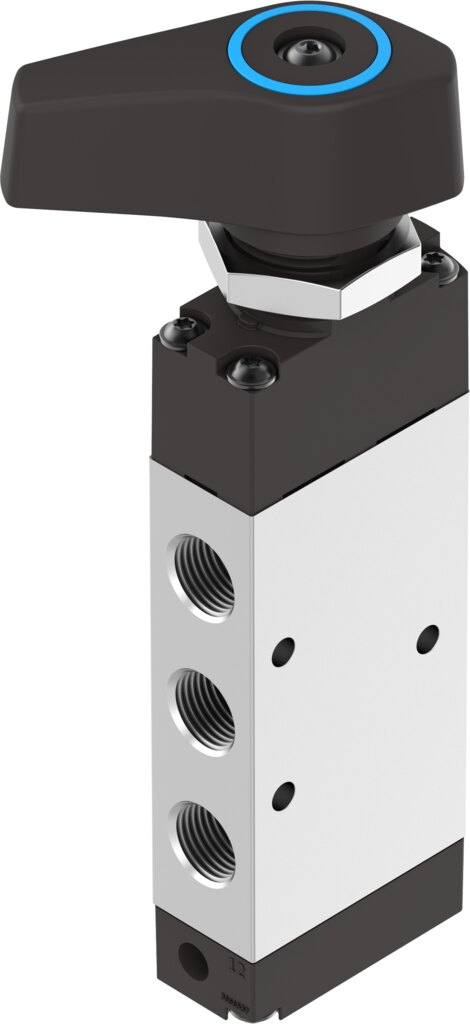

Selector valve 5/3-way mid-position exhausted, G1/4, 750 l/min VHEF-E-P53E-M-G14 - Festo 8080987

Festo ✓ Original product Brand new

The Festo selector valve VHEF-E-P53E-M-G14 is designed for control panels and set-up mode on compressed air systems and switches as a 5/3-way valve with exhausted mid-position. It offers 750 l/min standard nominal flow, G1/4 ports and -0.95 to 10 bar operating pressure. 20 mm width.

Net
€132.19
excl. VAT
Item FES-8080987
Manufacturer no. VHEF-E-P53E-M-G14
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The selector valve VHEF-E-P53E-M-G14 switches up to 10 bar and passes 750 l/min standard nominal flow. It works as a 5/3-way valve with exhausted mid-position.

Benefits

  • Standard nominal flow rate of 750 l/min at 7 mm nominal size.
  • Vacuum and positive pressure: -0.95 to 10 bar.
  • G1/4 connection on all 5 valve ports.
  • Actuating torque 0.7 Nm.
  • ATEX zones 1, 2, 21 and 22 as specified by the manufacturer for the VHEF-E-P53E-M-G14.
  • Corrosion resistance class CRC 1.

Application

Typical tasks for the VHEF-E-P53E-M-G14: control panels and set-up mode on compressed air systems. The selector valve is fastened via through-holes. Lubricated operation of the VHEF-E-P53E-M-G14 is possible, but must then be maintained permanently. The manufacturer specifies actuation by hand only.

Technical data

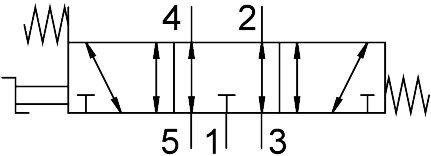

Valve function5/3-way, mid-position exhausted
Type of actuationManual
Width20 mm
Standard nominal flow rate (standardised to DIN 1343)750 l/min
Pneumatic working portG1/4
Operating pressure-0.95 to 10 bar
DesignPiston spool
Type of resetMechanical spring
Nominal size7 mm
Exhaust air functionCan be throttled
Note on useActuate by hand only
Sealing principleSoft
Mounting positionAny
Type of pilotingDirect
Flow directionReversible
OverlapPositive overlap
Maximum switching frequency0.5 Hz
Explosion protectionZone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX)
Operating mediumCompressed air to ISO 8573-1:2010 [7:-:-]
Note on operating and pilot mediumLubricated operation possible (then required for all further operation)
Corrosion resistance class CRC1 - low corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Media temperature-10 to 60 °C
Ambient temperature-10 to 60 °C
Actuating torque0.7 Nm
Maximum force on actuation200 N
Maximum lateral force on actuation200 N
Product weight268 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/4
Pneumatic connection, port 2G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 4G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material coverReinforced PA
Material sealsNBR
Material housingAnodised wrought aluminium alloy
Material leverReinforced PA
Weight0.27 kg
ManufacturerFesto
Hersteller-NrVHEF-E-P53E-M-G14
EAN4052568454326
Zolltarifnummer84812090
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialAluminium, anodised
ThreadG 1/4
Nominal size DN [mm]7
Seal materialNBR
Housing materialAluminium, anodised
MediumCompressed air
Function5/3 exhausted
Flow rate [l/min]750
Actuation typeManually
SeriesVHEF
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
Temperaturbereich-10-60 °C
Temperature (max.)60
