Valve disc HDM. 7 variants from 79.11 EUR.
Valve disc HDM - Riegler K2365
RIEGLER
Original product
Net price (excl. VAT)
As low as
€79.11
Item
RGL-K2365
Personal expert advice
Brand new
Specialist dealer since 2009
Original product
Worldwide shipping
Product data
ConditionNew
Artikel
RGL-K2365
Frequently Bought Together
-
This Item:
As low as €79.11
-

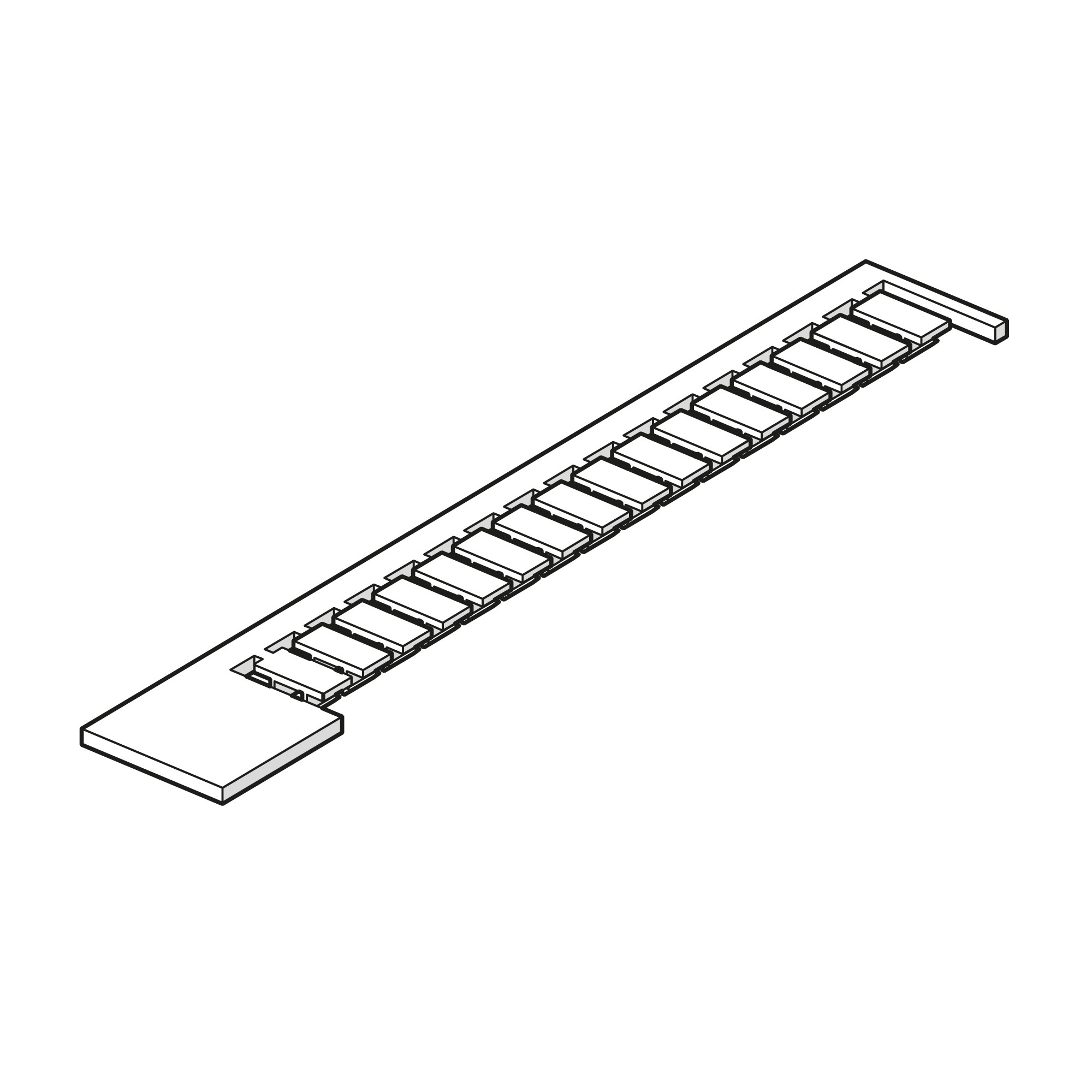

Identification plate, strip of 16 pcs. - Riegler 153922
€3.72
-

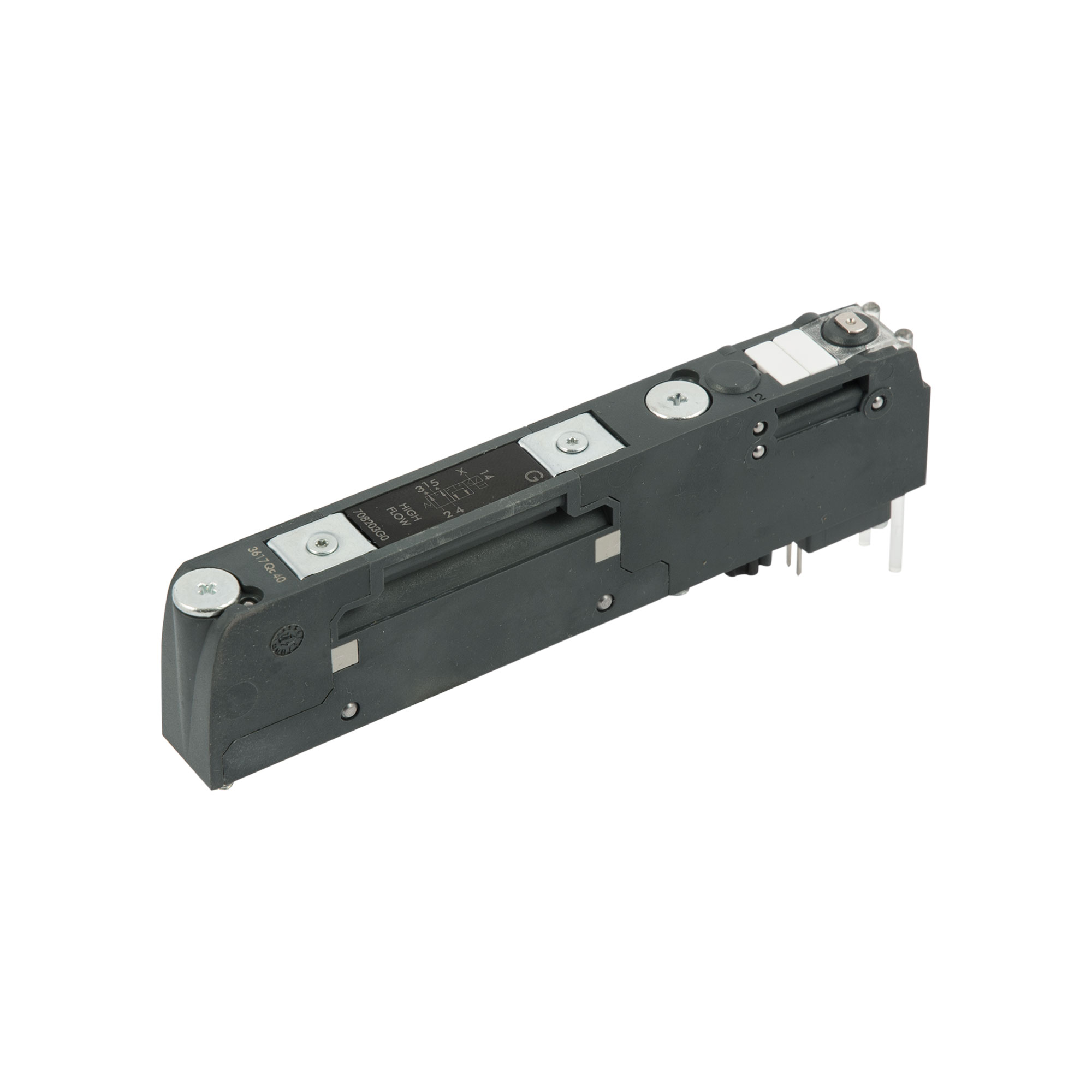

High-flow valve EB 80, 3/2-way NC, manual control monostable - Riegler 153119
€32.73
Total price
Valve disc HDM. This range covers 7 variants from 79.11 EUR. Select the version you need above.
Available variants
| Function | 2 x 3/2-Wege, NC, monostabil oder 5/3-Wege, Mitte entlüftet, 2 x 3/2-Wege, NO, monostabil oder 5/3-Wege, Mitte belüftet, 3/2-Wege, NC, monostabil und 3/2-Wege, NO, monostabil, 5/2-Wege, monostabil, 5/2-Wege, monostabil (nutzt nur einen PIN und belegt 2 Signale), 5/2-Wege, bistabil (Impulsventil), 5/3-Wege, Mitte geschlossen |
|---|
Shared technical data
| Piloting | bis zu 16 Betätigungen (z. B. 16 federrückgestellte Ventile) |
|---|---|
| Flow rate | 200 Nl/min |
| Manual control | rastend |
| Power input | 0,6 W je Betätigung |
| Material | Aluminium |
| Protection IP | IP 65 |
| Series | HDM |
| Max. temperature range | 60 °C |
| Min. temperature range | -10 °C |
| Country of origin | IT |
| Customs tariff number | 84818099 |
About Valve terminals
A valve terminal combines several directional valves, their electrical control and the shared air supply in one assembly. Instead of wiring and tubing every valve separately, one bus cable and one supply line run to the terminal. The valves handle flow rates of 200 to 800 Nl/min at operating pressures up to 10 bar.
What matters when choosing
- Define the function first. Options include 5/2-way monostable, 5/2-way bistable as an impulse valve, 5/3-way with closed centre, and combinations of 3/2-way NC and 3/2-way NO on one slice.
- The connection decides how much wiring is involved. Multipole suits manageable terminals with existing parallel wiring, the version with integrated Profibus DP connects to a fieldbus controller.
- Protection class follows the mounting location. IP 65 for direct mounting on the machine, IP 40 for a protected control cabinet.
- Flow rate from 200 to 800 Nl/min has to match the volume of the connected actuators and the required cycle time.
- Where pressure is controlled rather than only switched, the proportional modules cover a control range of 0.05 to 10 bar at a maximum inlet pressure of 10.5 bar.
Typical applications
- Central valve station for handling and assembly lines with many short cylinder strokes
- Decentralised control mounted on the machine module in IP 65 to shorten tubing runs and switching times
- Packaging and filling lines where grippers, slides and suction cups are coordinated over a fieldbus
- Applications with controlled pressure, for example contact forces set by the proportional modules between 0.05 and 10 bar
- Systems running vacuum and pressure on one terminal using versions with external pilot air
Housings are made from technopolymer, from painted aluminium or from a combination of both, sealed with NBR. The specified medium is filtered, unlubricated compressed air.
| Manufacturer | Riegler |
|---|---|
| GPSR Herstellerdaten | Riegler & Co. KG, Schützenstraße 27, DE-72574 Bad Urach, www.riegler.de |
| Artikel-Authentizität | Original product |
| Artikelzustand | New |
