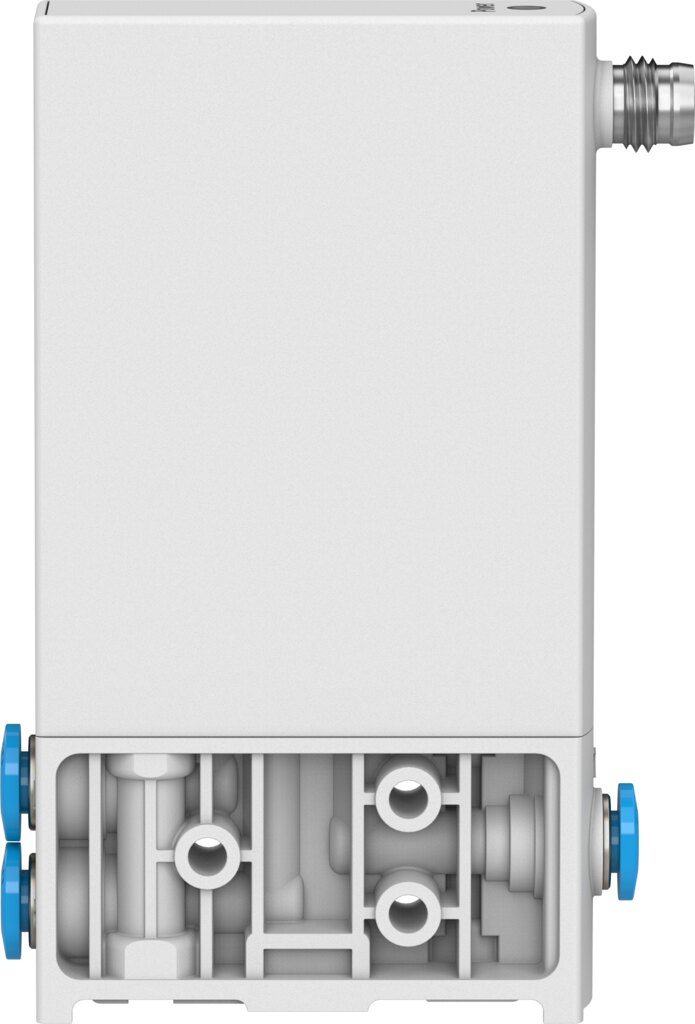

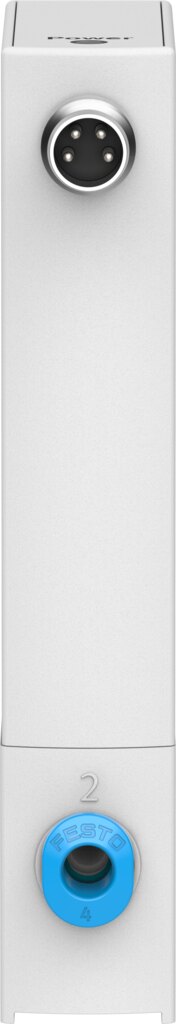

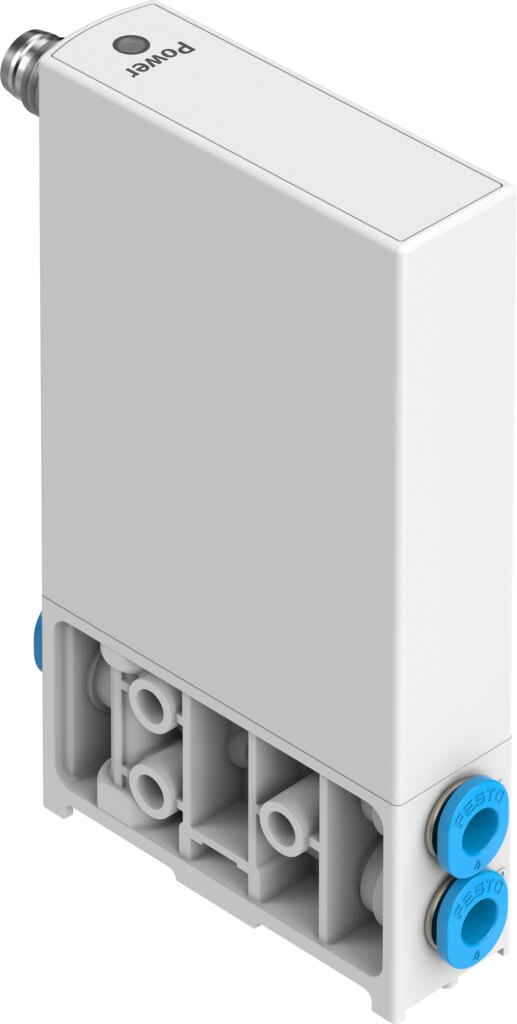

Proportional pressure regulator 0.01 to 2 bar QS-4 VEAA-L-3-D2-Q4-V2-1R1 - Festo 8153645
Proportional pressure regulator for electrical pressure setting in the range 0.01 to 2 bar, setpoint 0 - 5 V. Standard nominal flow rate 7 l/min, port QS-4, total accuracy 0.75 %FS and degree of protection IP65. Genuine Festo part 8153645.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo VEAA-L-3-D2-Q4-V2-1R1 regulates the output pressure in proportion to the 0 - 5 V setpoint, pressure regulation range 0.01 to 2 bar. It delivers a standard nominal flow rate of 7 l/min and is connected via QS-4.
Key benefits
- Air capacity: standard nominal flow rate 7 l/min
- Repeatable results: linearity 0.5 %FS, repeatability 0.4 %FS
- Low power consumption: max. 1 W
- Actual value feedback to the controller via analogue output 1 - 5 V
- Defined safety position: if the electrical power supply fails, the output pressure is maintained unregulated and may rise or fall - valve blocked
- Compact design: 15 mm x 54.5 mm x 85 mm (W x L x H)
Application and mounting
The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. The VEAA-L-3-D2-Q4-V2-1R1 is mounted with through-hole, with accessories, mounting position: any. Permissible ambient temperature 0 to 50 °C. Electrical connection of the VEAA-L-3-D2-Q4-V2-1R1: M8x1, plug, to EN 60947-5-2.
Technical data
| Type | VEAA-L-3-D2-Q4-V2-1R1 |
|---|---|
| Festo part number | 8153645 |
| Valve function | 3-way proportional pressure regulator |
| Type of piloting | Direct |
| Type of reset | Mechanical spring |
| Type of actuation | Electrical |
| Mounting position | Any |
| Sealing principle | Soft |
| Ambient temperature | 0 to 50 °C |
| Media temperature | 5 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Dimensions (W x L x H) | 15 mm x 54.5 mm x 85 mm |
| Pneumatic connection, port 1 | QS-4 |
| Pneumatic connection, port 2 | QS-4 |
| Pneumatic connection, port 3 | QS-4 |
| Material seals | NBR |
| Type of mounting | With through-hole, With accessories |
| Inlet pressure 1 | 0 to 11 bar |
| Output pressure 2 | 0.01 to 2 bar |
| Standard nominal flow rate (standardised to DIN 1343) | 7 l/min |
| Standard nominal flow rate 2-3 | 3 l/min |
| Linearity | 0.5 %FS |
| Reproducibility | 0.4 %FS |
| Hysteresis | 0.25 %FS |
| Temperature coefficient | 0.05 %/K |
| Total accuracy | 0.75 %FS |
| Product weight | 55 g |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:4:4], Inert gas |
| Note on operating and pilot medium | Lubricated operation not possible |
| Degree of protection | IP65 |
| Approval | RCM |
| KC mark | KC-EMV |
| CE mark (see declaration of conformity) | To EU EMC Directive, In accordance with EU RoHS Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Note on materials | RoHS compliant |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| Operational voltage range DC | 19 to 29 V |
| Nominal operating voltage DC | 24 V |
| Residual ripple | 10% |
| Setpoint value | 0 - 5 V |
| Signal range analogue output | 1 - 5 V |
| Accuracy analogue output in ± %FS | 2 %FS |
| Max. electrical power consumption | 1 W |
| Reverse polarity protection | For all electrical connections |
| Short circuit current rating | For all electrical connections |
| Safety instructions | Safety position VEAA/VEAB: if the electrical power supply fails, the output pressure is maintained unregulated and may rise or fall - valve blocked. |
| Display type | LED |
| Electrical connection | M8x1, Plug, To EN 60947-5-2 |
| Material housing | Reinforced PA |
| Weight | 0.09 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VEAA-L-3-D2-Q4-V2-1R1 |
| EAN | 4052568579838 |
| Zolltarifnummer | 84811099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Material | PA |
| Control range max. [bar] | 2 |
| Seal material | NBR |
| Medium | Compressed air, neutral gases |
| Function | 3-way proportional pressure regulating valve |
| Inlet pressure max. [bar] | 11 |
| Flow rate [l/min] | 7 |
| Actuation type | Electrical |
| Druckregelbereich [bar] | 0,01 bis 2 |
| Medientemperatur [°C] | 5 bis 50 |
| Norm | DIN EN 60947-5-2 |
| Operating voltage | 24 V DC |
| Series | VEAA |
| Pneumatic connection | QS-4 |
| Protection rating | IP65 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
