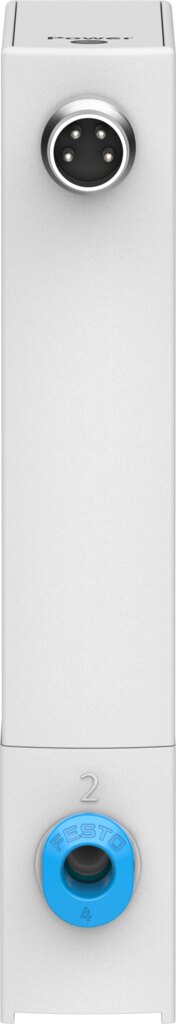

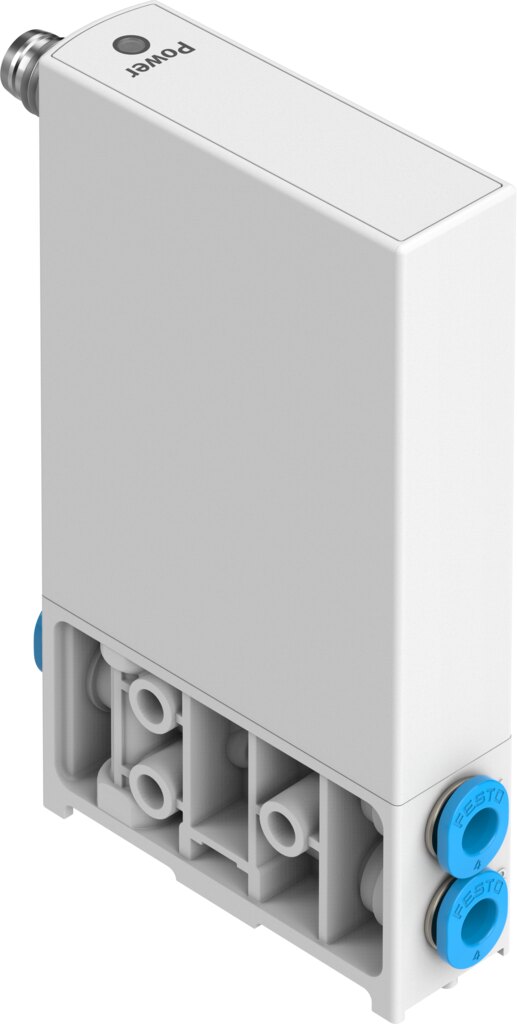

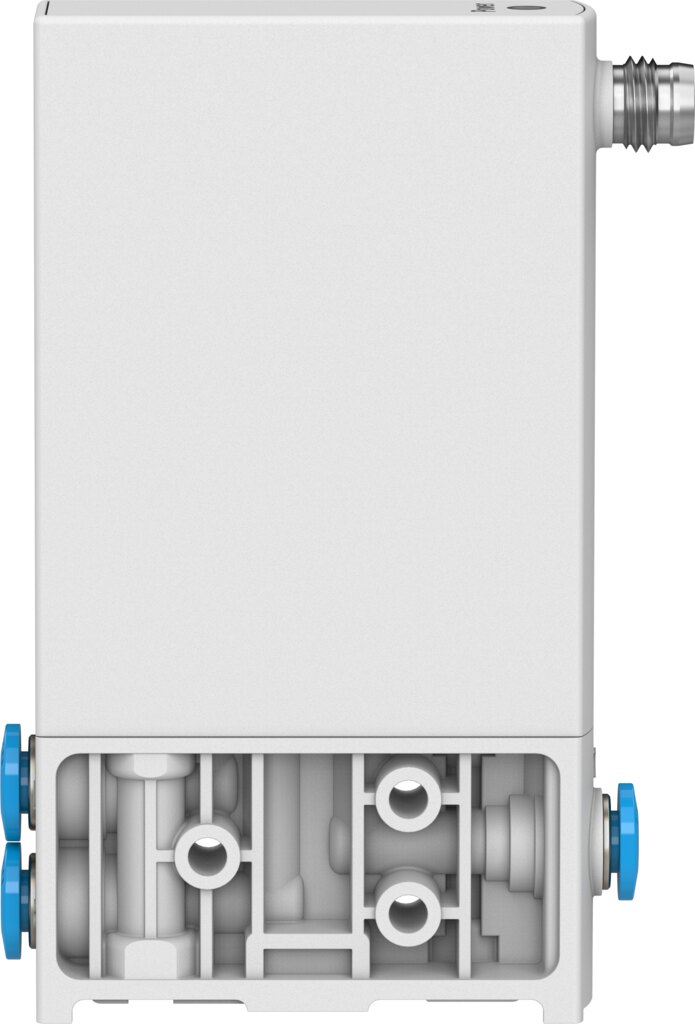

Proportional pressure regulator 0.05 to 10 bar QS-4 VEAA-L-3-D11-Q4-V2-1R1 - Festo 8126196

Festo ✓ Original product Brand new

Electrically adjustable pressure from 0.05 to 10 bar: proportional pressure regulator VEAA-L-3-D11-Q4-V2-1R1 with 0 - 5 V setpoint. Standard nominal flow rate 13 l/min, port QS-4, total accuracy 0.75 %FS and degree of protection IP65. Genuine Festo part 8126196.

Net
€386.26
excl. VAT
Item FES-8126196
Manufacturer no. VEAA-L-3-D11-Q4-V2-1R1
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The proportional pressure regulator VEAA-L-3-D11-Q4-V2-1R1 sets the output pressure electrically in the range 0.05 to 10 bar, specified via a 0 - 5 V setpoint signal. It delivers a standard nominal flow rate of 13 l/min and is connected via QS-4.

Key benefits

  • Repeatable results: linearity 0.5 %FS, repeatability 0.4 %FS
  • Air capacity: standard nominal flow rate 13 l/min
  • Low power consumption: max. 1 W
  • Actual value feedback to the controller via analogue output 1 - 5 V
  • Defined safety position: if the electrical power supply fails, the output pressure is maintained unregulated and may rise or fall - valve blocked
  • Compact design: 15 mm x 54.5 mm x 85 mm (W x L x H)

Application and mounting

The operating medium is compressed air to ISO 8573-1:2010 [7:4:4] and inert gas. Lubricated operation is not possible. Mounting the VEAA-L-3-D11-Q4-V2-1R1: with through-hole, with accessories, mounting position any. Permissible ambient temperature 0 to 50 °C. Electrical connection of the VEAA-L-3-D11-Q4-V2-1R1: M8x1, plug, to EN 60947-5-2.

Technical data

TypeVEAA-L-3-D11-Q4-V2-1R1
Festo part number8126196
Valve function3-way proportional pressure regulator
Type of pilotingDirect
Type of resetMechanical spring
Type of actuationElectrical
Mounting positionAny
Sealing principleSoft
Ambient temperature0 to 50 °C
Media temperature5 to 50 °C
Storage temperature-20 to 70 °C
Dimensions (W x L x H)15 mm x 54.5 mm x 85 mm
Pneumatic connection, port 1QS-4
Pneumatic connection, port 2QS-4
Pneumatic connection, port 3QS-4
Material sealsNBR
Type of mountingWith through-hole, With accessories
Inlet pressure 10 to 11 bar
Output pressure 20.05 to 10 bar
Standard nominal flow rate (standardised to DIN 1343)13 l/min
Standard nominal flow rate 2-37.5 l/min
Linearity0.5 %FS
Reproducibility0.4 %FS
Hysteresis0.25 %FS
Temperature coefficient0.05 %/K
Total accuracy0.75 %FS
Product weight55 g
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4], Inert gas
Note on operating and pilot mediumLubricated operation not possible
Degree of protectionIP65
ApprovalRCM
KC markKC-EMV
CE mark (see declaration of conformity)To EU EMC Directive, In accordance with EU RoHS Directive
UKCA marking (see declaration of conformity)To UK RoHS instructions
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Corrosion resistance class CRC2 - Moderate corrosion stress
Operational voltage range DC19 to 29 V
Nominal operating voltage DC24 V
Residual ripple10%
Setpoint value0 - 5 V
Signal range analogue output1 - 5 V
Accuracy analogue output in ± %FS2 %FS
Max. electrical power consumption1 W
Reverse polarity protectionFor all electrical connections
Short circuit current ratingFor all electrical connections
Safety instructionsSafety position VEAA/VEAB: if the electrical power supply fails, the output pressure is maintained unregulated and may rise or fall - valve blocked.
Display typeLED
Electrical connectionM8x1, Plug, To EN 60947-5-2
Material housingReinforced PA
Weight0.075 kg
ManufacturerFesto
Hersteller-NrVEAA-L-3-D11-Q4-V2-1R1
EAN4052568465681
Zolltarifnummer84811099
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialPA
Control range max. [bar]10
Seal materialNBR
MediumCompressed air, neutral gases
Function3-way proportional pressure regulating valve
Inlet pressure max. [bar]11
Flow rate [l/min]13
Actuation typeElectrical
Druckregelbereich [bar]0,05 bis 10
Medientemperatur [°C]5 bis 50
NormDIN EN 60947-5-2
Operating voltage24 V DC
SeriesVEAA
Pneumatic connectionQS-4
Protection ratingIP65
Temperaturbereich0-50 °C
Temperature (max.)50
