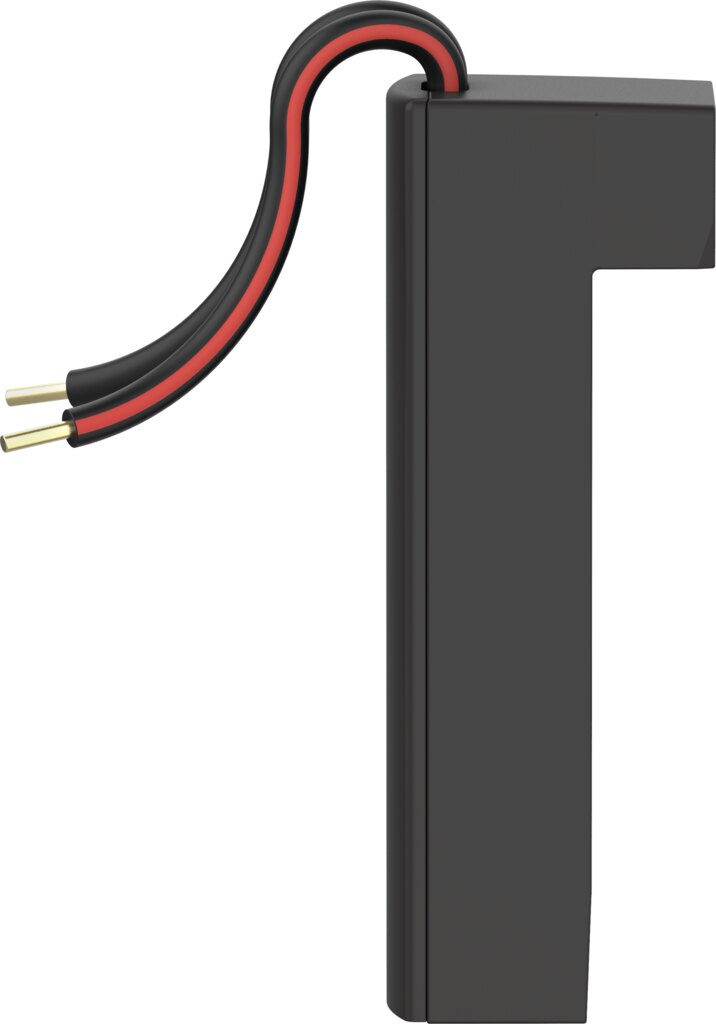

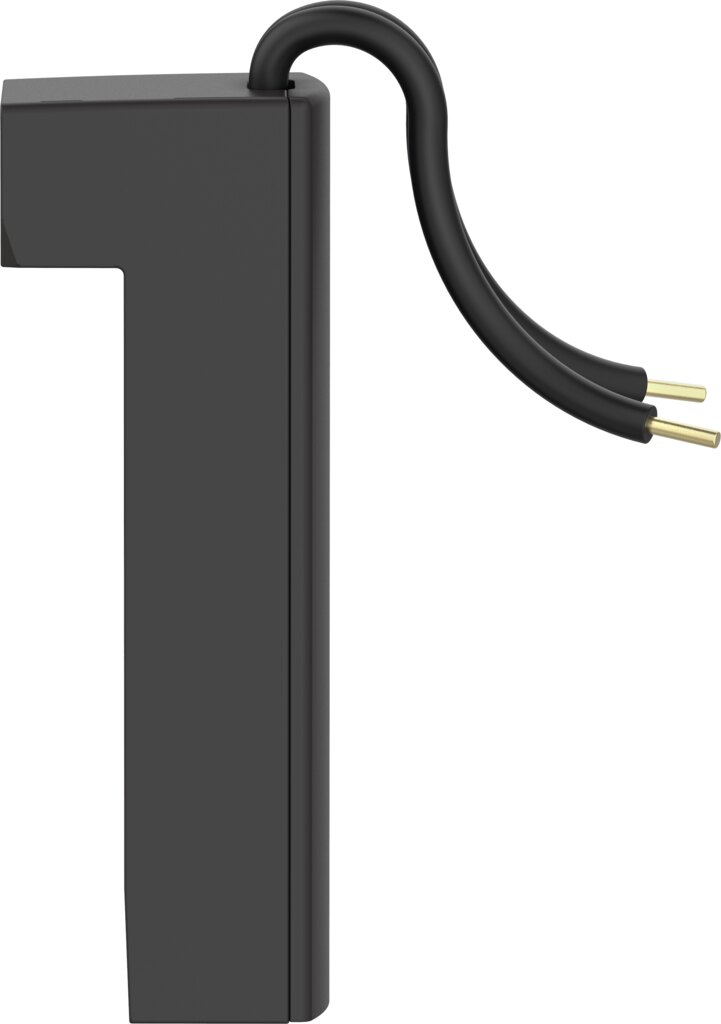

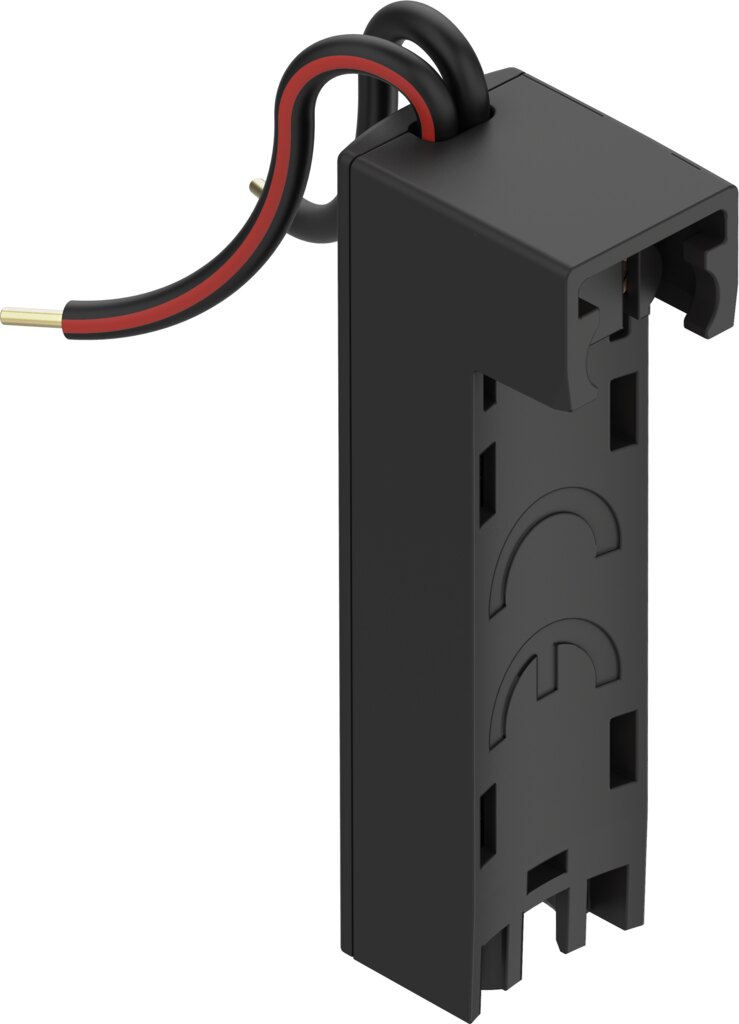

Electrical connection plate 24 V DC IP40 VAVE-K1-7-5YL1-LR - Festo 8115100
The electrical connection plate VAVE-K1-7-5YL1-LR from Festo forms the electrical interface directly on the solenoid valve. Key values: nominal operating voltage 24 V DC, operating voltage range 12 to 26 V DC and holding current reduction.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The electrical connection plate VAVE-K1-7-5YL1-LR forms the electrical interface directly on the solenoid valve. Key values: nominal operating voltage 24 V DC, operating voltage range 12 to 26 V DC and holding current reduction.
Benefits
- Nominal operating voltage 24 V DC for control from standard controllers
- Operating voltage range 12 to 26 V DC
- Holding current reduction lowers power consumption in the held state
- LED signal status display for quick checks on site
- Degree of protection IP40, for installation in a protected environment
- Electrical connection twin wire, Open end
Use
VAVE-K1-7-5YL1-LR is used for new installations or as a replacement where voltage and connection type must match the existing valve coil. A typical task is replacing VAVE-K1-7-5YL1-LR on existing valves without touching the pneumatics.
Technical data
| Order code | VAVE-K1-7-5YL1-LR |
|---|---|
| Festo part number | 8115100 |
| Size | 7 |
| Cable characteristic | Basic |
| Reverse polarity protection | For operating voltage |
| Additional functions | Holding current reduction |
| Signal status display | LED |
| Operational voltage range DC | 12 to 26 V |
| Permissible voltage fluctuations | +/-10% |
| Nominal operating voltage DC | 24 V |
| Pollution degree | 2 |
| Overvoltage category | II |
| Approval | RCM |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Degree of protection | IP40 |
| Ambient temperature | 0 to 50 °C |
| Storage temperature | -20 to 70 °C |
| Mounting position | Any |
| Bending radius, fixed cable | 11 mm |
| Bending radius, moving cable | 16.5 mm |
| Product weight | 3.3 g |
| Electrical connection | Twin wire, Open end |
| Cable structure | 2 x 0.08 mm² |
| Cable diameter | 1.1 mm |
| Cable length | 0.5 m |
| Protective conductor connection | Not provided |
| Type of mounting | Push-on, Latching |
| Housing colour | Black |
| Note on materials | RoHS compliant |
| Material housing | PC |
| Material insulating sheath | PVC |
| Weight | 0.005 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAVE-K1-7-5YL1-LR |
| EAN | 4052568459598 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Colour | Black |
| Material | PC |
| Operating voltage | 24 V DC |
| Series | VAVE |
| Protection rating | IP40 |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
