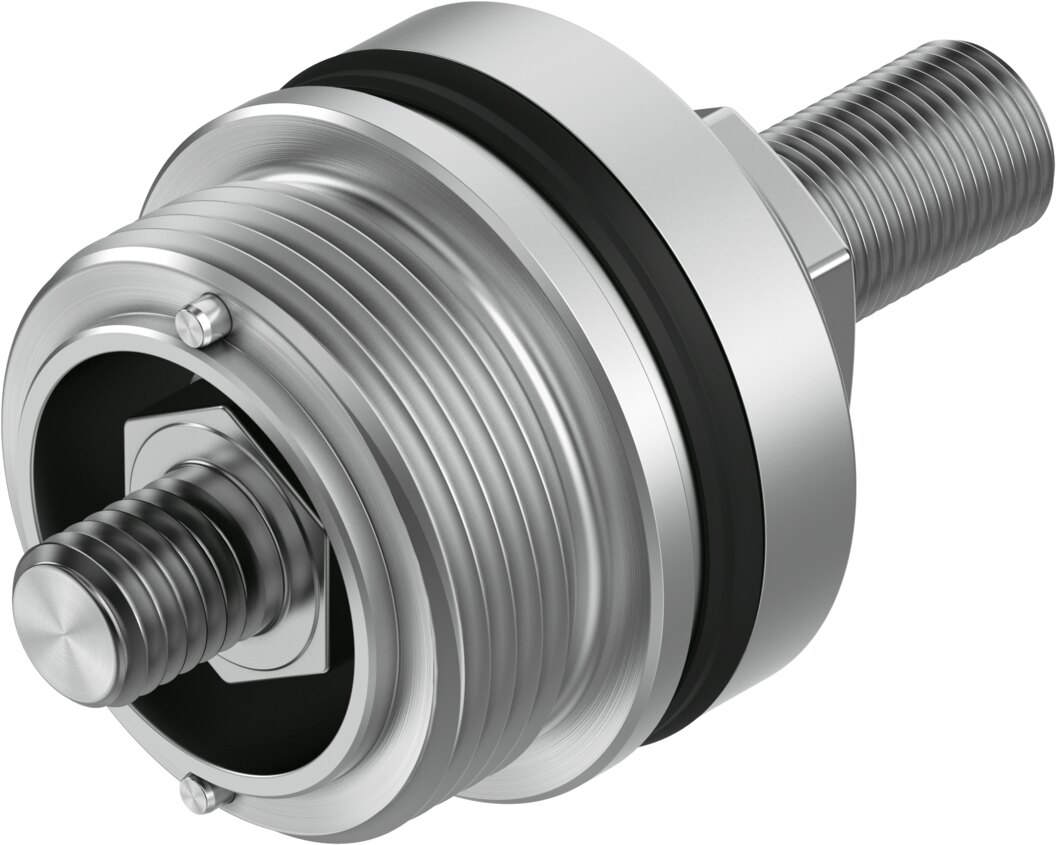

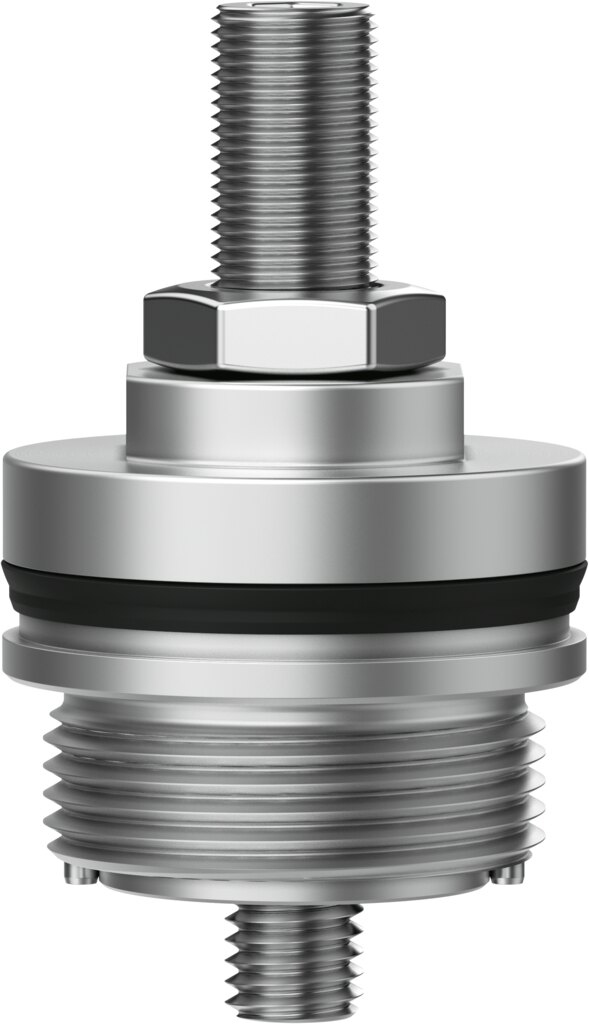

Stroke reduction opening stroke limitation ATEX VAVA-F12-H-H1 - Festo 8089993
The stroke reduction VAVA-F12-H-H1 limits the opening stroke, approved for ATEX zones 1, 2, 21 and 22. Key data: degree of protection IP6X, corrosion resistance class CRC 3 for high corrosion stress, ambient temperature -50 to 100 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The stroke reduction VAVA-F12-H-H1 limits the opening stroke, approved for ATEX zones 1, 2, 21 and 22. Degree of protection IP6X, product weight 253 g.
At a glance
- Degree of protection IP6X
- Corrosion resistance class CRC 3 for high corrosion stress
- Ambient temperature -50 to 100 °C
- Seals made of EPDM, nut made of high-alloy stainless steel, screws made of high-alloy stainless steel
- LABS (PWIS) conformity VDMA24364-B2-L
- Product weight 253 g
Areas of use
Festo lists the VAVA-F12-H-H1 under stop elements. Manufacturer note: the SIL certification for the entire product is invalidated when used with angle seat valve VZXA.
Technical data
| Order type | VAVA-F12-H-H1 |
|---|---|
| Festo part number | 8089993 |
| Design | opening stroke limitation |
| Explosion protection | Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX) |
| Corrosion resistance class CRC | 3 - high corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B2-L |
| Instructions on use | the SIL certification for the entire product is invalidated when used with angle seat valve VZXA |
| Degree of protection | IP6X |
| Ambient temperature | -50 to 100 °C |
| Storage temperature | -10 to 60 °C |
| Mounting position | any |
| Product weight | 253 g |
| Note on materials | RoHS compliant |
| Material seals | EPDM |
| Material nut | high-alloy stainless steel |
| Material screws | high-alloy stainless steel |
| Material shock absorber | high-alloy steel |
| Material connector | high-alloy stainless steel |
| Customs tariff number | 84129070 |
| Weight | 0.28 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAVA-F12-H-H1 |
| EAN | 4052568550417 |
| Zolltarifnummer | 84129070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Temperature (max.) | 100 |
