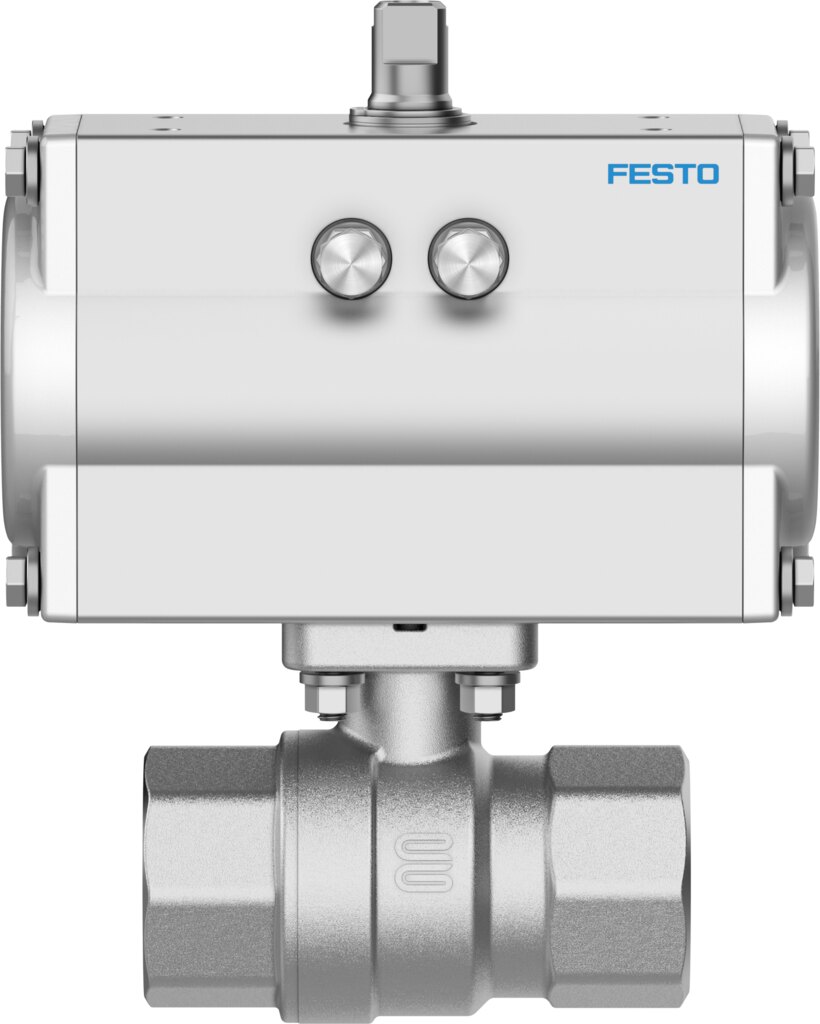

Ball valve unit with quarter turn actuator nickel-plated brass Rp1/4 DN 15 PN 40 VAPB-A-1/4-F-40-F03-PA10 - Festo 8191917

Festo ✓ Original product Brand new

Ball valve unit VAPB-A-1/4-F-40-F03-PA10 with pneumatic quarter turn actuator for DN 15 lines up to PN 40, mounted and ready for use. Connection Rp1/4, housing in brass, nickel-plated, Kv 5.9 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€210.88
excl. VAT
Item FES-8191917
Manufacturer no. VAPB-A-1/4-F-40-F03-PA10
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The ball valve unit VAPB-A-1/4-F-40-F03-PA10 brings ball valve and pneumatic quarter turn actuator as a mounted unit into DN 15 lines up to PN 40. The Kv value is 5.9 m³/h.

Benefits

  • Kv value 5.9 m³/h in DN 15
  • Valve rated for nominal pressure PN 40
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Media from -10 to 200 °C
  • Housing in brass, nickel-plated 2.0402, CW617N
  • Actuator interface F03 to ISO 5211

Applications

Festo lists the following media for VAPB-A-1/4-F-40-F03-PA10: compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable.

Technical data

FeatureValue
TypeVAPB-A-1/4-F-40-F03-PA10
Festo part number8191917
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1/4
Switching position indicatorSlot direction = flow direction
Flange hole patternF03
Nominal size DN15
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN40
Breakaway torque at differential pressure, nominal pressure, process valve PN5 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv5.9 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2.0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2.0401, CW614N
Material shaftBrass
Material number shaft2.0401, CW614N
Product weight1470 g
Corrosion resistance class CRC1 - Low corrosion stress
Weight1.5 kg
ManufacturerFesto
Hersteller-NrVAPB-A-1/4-F-40-F03-PA10
EAN4052568715786
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass (CW617N)
ThreadRp 1/4
Nominal size DN [mm]15
Nominal pressure PN [bar]40
Seal materialHNBR, PTFE
Housing materialNickel-plated brass (CW617N)
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormISO 5211
SeriesVAPB
