Kugelhahneinheit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928
Kugelhahneinheit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928 Kugelhahneinheit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928 Kugelhahneinheit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928 Kugelhahneinheit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928

Images are examples, some edited with AI. The technical data are authoritative. AI notice

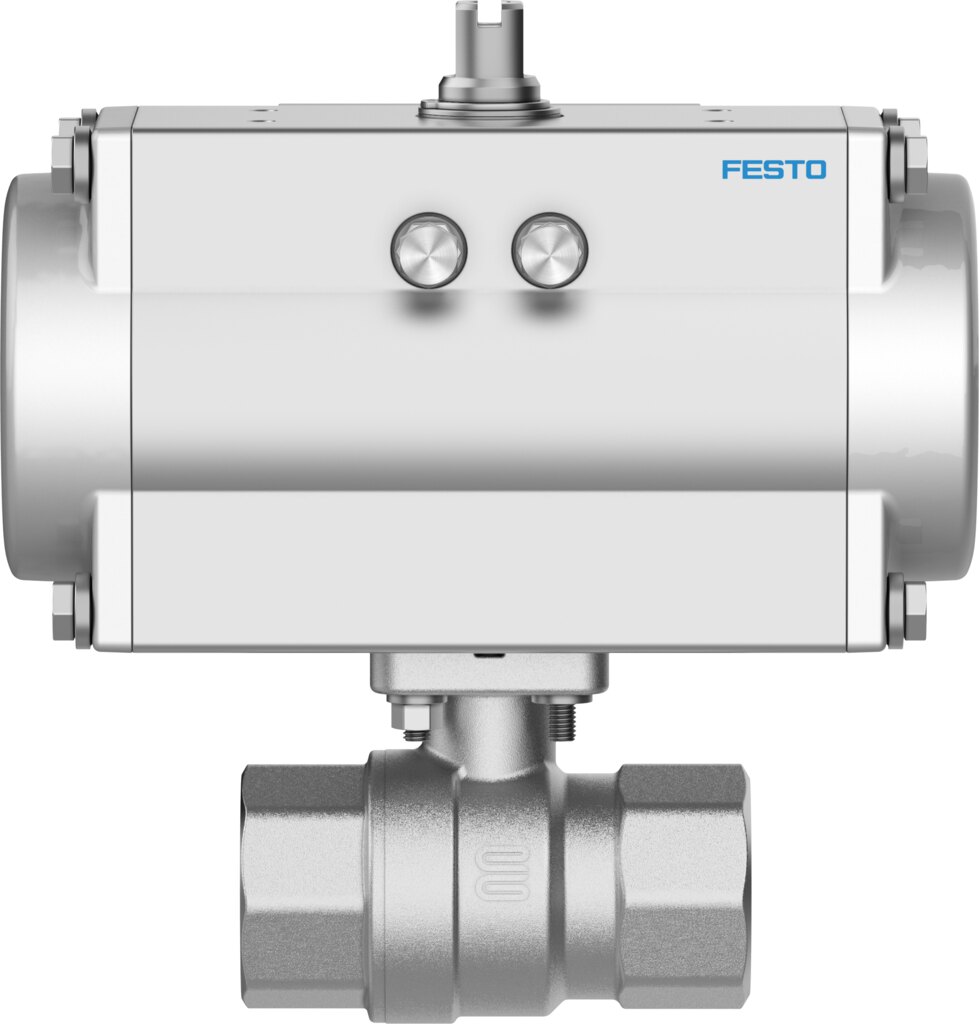

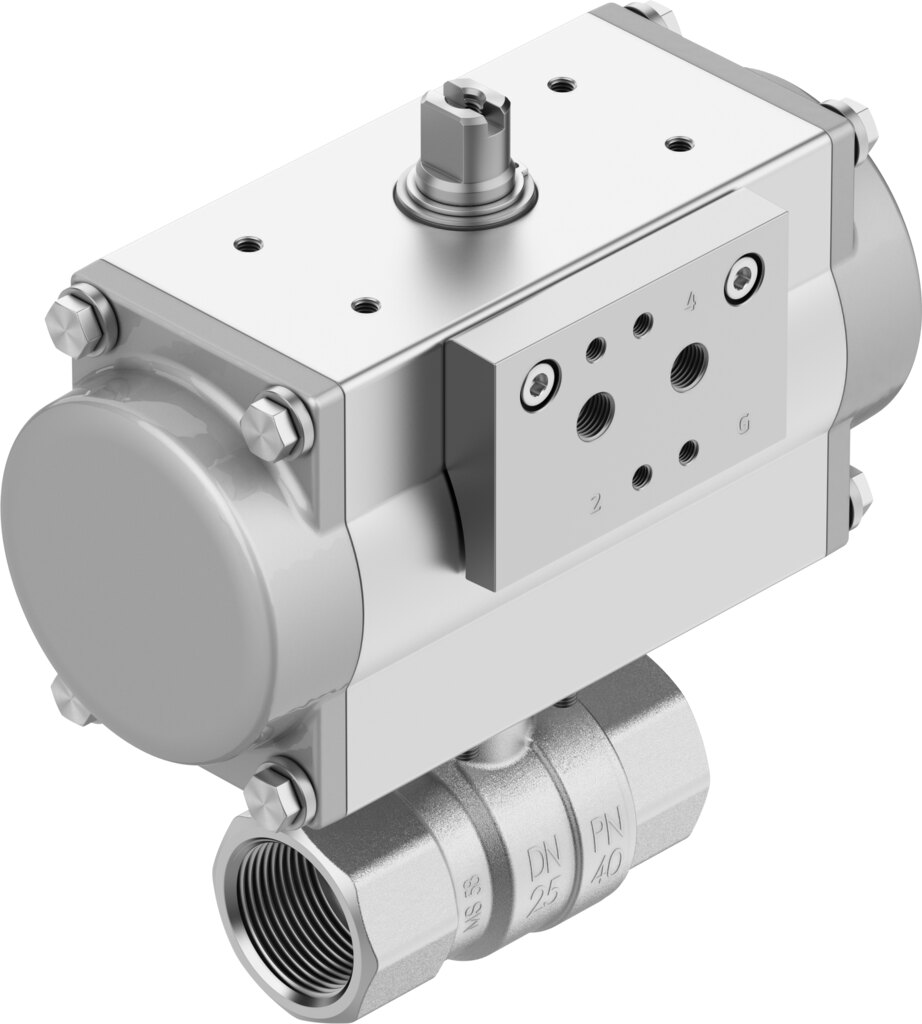

Ball valve unit VAPB-A-1/2-F-40-F03-PB20 - Festo 8191928

Festo ✓ Original product Brand new
Net
€253.70
excl. VAT
Item FES-8191928
Manufacturer no. VAPB-A-1/2-F-40-F03-PB20
Save Compare
Question about this item
Datasheet (PDF)
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Technical data

DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1/2
Switching position indicatorSlot direction = flow direction
Flange hole patternF03
Nominal size DN15
Valve function2/2
Flow directionReversible
Operating pressure5.5 ... 8 bar
Nominal pressure PN40
Breakaway torque at differential pressure, nominal pressure, process valve PN5 Nm
Based on standardISO 5211
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water – no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 ... 200 °C
Flow rate Kv17 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2,0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2,0401, CW614N
Material shaftBrass
Material number shaft2,0401, CW614N
Product weight1820 g
Corrosion resistance class CRC1 - Low corrosion stress
Weight2.1 kg
ManufacturerFesto
Hersteller-NrVAPB-A-1/2-F-40-F03-PB20
EAN4052568715915
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
