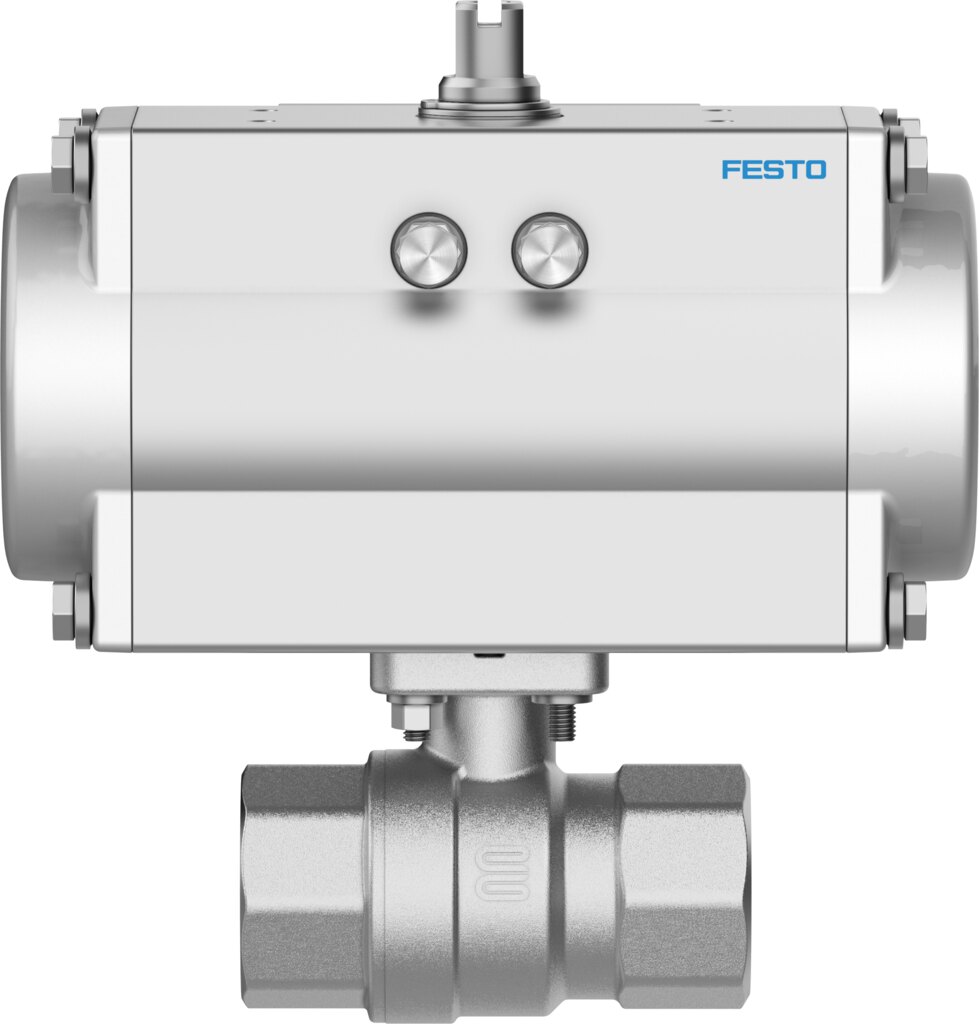

Ball valve unit with quarter turn actuator nickel-plated brass Rp1 1/4 DN 32 PN 40 VAPB-A-1 1/4-F-40-F0405-PB60 - Festo 8191931

Festo ✓ Original product Brand new

Ball valve unit VAPB-A-1 1/4-F-40-F0405-PB60 with pneumatic quarter turn actuator for DN 32 lines up to PN 40, mounted and ready for use. Connection Rp1 1/4, housing in brass, nickel-plated, Kv 121 m³/h. Actuator for operating pressure 5.5 to 8 bar.

Net
€340.37
excl. VAT
Item FES-8191931
Manufacturer no. VAPB-A-1 1/4-F-40-F0405-PB60
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

For remotely operated shut-off in DN 32 lines, VAPB-A-1 1/4-F-40-F0405-PB60 supplies valve and quarter turn actuator from one source, rated for PN 40. Flow rate Kv 121 m³/h.

Key advantages

  • Flow rate Kv 121 m³/h at nominal size DN 32
  • Nominal pressure PN 40 for the valve body
  • Media temperature -10 to 200 °C
  • Housing in brass, nickel-plated 2.0402, CW617N
  • Quarter turn actuator for operating pressure 5.5 to 8 bar
  • Corrosion resistance class CRC 1

Applications

Suitable for compressed air to ISO 8573-1:2010 [-:-:-], inert gases, water - no steam, neutral fluids, other media on request. Mounting position is freely selectable.

Technical data

FeatureValue
TypeVAPB-A-1 1/4-F-40-F0405-PB60
Festo part number8191931
DesignQuarter turn actuator
Type of actuationPneumatic
Sealing principleSoft
Mounting positionAny
Type of mountingInline installation
Connection Process valveRp1 1/4
Switching position indicatorSlot direction = flow direction
Flange hole patternF0405
Nominal size DN32
Valve function2/2
Flow directionReversible
Operating pressure5.5 to 8 bar
Nominal pressure PN40
Breakaway torque at differential pressure, nominal pressure, process valve PN15 Nm
Based on standardEN 10226-1
MediumCompressed air to ISO 8573-1:2010 [-:-:-], Inert gases, Water - no steam, Neutral fluids, Other media on request
Operating mediumCompressed air to ISO 8573-1:2010 [7:4:4]
Note on operating and pilot mediumLubricated operation possible (in which case lubricated operation will always be required)
Media temperature-10 to 200 °C
Flow rate Kv121 m³/h
Note on materialsRoHS compliant
LABS (PWIS) conformityVDMA24364 zone III
Material housingBrass, nickel-plated
Material number housing2.0402, CW617N
Material seat sealPTFE
Material sealsHNBR, PTFE
Material ballBrass, Hard chrome-plated
Material number ball2.0402, CW617N
Material shaftBrass
Material number shaft2.0401, CW614N
Product weight4660 g
Corrosion resistance class CRC1 - Low corrosion stress
Weight5 kg
ManufacturerFesto
Hersteller-NrVAPB-A-1 1/4-F-40-F0405-PB60
EAN4052568715946
Zolltarifnummer84818081
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
MaterialNickel-plated brass (CW617N)
ThreadRp 1 1/4
Nominal size DN [mm]32
Nominal pressure PN [bar]40
Seal materialHNBR, PTFE
Housing materialNickel-plated brass (CW617N)
Function2/2
Actuation typepneumatic
Medientemperatur [°C]-10 bis 200
NormDIN EN 10226-1
SeriesVAPB
