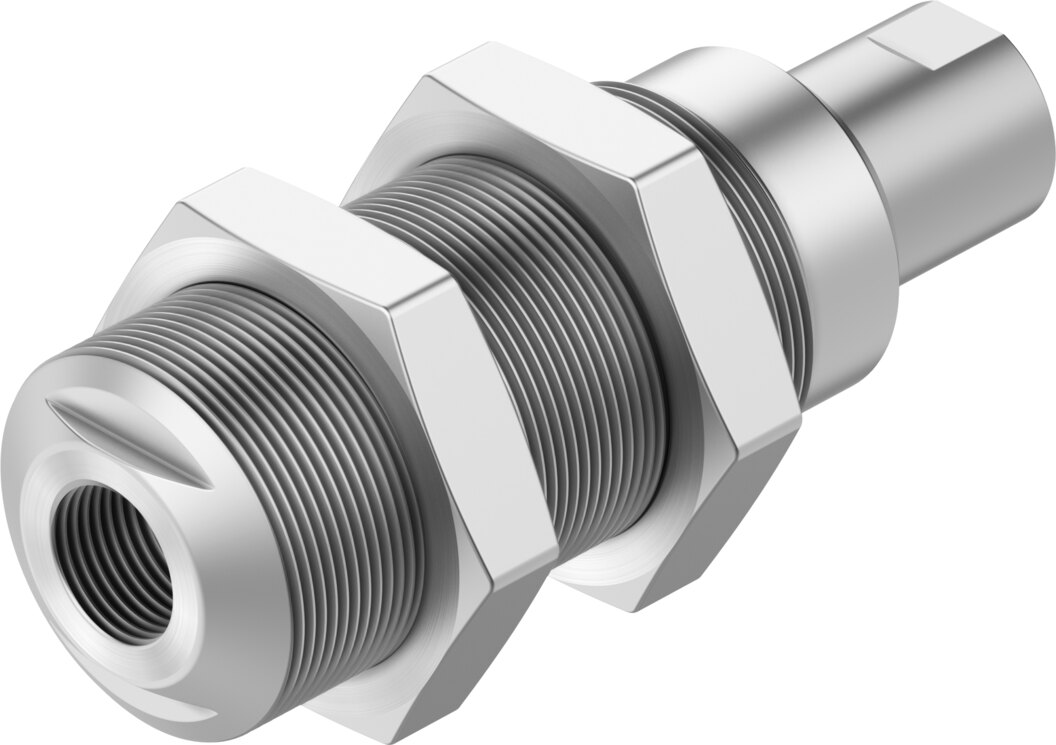

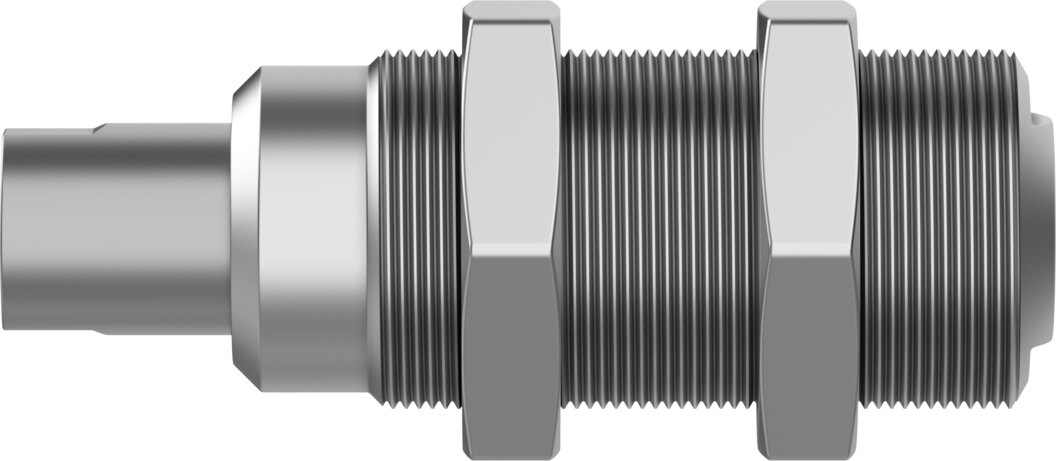

Height compensator for suction cups stroke 10 mm G1/8 VAL-1/8-10-F1A - Festo 8214723
The Festo VAL-1/8-10-F1A height compensator lets the suction cup spring back by up to 10 mm, compensating for different workpiece heights. Connection female thread G1/8. Works in a pressure range of -0.95 to 8 bar.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo VAL-1/8-10-F1A height compensator lets the suction cup spring back by up to 10 mm, compensating for different workpiece heights.
Benefits
- Height compensation of 10 mm for different workpiece heights
- Suction cup mounting female thread G1/8, vacuum connection female thread G1/8
- Works in a pressure range of -0.95 to 8 bar
- Suitable for battery production with reduced Cu/Zn/Ni values (F1a)
- LABS (PWIS) conformity VDMA24364-B1/B2-L
Typical applications
On the suction cup side it has female thread G1/8, the female thread G1/8 vacuum connection is on top, mounting with male thread M22x1.5.
Technical data
| Type | VAL-1/8-10-F1A |
|---|---|
| Festo part number | 8214723 |
| Height compensator for suction-cup holder | 10 mm |
| Mounting position | Any |
| Design | Vacuum port on top |
| Operating pressure | -0.95 to 8 bar |
| Operating medium | Compressed air to ISO 8573-1:2010 [7:-:-] |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Ambient temperature | -10 to 60 °C |
| Product weight | 62 g |
| Type of mounting | With male thread M22x1.5 |
| Suction cup mounting | Female thread G1/8 |
| Vacuum connection | Female thread G1/8 |
| Note on materials | RoHS compliant |
| Material seals | NBR |
| Material housing | Aluminium |
| Material holder | Aluminium, POM, high-alloy stainless steel |
| Weight | 0.07 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAL-1/8-10-F1A |
| EAN | 4052568653613 |
| Zolltarifnummer | 84799070 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 IG |
| Seal material | NBR |
| Housing material | Aluminium |
| Medium | Compressed air |
| Thread type | Internal thread |
| Betriebsdruck max [bar] | 8 |
| Pneumatic connection | G1/8 IG |
| Temperaturbereich | -10-60 °C |
| Temperature (max.) | 60 |
