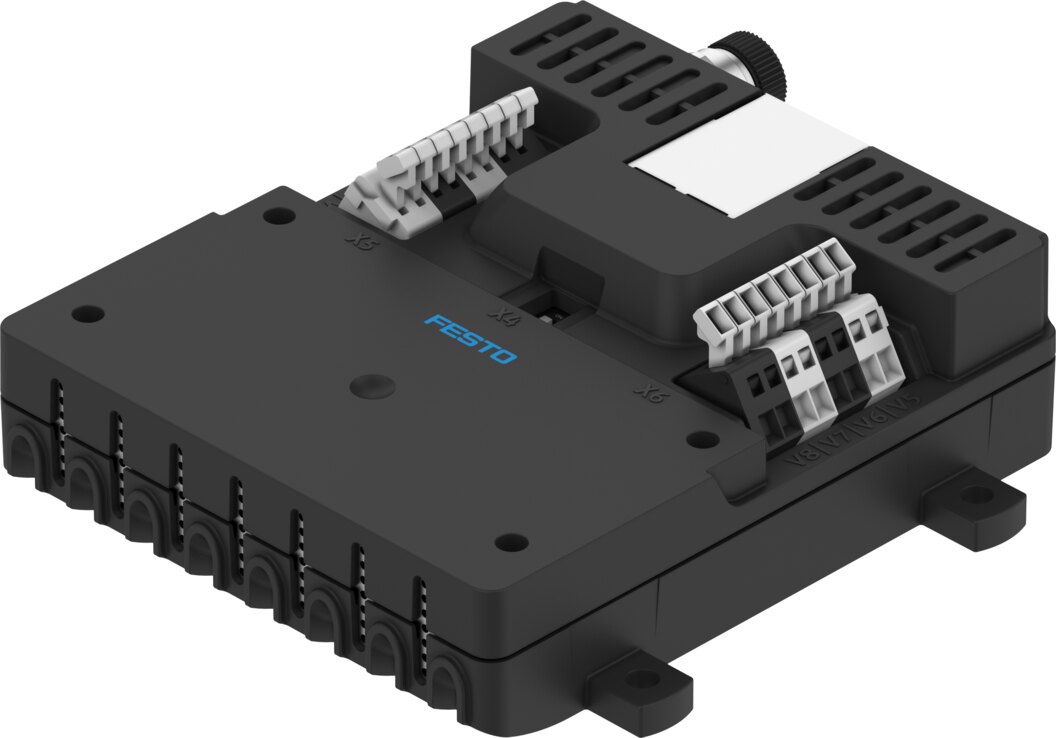

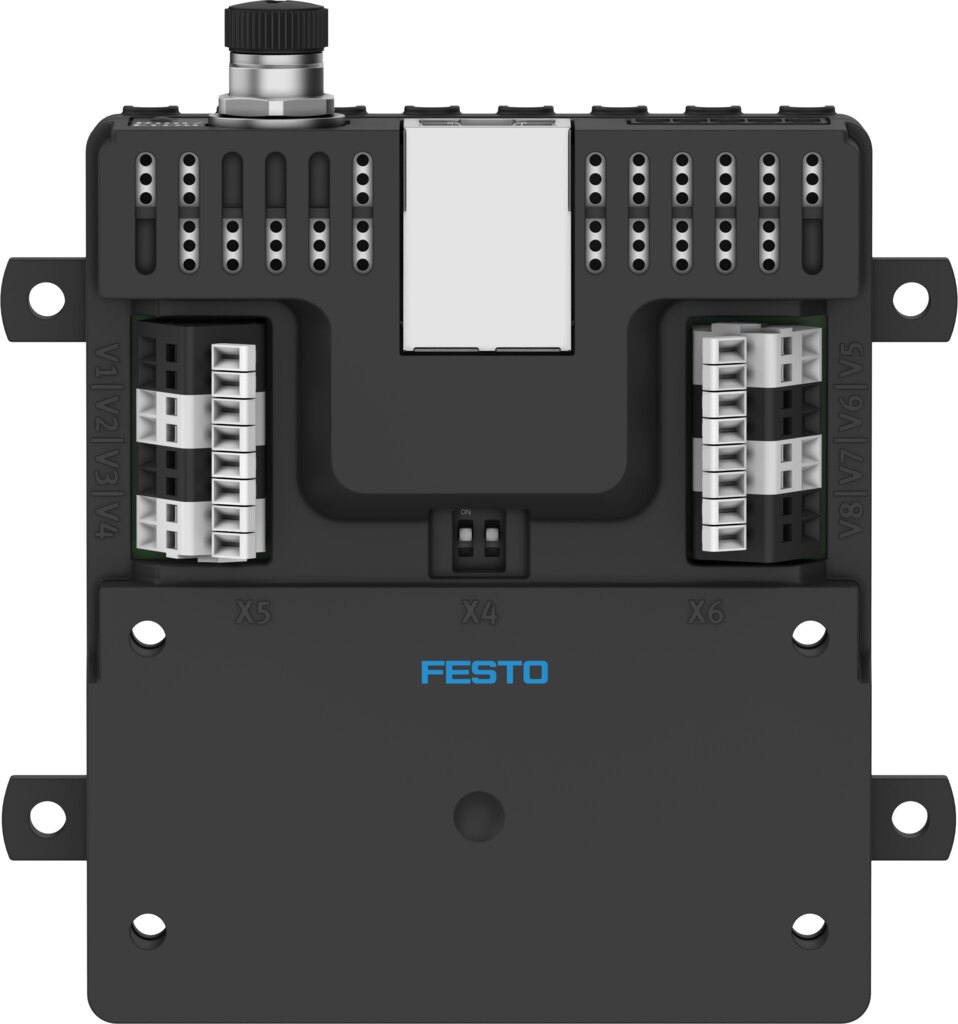

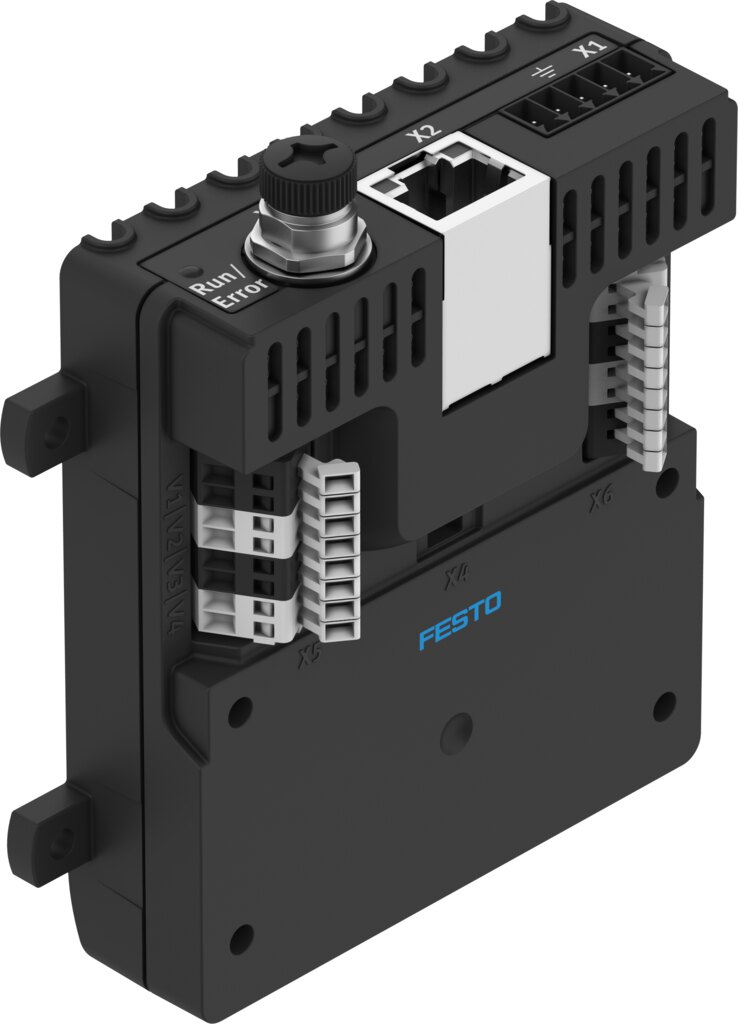

Valve control module Modbus TCP 8 outputs VAEM-V-S8EPRS2 - Festo 8088772
The valve control module VAEM-V-S8EPRS2 drives up to 8 valves with adjustable pick-up and holding current per output. Nominal operating voltage 24 V DC, load voltage range 8 to 24 V, degree of protection IP20.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The valve control module VAEM-V-S8EPRS2 drives up to 8 valves with adjustable pick-up and holding current per output.
Benefits
- 8 outputs
- Nominal operating voltage 24 V DC, permissible fluctuation ± 10 %
- Modbus TCP
- Pick-up current 20 to 1000 mA per output, holding current 20 to 400 mA
- Degree of protection IP20
- Ambient temperature 0 to 50 °C
Applications
Mounting of the VAEM-V-S8EPRS2: with through-hole, mounting position any. CE marking to EU EMC Directive, to EU Low Voltage Directive. Approval: RCM mark.
Technical data
| Feature | Value |
|---|---|
| Dimensions (W x L x H) | 92 mm x 100 mm x 28 mm |
| Diagnostics via LED | Error, Run |
| Diagnostics via bus | Undervoltage load supply |
| Mounting position | Any |
| Parameterisation | Parameter setting per output |
| Reverse polarity protection | For operating voltage |
| Operator controls | DIP switch for Baud rate |
| Intrinsic current consumption at operating voltage | 36 mA |
| Load voltage range DC | 8 to 24 V |
| Maximum number of outputs | 8 |
| Pick-up current, per output | 20 to 1000 mA |
| Holding current, per output | 20 to 400 mA |
| Pick-up current, total | 4 A |
| Holding current, total | 1.8 A |
| Inrush time | 100 ms |
| Time resolution | 0.2 ms |
| Nominal operating voltage DC | 24 V |
| Pollution degree | 2 |
| Permissible voltage fluctuations | ± 10 % |
| Power supply, function | Power supply |
| Power supply, connection type | Plug |
| Power supply, connection system | Circuit board connector, pitch 3.5 mm |
| Power supply, number of pins/wires | 5 |
| Power supply, connection pattern | 00997301 |
| Communication interface, connection type | Socket |
| Communication interface, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Communication interface, number of pins/cores | 4 |
| Communication interface, plug pattern | 00991872 |
| Communication interface, function | Parameterisation and commissioning |
| Communication interface, protocol | ASCII via RS232 |
| Communication interface, transmission rate | 9.6 - 115.2 kBd |
| Communication interface, galvanic isolation | No |
| Ethernet interface, connection type | Socket |
| Ethernet interface, connection system | RJ45 |
| Ethernet interface, transmission rate | 10/100 Mbit/s |
| Ethernet interface, function | Parameterisation and commissioning |
| Ethernet interface, protocol | Modbus TCP |
| Ethernet interface, connection pattern | 00995789 |
| Electrical connection output, connection type | 2x terminal strip |
| Electrical connection output, connector system | Spring-loaded terminal |
| Electrical connection output, number of connections/cores | 8 |
| Electrical connection output, connection pattern | 00997304 |
| Electrical connection for output, conductor cross section | 0.08 to 0.5 mm² |
| Electrical connection output, function | Switching output |
| CE mark (see declaration of conformity) | To EU EMC Directive, To EU Low Voltage Directive |
| UKCA marking (see declaration of conformity) | To UK RoHS instructions |
| Vibration resistance | Transport application test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
| Shock resistance | Shock test with severity level 2 to FN 942017-5 and EN 60068-2-27 |
| Corrosion resistance class CRC | 0 - no corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Relative air humidity | Non-condensing |
| Degree of protection | IP20 |
| Ambient temperature | 0 to 50 °C |
| Approval | RCM mark |
| Nominal altitude of use | ≤ 2000 m NHN |
| Type of mounting | With through-hole |
| Housing colour | Black |
| Material housing | PA |
| Note on materials | RoHS compliant |
| Type | VAEM-V-S8EPRS2 |
| Festo part number | 8088772 |
| Weight (price list) | 155 g |
| Weight | 0.155 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAEM-V-S8EPRS2 |
| EAN | 4052568555696 |
| Zolltarifnummer | 85371091 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Housing material | PA |
| Operating voltage | 24 V DC |
| Protection rating | IP20 |
| Temperature (max.) | 50 |
