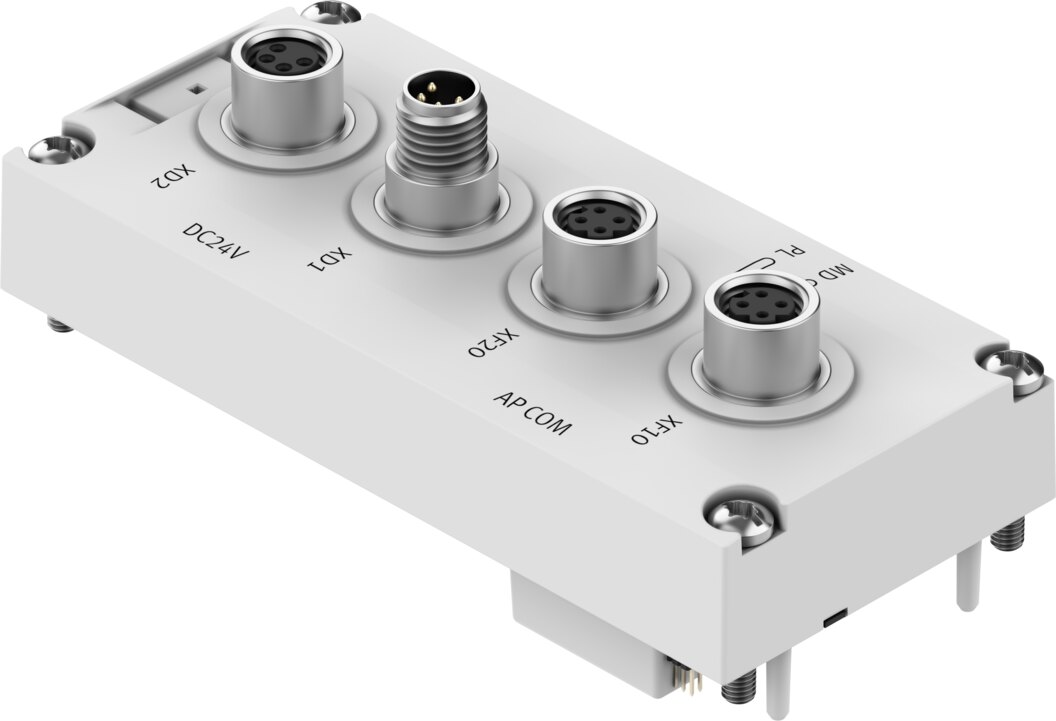

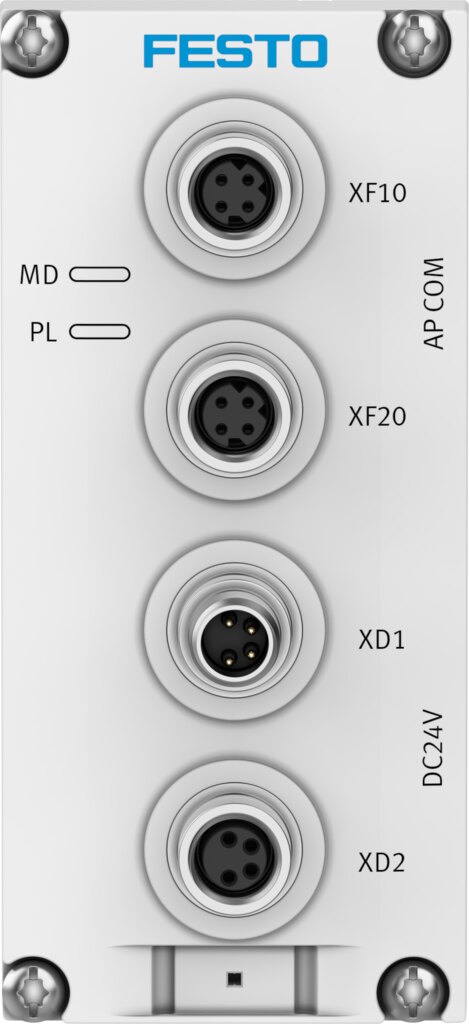

Electrical interface 48 valve coils VAEM-L1-S-24-AP - Festo 8081923
With the electrical interface VAEM-L1-S-24-AP, the valve terminal gets its electrical connection to the controller. Up to 48 valve coils, degree of protection IP65, IP67, ambient temperature -5 to 60 °C.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With the electrical interface VAEM-L1-S-24-AP, the valve terminal gets its electrical connection to the controller.
Benefits
- Up to 48 valve coils
- Degree of protection IP65, IP67
- Ambient temperature -5 to 60 °C
- Corrosion resistance class CRC 2 (moderate corrosion stress)
- Housing made of reinforced PA, RoHS compliant
Applications
Mounting of the VAEM-L1-S-24-AP: screw-clamped. CE marking to EU EMC Directive. Approval: RCM mark, c UL us - Recognized (OL).
Technical data
| Feature | Value |
|---|---|
| Dimensions (W x L x H) | 42 mm x 91 mm x 30 mm |
| Position of connection | On top |
| Diagnostics via LED | Diagnostics per module, Load power supply |
| Diagnostics per internal communication | Electronics/sensors overvoltage, Load overvoltage, Electronics/sensors undervoltage, Load undervoltage |
| Maximum number of valve positions | 24 |
| Maximum number of valve coils | 48 |
| Reverse polarity protection | Yes |
| Module parameters | Configuration of voltage monitoring load supply PL, Behaviour in error state |
| Fuse protection (short circuit) | Internal electronic fuse per channel |
| Intrinsic current consumption at nominal operating voltage for electronics/sensors | Typically 34 mA |
| Intrinsic current consumption at nominal operating voltage load | Typically 22 mA |
| Nominal DC operating voltage, electronics/sensors | 24 V |
| Nominal operating voltage DC of load | 24 V |
| Power failure bridging | 10 ms |
| Power failure buffering of load | 3 ms |
| Permissible voltage fluctuations for electronics/sensors | ± 25 % |
| Permissible voltage fluctuation of load | ± 10 % |
| Maximum power supply | 2 x 4 A (external fuse required) |
| Power supply, function | Incoming electronics/sensors and load |
| Power supply, connection type | Plug |
| Power supply, connection system | M8x1, A-coded to EN 61076-2-104 |
| Power supply, number of pins/wires | 4 |
| Power transmission, function | Outgoing electronics/sensors and load |
| Power transmission, connection type | Socket |
| Power transmission, connection technology | M8x1, A-coded to EN 61076-2-104 |
| Power transmission, number of pins/wires | 4 |
| Communication interface, connection type | 2x socket |
| Communication interface, connection technology | M8x1, D-coded according to EN 61076-2-114 |
| Communication interface, number of pins/cores | 4 |
| Communication interface, function | System communication XF10 IN / XF20 OUT |
| Communication interface, protocol | AP-COM |
| Communication interface, screened | Yes |
| CE mark (see declaration of conformity) | To EU EMC Directive |
| UKCA marking (see declaration of conformity) | To UK instructions for EMC |
| KC mark | KC-EMV |
| Maximum cable length | 50 m system communication |
| Corrosion resistance class CRC | 2 - moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Storage temperature | -20 to 60 °C |
| Relative air humidity | 5 - 95%, Non-condensing |
| Protection against direct and indirect contact | PELV, Safety extra-low voltage |
| Note regarding operating voltage | SELV/PELV fixed power supplies required, Note the voltage drop |
| Degree of protection | IP65, IP67 |
| Note on degree of protection | In mounted state, Unused connections sealed |
| Ambient temperature | -5 to 60 °C |
| Approval | RCM mark, c UL us - Recognized (OL) |
| Nominal altitude of use | ≤ 2000 m NHN |
| Type of mounting | Screw-clamped |
| Material housing | Reinforced PA |
| Material threaded sleeve | Nickel-plated brass |
| Note on materials | RoHS compliant |
| Type | VAEM-L1-S-24-AP |
| Festo part number | 8081923 |
| Weight (price list) | 110 g |
| Weight | 0.11 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VAEM-L1-S-24-AP |
| EAN | 4052568300562 |
| Zolltarifnummer | 85389099 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Protection rating | IP65 |
| Temperature (max.) | 60 |
