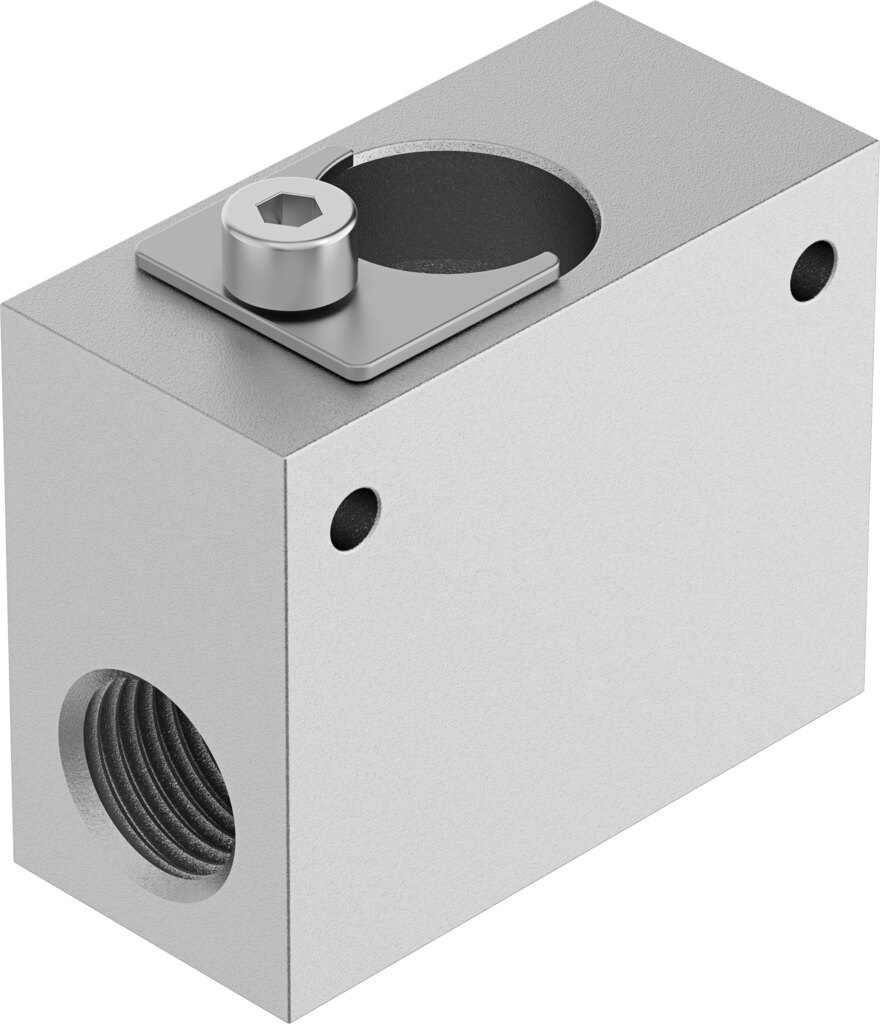

Manifold block G1/4, 21 mm width VABS-P4-10S-G14 - Festo 8087327
The manifold block VABS-P4-10S-G14 provides the pneumatic ports for the valve. Ports 1 and 2 in G1/4, operating pressure 0 to 10 bar. Material: anodised wrought aluminium alloy, CRC 2, RoHS compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The Festo manifold block VABS-P4-10S-G14 provides the pneumatic ports for the valve. The VABS-P4-10S-G14 provides ports 1 and 2 in G1/4. Permitted operating pressure 0 to 10 bar. Material sub-base of the VABS-P4-10S-G14: anodised wrought aluminium alloy, corrosion resistance class 2.
Benefits
- Width: 21 mm
- Port thread: G1/4 for supply and working port
- Pressure range: 0 to 10 bar
- Material: Anodised wrought aluminium alloy, CRC 2
- PWIS-free: VDMA 24364 zone III
Applications
The VABS-P4-10S-G14 is mounted with through-hole, any mounting position. Operating medium: inert gas, air, lubricated operation not possible, maximum particle size 10 µm. Ambient and medium temperature 5 to 50 °C each. Design: connection direction on the side.
Technical data
| Type | VABS-P4-10S-G14 |
|---|---|
| Festo part number | 8087327 |
| Width | 21 mm |
| Mounting position | Any |
| Design | Connection direction on the side |
| Max. number of valve positions | 1 |
| Operating pressure | 0 to 10 bar |
| Operating medium | Inert gas, air |
| Note on operating and pilot medium | Lubricated operation not possible, maximum particle size 10 µm |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -40 to 80 °C |
| Medium temperature | 5 to 50 °C |
| Ambient temperature | 5 to 50 °C |
| Product weight | 70 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | G1/4 |
| Pneumatic connection, port 2 | G1/4 |
| Note on materials | RoHS compliant |
| Material sub-base | Anodised wrought aluminium alloy |
| Weight | 0.075 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABS-P4-10S-G14 |
| EAN | 4052568457907 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/4 |
| Series | VABS |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/4 |
| Temperature (max.) | 50 |
