Sub-base 1/4-28 UNF-2B, PEEK VABS-K2-12S-20-U14-P - Festo 8140320

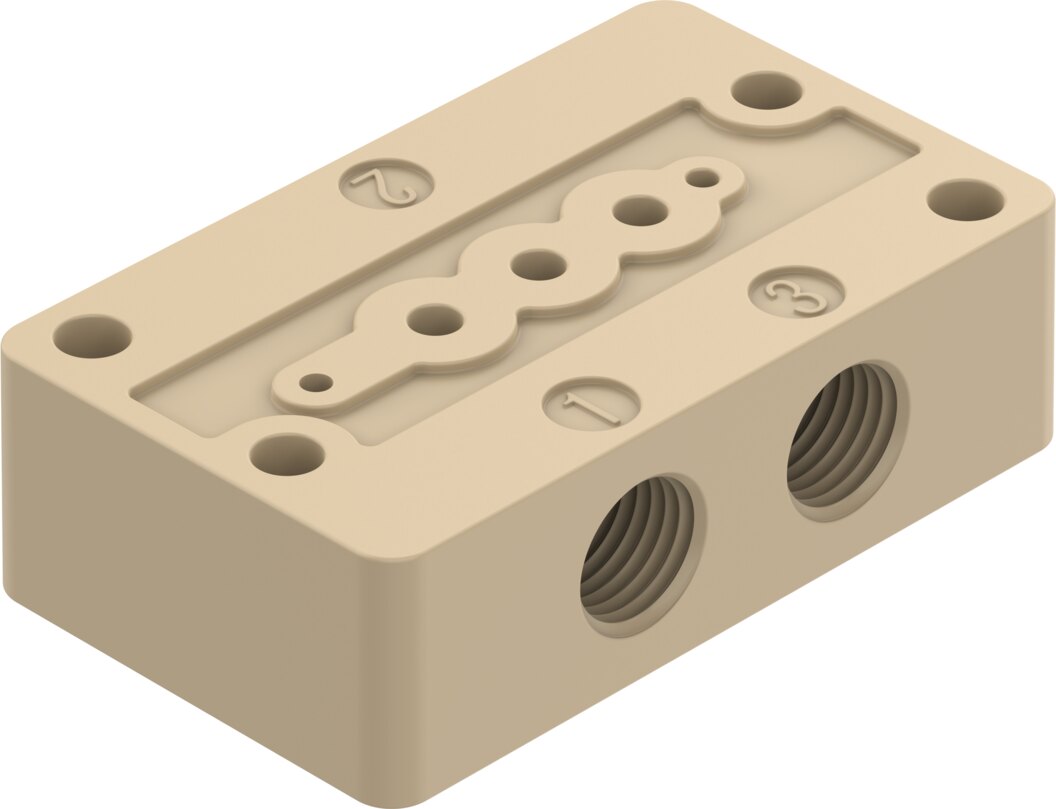

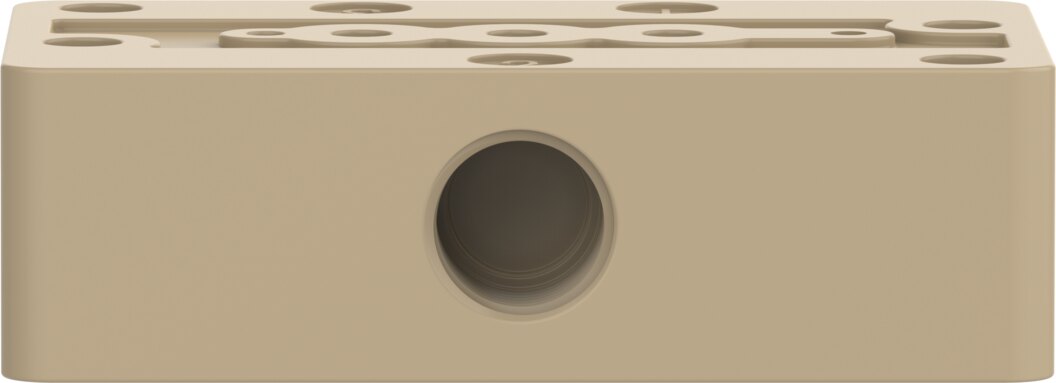

The sub-base VABS-K2-12S-20-U14-P carries a valve and provides its pneumatic ports. Size 12, tightening torque 0.33 Nm. Material: PEEK, CRC 0, RoHS compliant.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
The sub-base VABS-K2-12S-20-U14-P carries a valve and provides its pneumatic ports. Fluid connection: female thread 1/4-28 UNF-2B. The VABS-K2-12S-20-U14-P is made of PEEK. Corrosion resistance class 0. Size 12.
Benefits
- Port thread: 1/4-28 UNF-2B
- Tightening torque: 0.33 Nm
- Material: PEEK, CRC 0
- PWIS-free: VDMA 24364 zone III
Applications
The VABS-K2-12S-20-U14-P is mounted with through-hole, any mounting position. The valve is attached with female thread. Tightening torques: valve mounting max. 0.33 Nm and max. tightening torque 0.6 Nm. Operating medium: liquid and gaseous media, observe resistance of materials that come into contact with the media. Ambient and medium temperature 0 to 50 °C each. Design: connection direction on the side.
Technical data
| Type | VABS-K2-12S-20-U14-P |
|---|---|
| Festo part number | 8140320 |
| Size | 12 |
| Nominal size | 2 mm |
| Fluid connection | Female thread 1/4-28 UNF-2B |
| Mounting position | Any |
| Design | Connection direction on the side |
| Max. number of valve positions | 1 |
| Flow direction | Non-reversible |
| Operating medium | Liquid media, gaseous media |
| Note on operating and pilot medium | Observe resistance of materials that come into contact with the media |
| Corrosion resistance class CRC | 0 - No corrosion stress |
| LABS (PWIS) conformity | VDMA24364 zone III |
| Storage temperature | -20 to 70 °C |
| Medium temperature | 0 to 50 °C |
| Ambient temperature | 0 to 50 °C |
| Max. tightening torque for valve mounting | 0.33 Nm |
| Max. tightening torque | 0.6 Nm |
| Product weight | 8 g |
| Mounting type sub-base | With through-hole |
| Mounting type valve | With female thread |
| Note on materials | RoHS compliant |
| Material sub-base | PEEK |
| Weight | 0.012 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABS-K2-12S-20-U14-P |
| EAN | 4052568567484 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Nominal size DN [mm] | 2 |
| Series | VABS |
| Temperaturbereich | 0-50 °C |
| Temperature (max.) | 50 |
