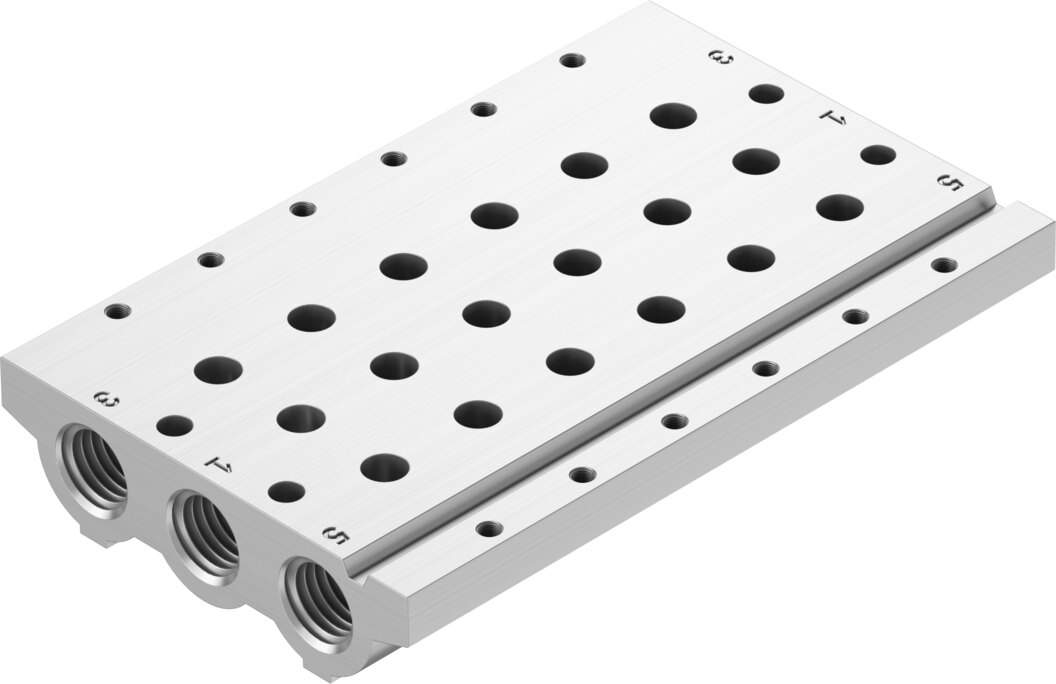

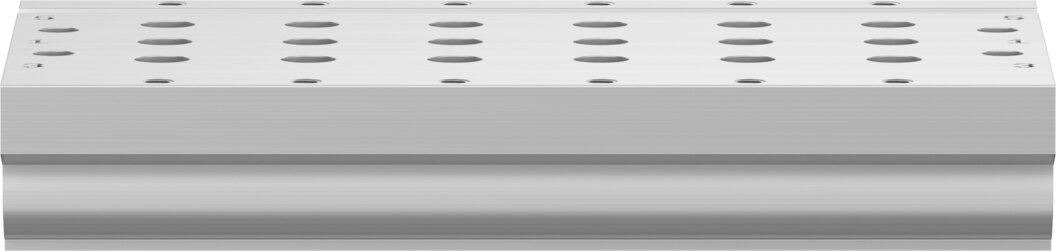

Manifold rail 16 mm grid, G1/4 VABM-L1-14S-G14-6 - Festo 566622

Festo ✓ Original product Brand new

For valve groups on a 16 mm grid: supply and exhaust run jointly through the manifold rail. Supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4, operating pressure -0.9 to 10 bar. Type VABM-L1-14S-G14-6 in wrought aluminium alloy, CRC 2.

Net
€87.84
excl. VAT
Item FES-566622
Manufacturer no. VABM-L1-14S-G14-6
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold rail VABM-L1-14S-G14-6 with a 16 mm grid combines several valves into one group with a shared supply. Lines connect via supply port 1 in G1/4 and exhaust ports 3 and 5 in G1/4. It operates at -0.9 to 10 bar. The VABM-L1-14S-G14-6 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Grid: 16 mm between valve positions
  • Supply: Port 1 in G1/4, exhaust in G1/4
  • Pressure range: -0.9 to 10 bar, vacuum included
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L
  • Cleanroom: class 5 to ISO 14644-1

Applications

Tightening torques: valve mounting max. 0.65 Nm, wall mounting max. 3 Nm and H-rail mounting max. 1.5 Nm. The range from -0.9 bar also allows operation with vacuum. Cleanroom class 5 to ISO 14644-1 and reduced Cu/Zn/Ni values (F1a) qualify the VABM-L1-14S-G14-6 for Li-ion battery production.

Technical data

TypeVABM-L1-14S-G14-6
Festo part number566622
Grid dimension16 mm
Maximum number of valve positions16
Operating pressure-0.9 to 10 bar
ApprovalRCM mark, c UL us - Recognized (OL)
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Suitability for the production of Li-ion batteriesSuitable for battery production with reduced Cu/Zn/Ni values (F1a)
Cleanroom suitability, measured according to ISO 14644-14Class 5 according to ISO 14644-1
Maximum tightening torque for H-rail mounting1.5 Nm
Maximum tightening torque for valve mounting0.65 Nm
Maximum tightening torque for wall mounting3 Nm
Product weight282 g
Pneumatic connection, port 1G1/4
Pneumatic connection, port 3G1/4
Pneumatic connection, port 5G1/4
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-L1-14S-G14-6
EAN4052568214531
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/4
DesignManifold terminal strip
SeriesVABM
Betriebsdruck max [bar]10
Pneumatic connectionG1/4
