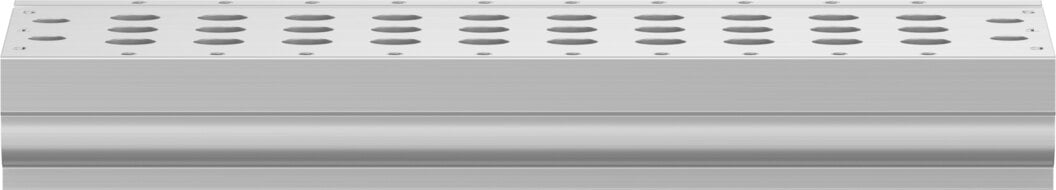

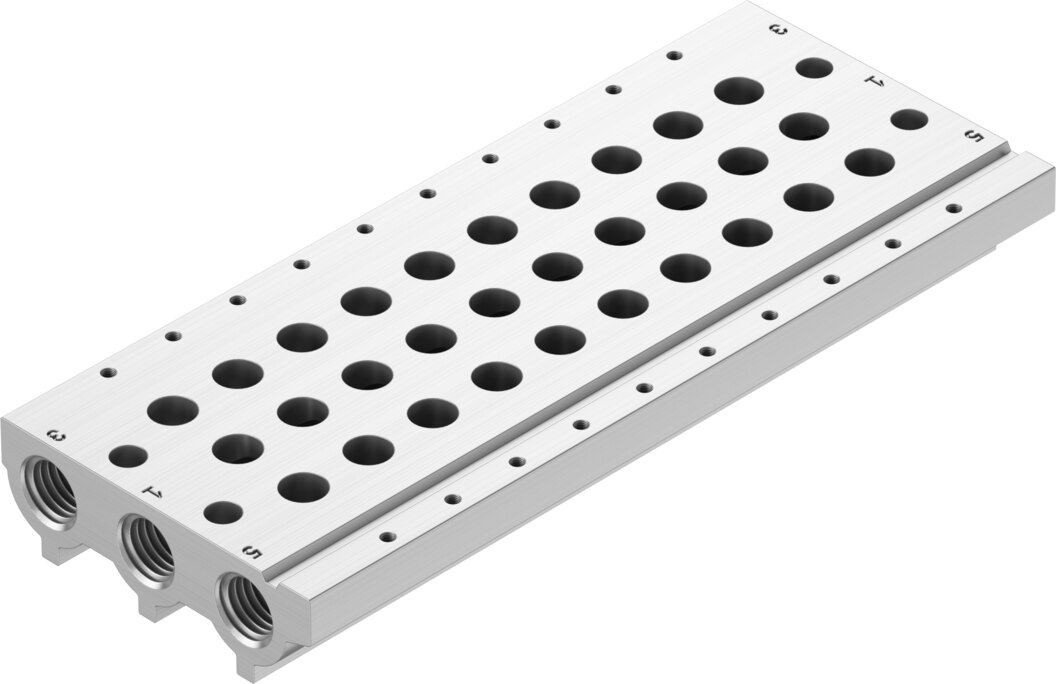

Manifold rail 10.5 mm grid, G1/8 VABM-L1-10S-G18-9 - Festo 566565
For valve groups on a 10.5 mm grid: supply and exhaust run jointly through the manifold rail. Supply port 1 in G1/8 and exhaust port 3 in G1/8, operating pressure -0.9 to 10 bar. Type VABM-L1-10S-G18-9 in wrought aluminium alloy, CRC 2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
10.5 mm grid: on the manifold rail VABM-L1-10S-G18-9 the valves sit in one row and share the supply. Lines connect via supply port 1 in G1/8 and exhaust port 3 in G1/8. Permitted operating pressure -0.9 to 10 bar, the vacuum range included. The VABM-L1-10S-G18-9 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.
Benefits
- Grid: 10.5 mm between valve positions
- Supply: Port 1 in G1/8, exhaust in G1/8
- Pressure range: -0.9 to 10 bar, vacuum included
- Material: Wrought aluminium alloy, CRC 2
- PWIS-free: VDMA 24364-B1/B2-L
- Cleanroom: class 5 to ISO 14644-1
Applications
Tightening torques: valve mounting max. 0.45 Nm, wall mounting max. 3 Nm and H-rail mounting max. 1.5 Nm. The range from -0.9 bar also allows operation with vacuum. Cleanroom class 5 to ISO 14644-1 and reduced Cu/Zn/Ni values (F1a) qualify the VABM-L1-10S-G18-9 for Li-ion battery production.
Technical data
| Type | VABM-L1-10S-G18-9 |
|---|---|
| Festo part number | 566565 |
| Grid dimension | 10.5 mm |
| Maximum number of valve positions | 16 |
| Operating pressure | -0.9 to 10 bar |
| Approval | RCM mark, c UL us - Recognized (OL) |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Suitability for the production of Li-ion batteries | Suitable for battery production with reduced Cu/Zn/Ni values (F1a) |
| Cleanroom suitability, measured according to ISO 14644-14 | Class 5 according to ISO 14644-1 |
| Maximum tightening torque for H-rail mounting | 1.5 Nm |
| Maximum tightening torque for valve mounting | 0.45 Nm |
| Maximum tightening torque for wall mounting | 3 Nm |
| Product weight | 171 g |
| Pneumatic connection, port 1 | G1/8 |
| Pneumatic connection, port 3 | G1/8 |
| Note on materials | RoHS compliant |
| Material manifold rail | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VABM-L1-10S-G18-9 |
| EAN | 4052568214319 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | G 1/8 |
| Design | Manifold terminal strip |
| Series | VABM |
| Betriebsdruck max [bar] | 10 |
| Pneumatic connection | G1/8 |
