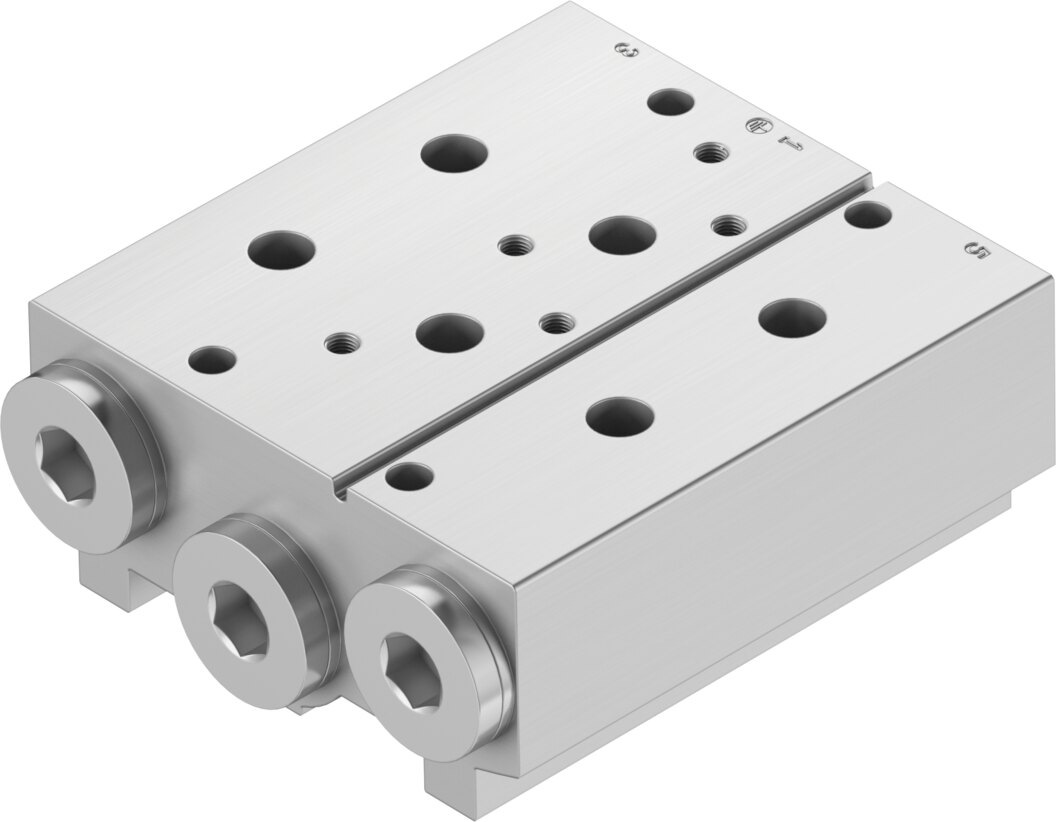

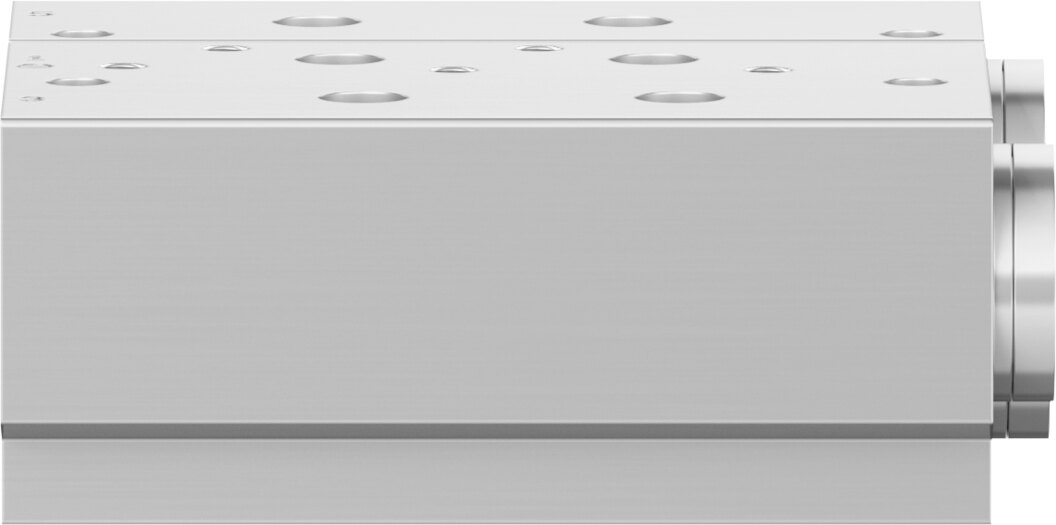

Manifold block for 2 valves, 32 mm grid, G1/2 VABM-B10-30S-G12-2 - Festo 8026377

Festo ✓ Original product Brand new

Groups 2 valves on a 32 mm grid with one shared compressed-air supply. Supply port 1 in G1/2 and exhaust ports 3 and 5 in G1/2. Type VABM-B10-30S-G12-2 in wrought aluminium alloy, CRC 2.

Net
€92.77
excl. VAT
Item FES-8026377
Manufacturer no. VABM-B10-30S-G12-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The manifold block VABM-B10-30S-G12-2 carries 2 valves on a 32 mm grid and supplies them with compressed air from one source. Ports: supply port 1 in G1/2 and exhaust ports 3 and 5 in G1/2. The VABM-B10-30S-G12-2 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Valve positions: 2 positions on a 32 mm grid
  • Supply: Port 1 in G1/2, exhaust in G1/2
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

The VABM-B10-30S-G12-2 is mounted with through-hole, in any position.

Technical data

TypeVABM-B10-30S-G12-2
Festo part number8026377
Grid dimension32 mm
Mounting positionAny
Maximum number of valve positions2
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight759 g
Type of mountingWith through-hole
Pneumatic connection, port 1G1/2
Pneumatic connection, port 3G1/2
Pneumatic connection, port 5G1/2
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-30S-G12-2
EAN4052568279981
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 1/2
Anzahl Stationen [Stk]2
SeriesVABM
Pneumatic connectionG1/2
