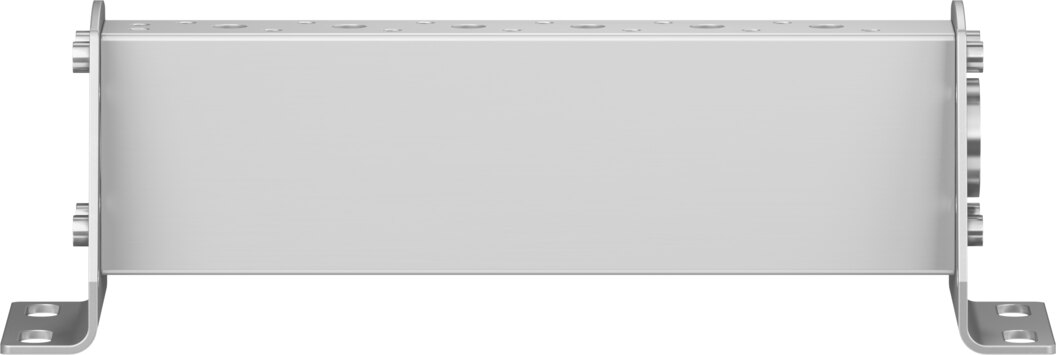

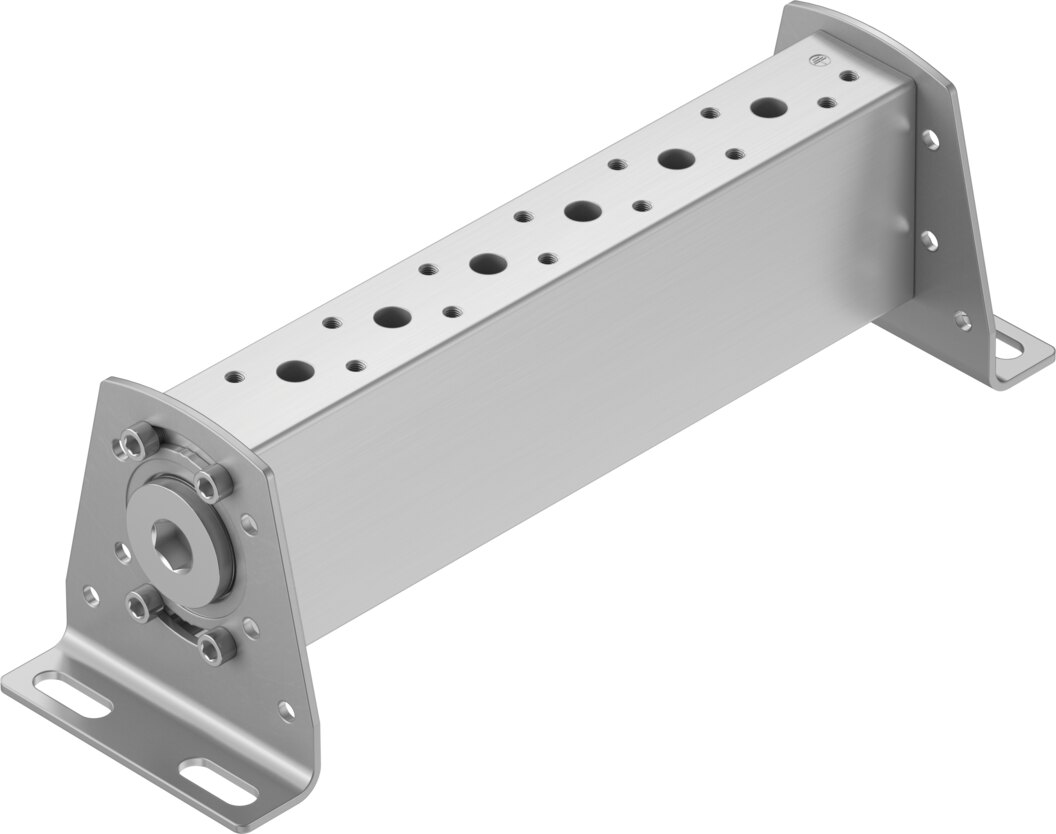

Common supply manifold for 6 valves, 32 mm grid, 3/4 NPT VABM-B10-30-N34-6-P53 - Festo 8026351
6 valve positions on a 32 mm grid save individual tubing, the supply runs centrally through the rail. Supply port 1 in 3/4 NPT. Type VABM-B10-30-N34-6-P53 in wrought aluminium alloy, CRC 2.
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Description
With 6 valve positions on a 32 mm grid, the common supply manifold VABM-B10-30-N34-6-P53 forms the base of a compact valve group. Lines connect via supply port 1 in 3/4 NPT. The body of the VABM-B10-30-N34-6-P53 is made of wrought aluminium alloy (CRC 2).
Benefits
- Valve positions: 6 positions on a 32 mm grid
- Supply: Port 1 in 3/4 NPT
- Material: Wrought aluminium alloy, CRC 2
- PWIS-free: VDMA 24364-B1/B2-L
Applications
Type of mounting: with mounting bracket, any mounting position.
Technical data
| Type | VABM-B10-30-N34-6-P53 |
|---|---|
| Festo part number | 8026351 |
| Grid dimension | 32 mm |
| Mounting position | Any |
| Maximum number of valve positions | 6 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 1452 g |
| Type of mounting | With mounting bracket |
| Pneumatic connection, port 1 | 3/4 NPT |
| Note on materials | RoHS compliant |
| Material manifold rail | Wrought aluminium alloy |
| Manufacturer | Festo |
| Hersteller-Nr | VABM-B10-30-N34-6-P53 |
| EAN | 4052568427801 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
| Thread | NPT 3/4 |
| Anzahl Stationen [Stk] | 6 |
| Series | VABM |
| Pneumatic connection | NPT 3/4 |
