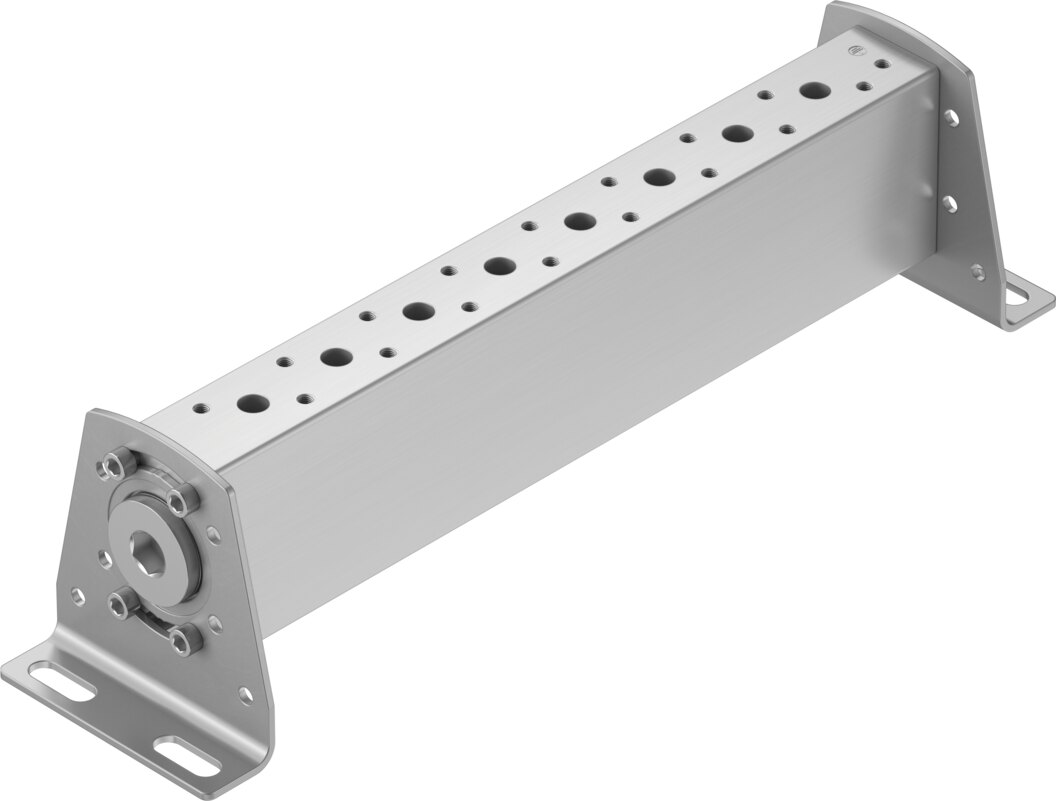

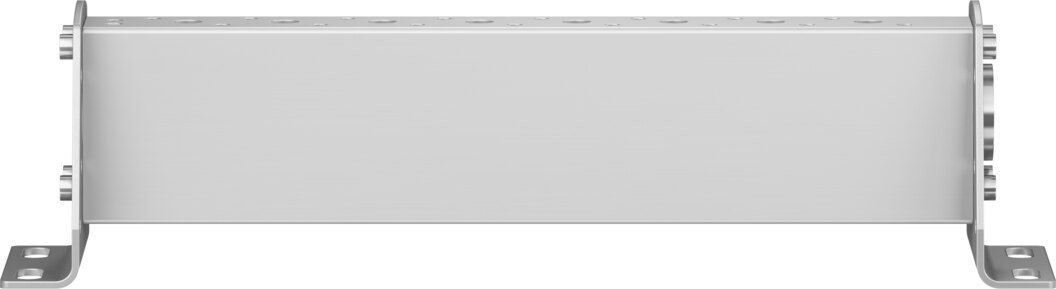

Common supply manifold for 8 valves, 32 mm grid, G3/4 VABM-B10-30-G34-8-P53 - Festo 8026344

Festo ✓ Original product Brand new

Groups 8 valves on a 32 mm grid with one shared compressed-air supply. Supply port 1 in G3/4. Type VABM-B10-30-G34-8-P53 in wrought aluminium alloy, CRC 2.

Net
€113.80
excl. VAT
Item FES-8026344
Manufacturer no. VABM-B10-30-G34-8-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

The common supply manifold VABM-B10-30-G34-8-P53 carries 8 valves on a 32 mm grid and supplies them with compressed air from one source. Ports: supply port 1 in G3/4. Wrought aluminium alloy, CRC 2 and PWIS conformity to VDMA 24364-B1/B2-L characterise the VABM-B10-30-G34-8-P53.

Benefits

  • Valve positions: 8 positions on a 32 mm grid
  • Supply: Port 1 in G3/4
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with mounting bracket, any mounting position.

Technical data

TypeVABM-B10-30-G34-8-P53
Festo part number8026344
Grid dimension32 mm
Mounting positionAny
Maximum number of valve positions8
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight1768 g
Type of mountingWith mounting bracket
Pneumatic connection, port 1G3/4
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-30-G34-8-P53
EAN4052568279837
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/4
Anzahl Stationen [Stk]8
SeriesVABM
Pneumatic connectionG3/4
