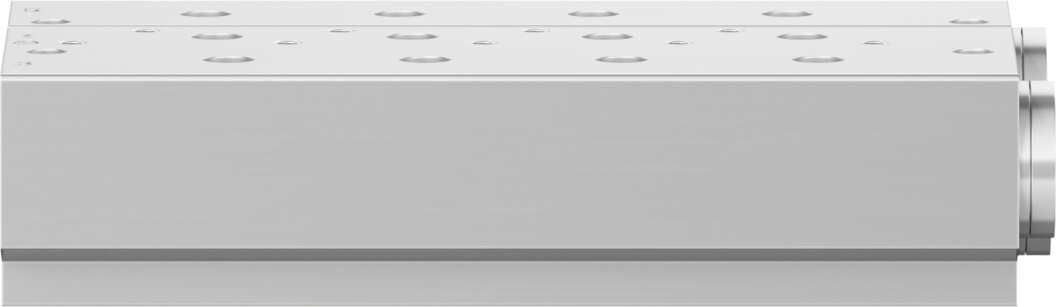

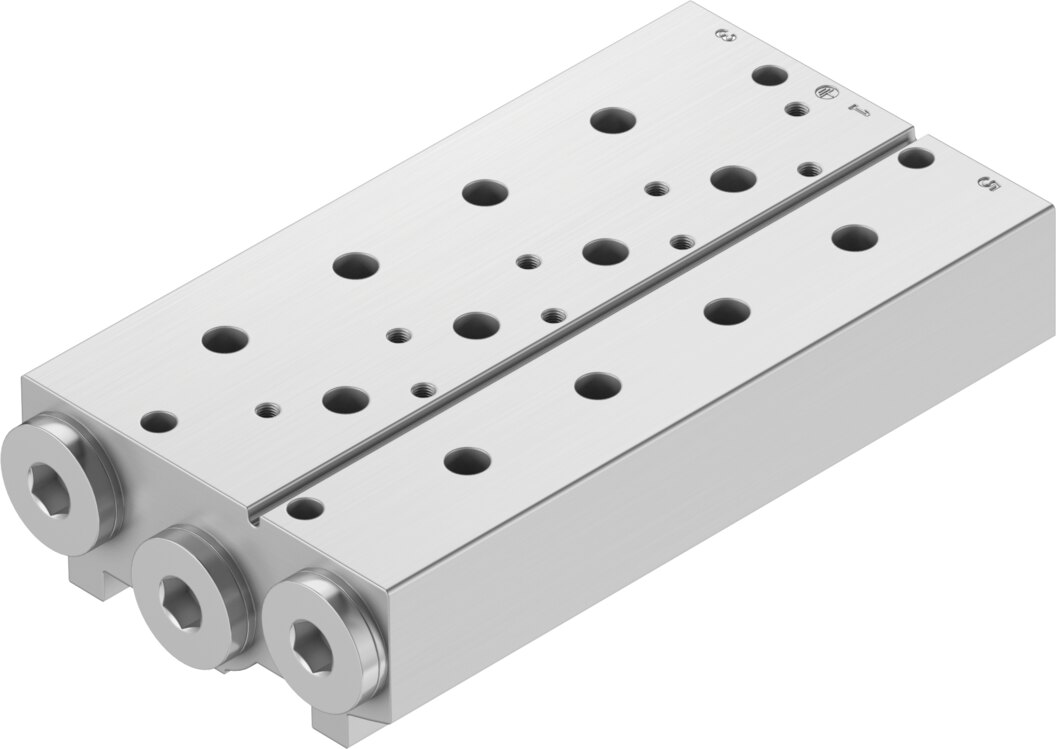

Manifold block for 4 valves, 27.5 mm grid, G3/8 VABM-B10-25S-G38-4 - Festo 8026263

Festo ✓ Original product Brand new

4 valve positions on a 27.5 mm grid save individual tubing, the supply runs centrally through the block. Supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. Type VABM-B10-25S-G38-4 in wrought aluminium alloy, CRC 2.

Net
€75.15
excl. VAT
Item FES-8026263
Manufacturer no. VABM-B10-25S-G38-4
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 4 valve positions on a 27.5 mm grid, the manifold block VABM-B10-25S-G38-4 forms the base of a compact valve group. Ports: supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. The VABM-B10-25S-G38-4 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Valve positions: 4 positions on a 27.5 mm grid
  • Supply: Port 1 in G3/8, exhaust in G3/8
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

The VABM-B10-25S-G38-4 is mounted with through-hole, in any position.

Technical data

TypeVABM-B10-25S-G38-4
Festo part number8026263
Grid dimension27.5 mm
Mounting positionAny
Maximum number of valve positions4
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight720 g
Type of mountingWith through-hole
Pneumatic connection, port 1G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)1 kg
ManufacturerFesto
Hersteller-NrVABM-B10-25S-G38-4
EAN4052568279431
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Anzahl Stationen [Stk]4
SeriesVABM
Pneumatic connectionG3/8
