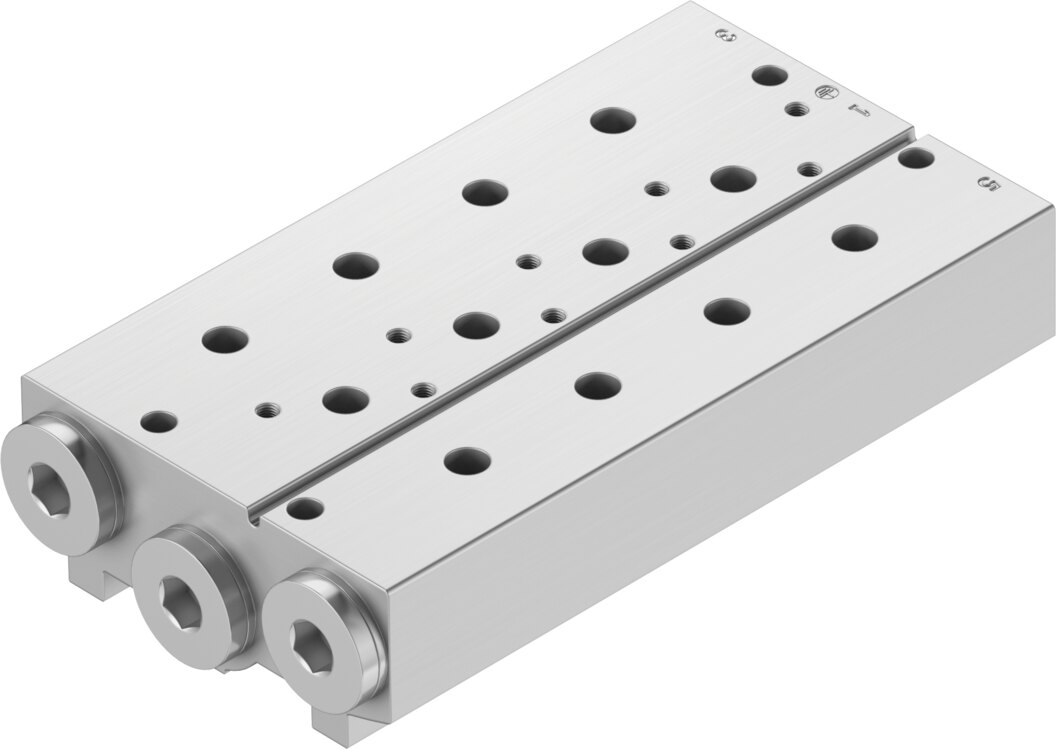

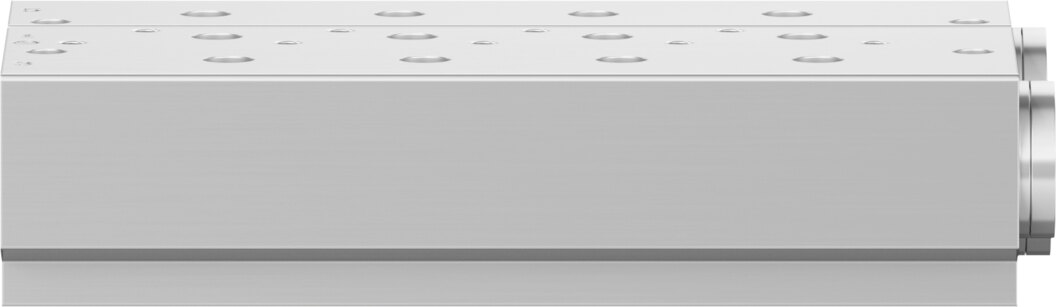

Manifold block for 3 valves, 27.5 mm grid, G3/8 VABM-B10-25S-G38-3 - Festo 8026262

Festo ✓ Original product Brand new

Groups 3 valves on a 27.5 mm grid with one shared compressed-air supply. Supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. Type VABM-B10-25S-G38-3 in wrought aluminium alloy, CRC 2.

Net
€64.10
excl. VAT
Item FES-8026262
Manufacturer no. VABM-B10-25S-G38-3
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

A manifold block for 3 valves on a 27.5 mm grid: the VABM-B10-25S-G38-3 combines the valves into one group with a shared supply. Lines connect via supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. The VABM-B10-25S-G38-3 is made of wrought aluminium alloy, corrosion resistance class 2, VDMA 24364-B1/B2-L.

Benefits

  • Valve positions: 3 positions on a 27.5 mm grid
  • Supply: Port 1 in G3/8, exhaust in G3/8
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with through-hole, any mounting position.

Technical data

TypeVABM-B10-25S-G38-3
Festo part number8026262
Grid dimension27.5 mm
Mounting positionAny
Maximum number of valve positions3
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight579 g
Type of mountingWith through-hole
Pneumatic connection, port 1G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-25S-G38-3
EAN4052568279424
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Anzahl Stationen [Stk]3
SeriesVABM
Pneumatic connectionG3/8
