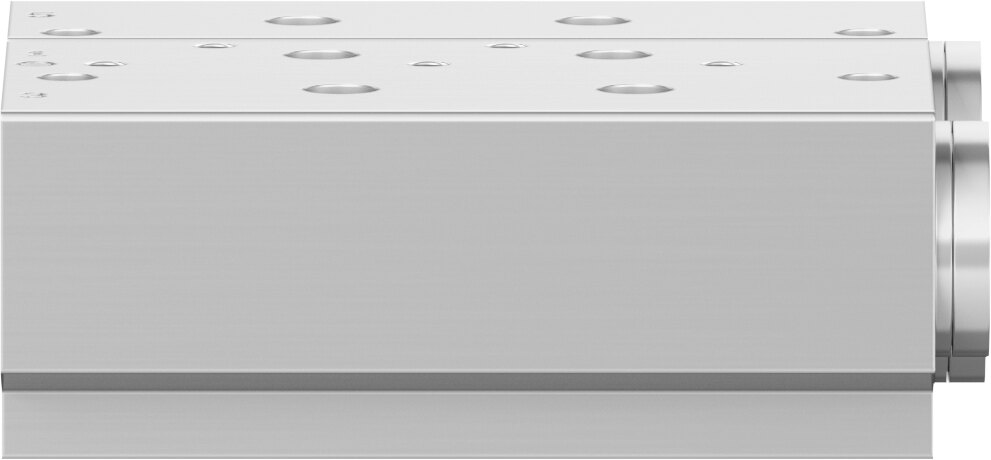

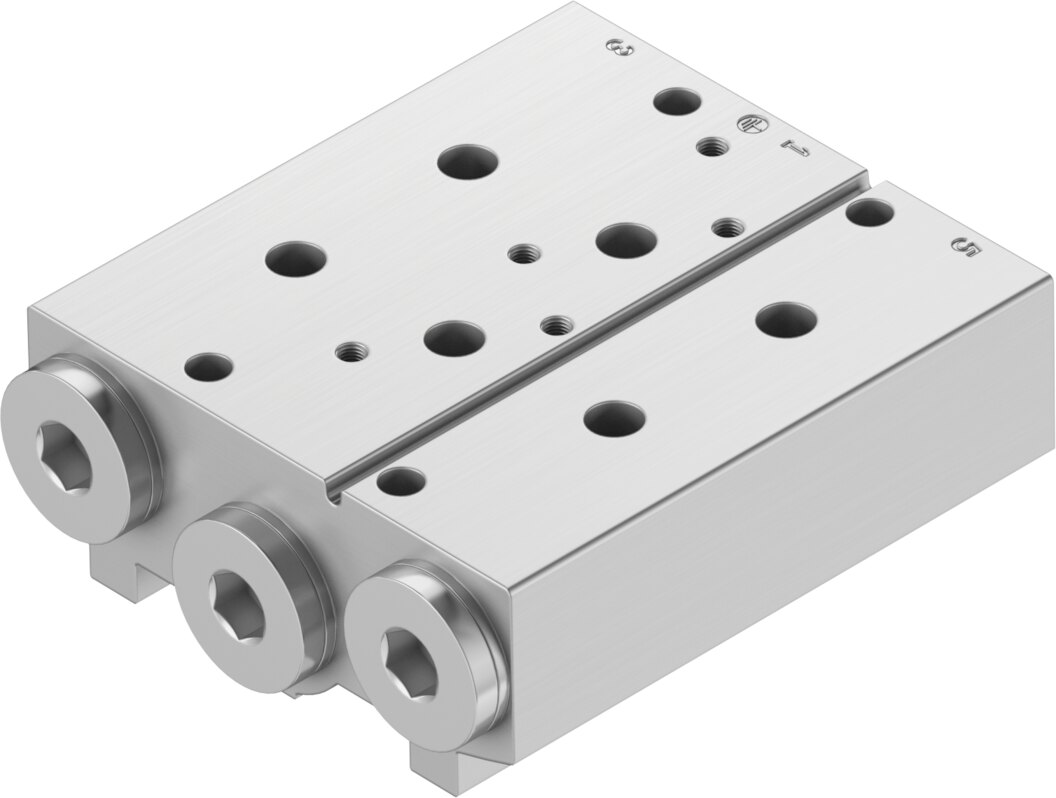

Manifold block for 2 valves, 27.5 mm grid, G3/8 VABM-B10-25S-G38-2 - Festo 8026261

Festo ✓ Original product Brand new

Groups 2 valves on a 27.5 mm grid with one shared compressed-air supply. Supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. Type VABM-B10-25S-G38-2 in wrought aluminium alloy, CRC 2.

Net
€53.06
excl. VAT
Item FES-8026261
Manufacturer no. VABM-B10-25S-G38-2
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 2 valve positions on a 27.5 mm grid, the manifold block VABM-B10-25S-G38-2 forms the base of a compact valve group. Lines connect via supply port 1 in G3/8 and exhaust ports 3 and 5 in G3/8. Wrought aluminium alloy, CRC 2 and PWIS conformity to VDMA 24364-B1/B2-L characterise the VABM-B10-25S-G38-2.

Benefits

  • Valve positions: 2 positions on a 27.5 mm grid
  • Supply: Port 1 in G3/8, exhaust in G3/8
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with through-hole, any mounting position.

Technical data

TypeVABM-B10-25S-G38-2
Festo part number8026261
Grid dimension27.5 mm
Mounting positionAny
Maximum number of valve positions2
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight438 g
Type of mountingWith through-hole
Pneumatic connection, port 1G3/8
Pneumatic connection, port 3G3/8
Pneumatic connection, port 5G3/8
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
ManufacturerFesto
Hersteller-NrVABM-B10-25S-G38-2
EAN4052568279417
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadG 3/8
Anzahl Stationen [Stk]2
SeriesVABM
Pneumatic connectionG3/8
