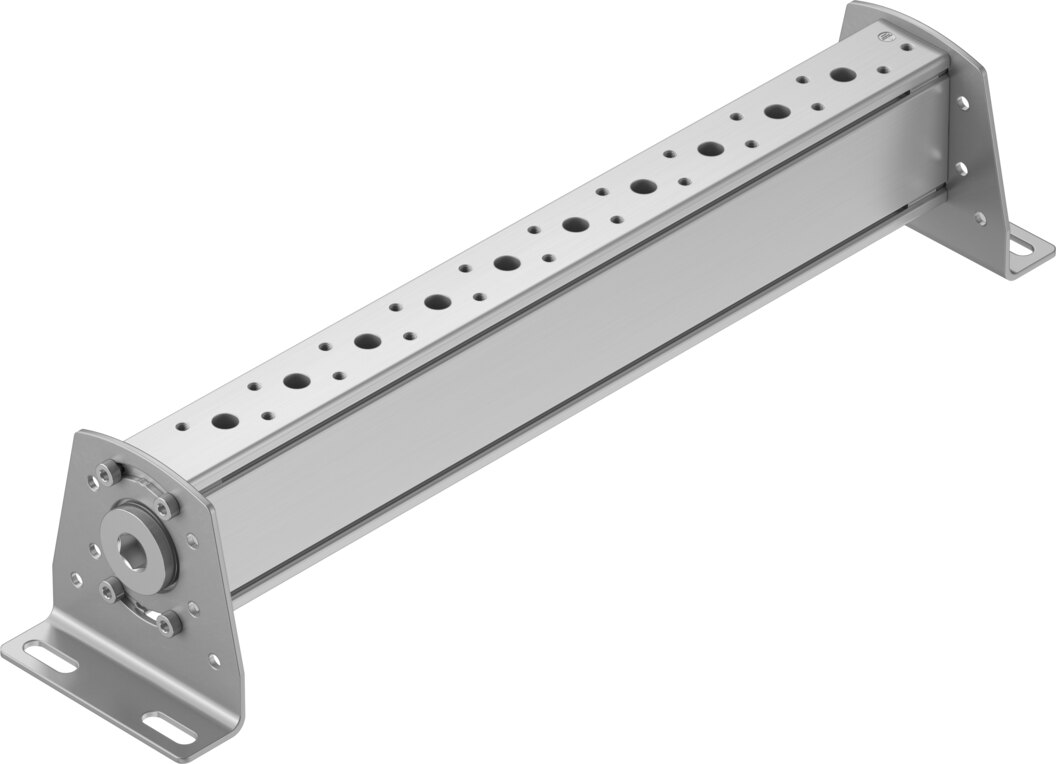

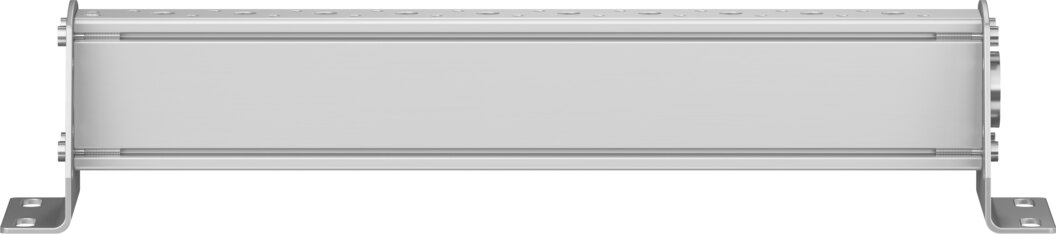

Common supply manifold for 10 valves, 27.5 mm grid, 1/2 NPT VABM-B10-25-N12-10-P53 - Festo 8026236

Festo ✓ Original product Brand new

Groups 10 valves on a 27.5 mm grid with one shared compressed-air supply. Supply port 1 in 1/2 NPT. Type VABM-B10-25-N12-10-P53 in wrought aluminium alloy, CRC 2.

Net
€98.21
excl. VAT
Item FES-8026236
Manufacturer no. VABM-B10-25-N12-10-P53
Question about this item
  • Specialist dealer since 2009
  • Invoice payment for regular customers
  • Worldwide shipping
  • Technical questions clarified with the manufacturer

Description

With 10 valve positions on a 27.5 mm grid, the common supply manifold VABM-B10-25-N12-10-P53 forms the base of a compact valve group. Pneumatic layout: supply port 1 in 1/2 NPT. Wrought aluminium alloy, CRC 2 and PWIS conformity to VDMA 24364-B1/B2-L characterise the VABM-B10-25-N12-10-P53.

Benefits

  • Valve positions: 10 positions on a 27.5 mm grid
  • Supply: Port 1 in 1/2 NPT
  • Material: Wrought aluminium alloy, CRC 2
  • PWIS-free: VDMA 24364-B1/B2-L

Applications

Type of mounting: with mounting bracket, any mounting position.

Technical data

TypeVABM-B10-25-N12-10-P53
Festo part number8026236
Grid dimension27.5 mm
Mounting positionAny
Maximum number of valve positions10
Corrosion resistance class CRC2 - Moderate corrosion stress
LABS (PWIS) conformityVDMA24364-B1/B2-L
Product weight914 g
Type of mountingWith mounting bracket
Pneumatic connection, port 11/2 NPT
Note on materialsRoHS compliant
Material manifold railWrought aluminium alloy
Weight (shipping)1.6 kg
Weight1.6 kg
ManufacturerFesto
Hersteller-NrVABM-B10-25-N12-10-P53
EAN4052568427399
Zolltarifnummer84819000
GPSR HerstellerdatenFesto Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com
ArtikelzustandNew
Artikel-AuthentizitätOriginal product
ThreadNPT 1/2
Anzahl Stationen [Stk]10
SeriesVABM
Pneumatic connectionNPT 1/2

Downloads

Questions about this item

Any other question?

Send us the item number and your question. We clarify technical details directly with the manufacturer and usually reply on the next working day.
