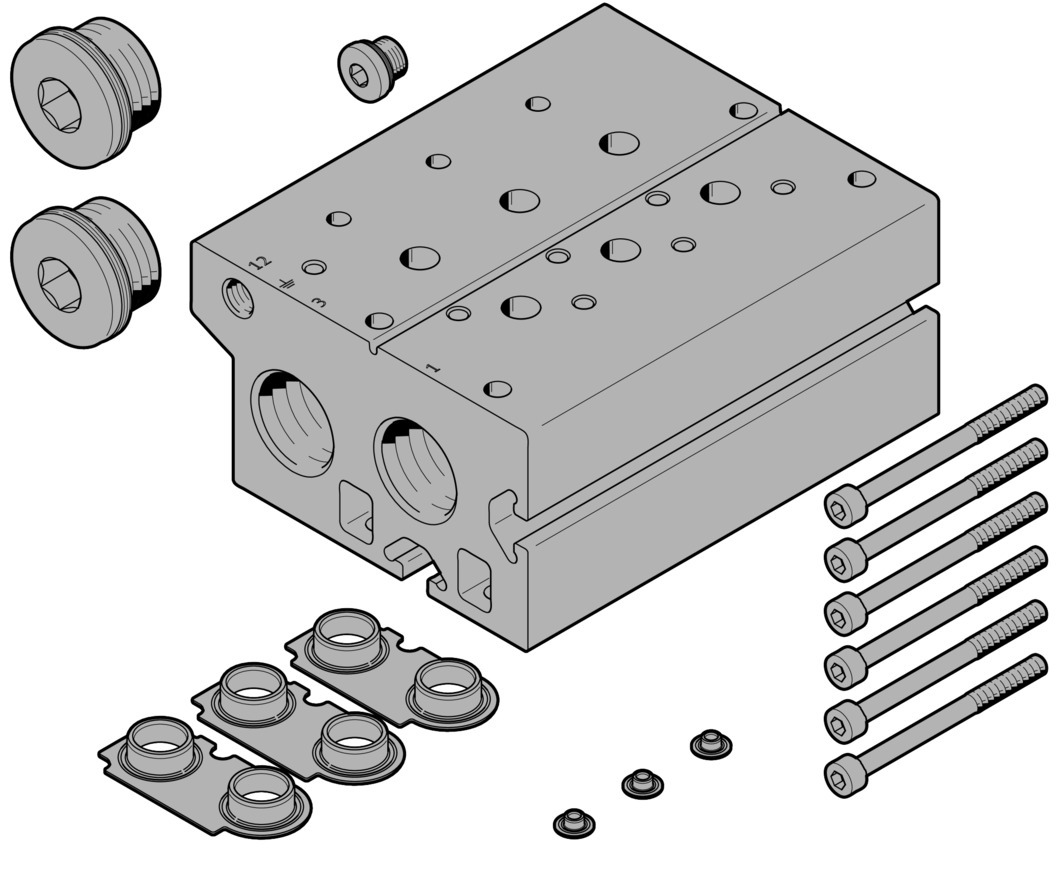

Manifold block VABM-B10-20S-N14-5 - Festo 576432
- Specialist dealer since 2009
- Invoice payment for regular customers
- Worldwide shipping
- Technical questions clarified with the manufacturer
Technical data
| Grid dimension | 22 mm |
|---|---|
| Mounting position | Any |
| Max. number of valve positions | 5 |
| Corrosion resistance class CRC | 2 - Moderate corrosion stress |
| LABS (PWIS) conformity | VDMA24364-B1/B2-L |
| Product weight | 630 g |
| Type of mounting | With through-hole |
| Pneumatic connection, port 1 | 1/4 NPT |
| Pneumatic connection, port 3 | 1/4 NPT |
| Pneumatic connection, port 5 | 1/4 NPT |
| Note on materials | RoHS compliant |
| Material manifold rail | Wrought aluminium alloy |
| Weight | 0.9 kg |
| Manufacturer | Festo |
| Hersteller-Nr | VABM-B10-20S-N14-5 |
| EAN | 4052568379872 |
| Zolltarifnummer | 84819000 |
| GPSR Herstellerdaten | Festo Vertrieb GmbH&Co. KG, Festo Campus 1, DE-73734 Esslingen, festo.com |
| Artikelzustand | New |
| Artikel-Authentizität | Original product |
